Product Details:
|
Display Device: | PC | Max. Stroke: | 650mm (include The Fixture) |
---|---|---|---|
Test Speed: | 20-300mm/min (adjusted By The Knob ) | Motor: | Panasonic Servo Motor |
Screw: | High Precise Ball Screw | Test Area Material: | SUS304 Stainless Steel |
Power: | 1∮, AC220V, 50HZ | Weight: | Approx.36kg |
Highlight: | universal test equipment,tensile strength tester |

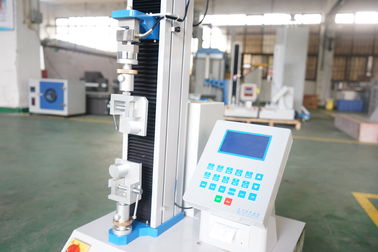

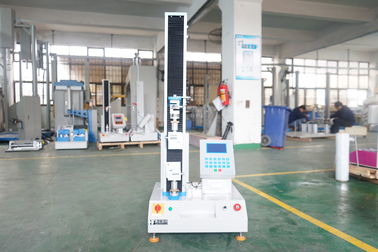

PC Universal Ball Screw Tensile Strength Testing Machine For Tear Resistance
Application
Pc Universal High Precise Ball Screw tear resistanceTensile Strength Testing Machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Technical Parameters
Items | Specification |
Sensor | Celtron load cell |
Capacity | 10,20,50,100,200kg |
Unit Switchover | G, KG, N, LB |
Display Device | PC and LCD |
Resolution | 1/250,000 |
Accuracy | ±0.5% |
Max. Stroke | 1000mm (including fixture) |
Test Speed | 0.1-500mm/min (adjustable ) |
Motor | Panasonic Servo Motor |
Screw | High Precise Ball Screw |
Elongation Accuracy | 0.001mm |
Power | 220V, 50HZ |
Weight | Approx.75kg |
Accessories | One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual |
Theory
place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltagsign and output to the display screen. And the strength value will be displayed automatically on the computer.
Application
Pc Universal High Precise Ball Screw tear resistanceTensile Strength Testing Machin is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,ectof specimen,
semiproduct and finished product in the field of rubber, plastic, metal, nylon,fabric, paper, aviation, packing, architecture,
petrochemistry, electric appliance, automobile,...etc. which are the basic facilities for input quality control (I.Q.C), Quality
Control (Q.C.), Physical Inspection,Mechanics Research and Material Development.
Features
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily.
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface
can be switched easily;
4. The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. High quality, accurate and reliable models with reasonable price.
