5151-HD Metal Separator with 600mm Detecting Width, 24m/min Conveying Speed, and 0.3mm Detection Sensitivity for Pharmaceuticals

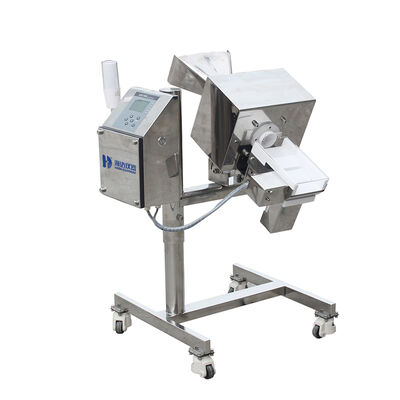

Large Image : 5151-HD Metal Separator with 600mm Detecting Width, 24m/min Conveying Speed, and 0.3mm Detection Sensitivity for Pharmaceuticals

Product Details:

Place of Origin:	china
Brand Name:	Haida
Certification:	ISO9001: 2008, CE, ...
Model Number:	5151-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Contact Now

5151-HD Metal Separator with 600mm Detecting Width, 24m/min Conveying Speed, and 0.3mm Detection Sensitivity for Pharmaceuticals

Description

Name::	Double Head Needle Metal Detector For Drugs & Toys	Feature:	Easy To Operate
Weight:	175Kg	Detecting Width:	600mm
Alarm Method:	Buzzer	Conveying Speed::	24m/min(50Hz),32m/min(60Hz)
Price:	Cheap	Rated Output:	100W
Conveyor Length:	1350mm	Sensitivity Adjust::	1~10 Level
Highlight:	600mm detecting width Metal Separator , 24m/min conveying speed Needle Metal Detector , 0.3mm detection sensitivity Pharmaceutical Metal Detector

5151-HD Metal Separator Equipment Details

Machine Production & Applications

The 5151-HD pharmaceutical metal separator is specifically engineered for pharmaceutical and health product industries requiring exceptional detection accuracy. Featuring ultra-high sensitivity and stable, reliable performance, this system efficiently removes products containing metal foreign objects. Ideal for detecting metal impurities in pills, tablets, capsules, granules, and fine powder formulations.

Product Features

Exceptional precision for detecting minute metal objects within drugs with processing speeds up to 15,000 particles per minute
Versatile handling of various drug types with space-saving compact rack design
Automatic removal device selection components utilize food-grade PVC materials
Superior detection sensitivity exceeding industry standards, capable of detecting iron balls with diameters greater than 0.3mm
Adjustable sensitivity based on product characteristics with real-time detection and rejection counters that can be manually cleared
Constructed entirely from stainless steel with IP66 waterproof rating, vibration resistance, excellent environmental and temperature adaptability, and easy cleaning
Compliance with HACCP, GMP, GAMP, FDA, IFS, ISO9001 and other relevant certification standards

Standard Technical Specifications

Specification	Description
Angle	30° ~ 40° (adjustable)
Input Port Size	150 × 100mm
Pipeline Diameter	Φ40mm
Input Port Height	800mm (maximum +150mm, adjustable)
Exit Height	350mm (maximum +150mm, adjustable)
Detection Sensitivity	Fe Φ: 0.3mm \| SUS Φ: 0.6mm
