    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: ISO9001: 2008, CE
    Model Number: HD-W810

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: 15 days after order confirmed
    Delivery Time: 300 sets per month
    Contact Now
    Detailed Product Description
    Chamber Temperature: 25~50℃;Resolution:0.1℃ Blackboard Temperature Range: 40~85℃ Accuracy:±1℃
    Blackboard Temperature Range ( Option): 40~80℃ Accuracy:±2℃ Time Control Experiments: ≤10000h
    Xenon Arc Lamp Rated Power: 2.5KW Dimensions: 1000×550×1570mm

    Electronic Textile Xenon Lamp Air Cooled Light Fastness Tester / Textile Leather Tester



    Products description:

     machine is mainly determine the color fastness and aging to sunlight, weather resistance, compound color fastness to sunlight-perspiration of colored textile, leather, leatheroid, plastic, etc, by setting various parameters of irradiance, temperature, humidity, spray to simulate natural condition in lab. With Rain, revolution, rotation and spray resistance etc, climate functions.





    Usage:

    To determine color fastness to water and perspiration in textiles. It’s also employed to predict the potential of white or pastelcoloured textiles to yellow in transit or storage.





    Standards

    GB/T 8427 ISO105-B02 GB/T8430 ISO105-B04 GB/T14576

    AATCC TM16-2003 GB/T15102-2006 GB/T15104-2006





    Features

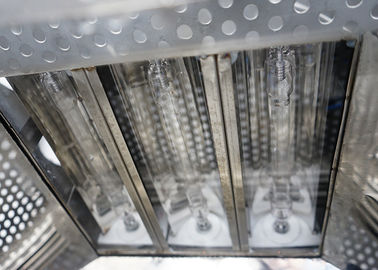

    1. Rated 2500W long-arc xenon lamp technology adopted to real simulate sunlight spectrum
    2. High transmittance of filter combinations and use 95% of the transmittance filters and filter cartridges. With Low power consumption but achieve the same irradiation light requirements. To make the machine is more energy saving and environment friendly.
    3. Digital setting of light intensity , real-time monitoring, automatic adjustment,to meet the different standards for testing the stability of light source
    4. Test and radio transmission are powered by using light conversion technology, no additional power supply is required.
    5. The sample is tested with black plate thermometer(BPT),black plate standard thermometer(BST),irradiance detector at the same position(in equidistance) to really indicate measuring state of the sample,the tested data is transmitted synchronously by using technolody of radio frequency.
    6. With industrial temperature control (refrigeration) system for smoothly and fast adjusting temperature in test chamber
    7. With several modes of operation (rain, alternating light and dark, revolution and rotation), can simulate the real climate state.
    8. Individual timing of each sample clamp may enable different sample test in a same tester and facilitate test monitor and reduce operation cost.
    9. 10.4 inch color touching screen display control and various test monitoring modules(animation,digit,chart)make operation easy,visual and clear
    10. One test can run for 1000 hour continuously with quality guarantee



    Products parameter:

    Function mode

    Offering light, rain ,alternating light and dark, revolution, rotation.

    The alternation light and dark is meet with AATCC4 standard.

    The Xenon lamp light automatically turns on and off in accordance with a certain proportion of time ( Instead of the previous sample holder 180 degree Tipping ) And temperature and humidity changes according to the standard.

    Chamber Temperature 25~50℃;Resolution:0.1℃
    Chamber Humidity

    Light Cycle:10~70%RH;Resolution:0.1%

    Dark Cycle:30~95%RH;Resolution:0.1%

    Blackboard temperature range 40~85℃ Accuracy:±1℃
    Blackboard temperature range ( Option) 40~80℃ Accuracy:±2℃
    Time control experiments ≤10000h

    Irradiance range



    0.80~2.01W/m2@420nm;(Option: 340nm,420nm,300-400nm and 300-800nm)Accuracy:±0.02W/m2@420nm.

    Digital setting,Closed-loop automatic compensation

    Xenon arc lamp rated power 2.5KW
    Sample holder rotation speed revolution 5r/min;rotation.:180°/ture(could be customized)
    Sample holder can be mounted with the number of dimensions

    GB:135×45mm 12pcs

    AATCC:100×75mm 6pcs

    Both sides can clip the sample

    Timing of each sample holder, respectively, ≤10000h
    Photoperiod ≤1000h
    Spray cycle ≤1000h
    Power AC220V±10% 50Hz 5.0KW . Rated power 2.5KW
    Dimensions 1000×550×1570mm
    Weight 180kg
