EQUIPMENT DETAILS OF HD-W821 GAS FUME CHAMBER

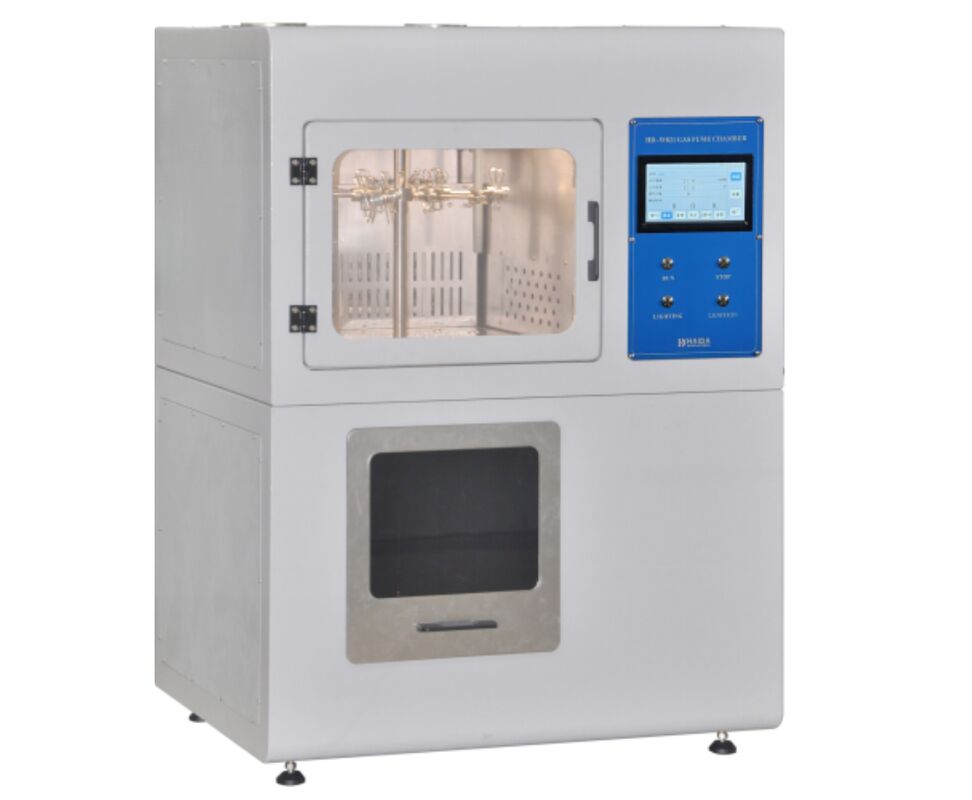

Large Image : EQUIPMENT DETAILS OF HD-W821 GAS FUME CHAMBER

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	ISO9001: 2008, CE
Model Number:	HD-W821

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	15 days after order confirmed
Delivery Time:	300 sets per month

Contact Now

EQUIPMENT DETAILS OF HD-W821 GAS FUME CHAMBER

Description

Fluorescent PHILIPS TLD 18W/840:	European,Japan Shop Light Source	Incandescent PHILIPS E27:	Sun-settting Light Yellow Light Source
Fluorescent PHILIPS 18W/BLB BLACK LIGHT:	Ultraviolet Lamp	Usage:	Color Assessment Tester
Product Size:	675mm455mm415mm	Test Type:	UV Lamp

EQUIPMENT DETAILS OF HD-W821 GAS FUME CHAMBER

EQUIPMENT DETAILS OF HD-W821 GAS FUME CHAMBER 0

APPLICATIONS

Tests the colour fastness of fabrics, sponges and foams when exposed to nitrogen oxides produced by gas combustion.

PRINCLPE

The sample and control sample are simultaneously exposed to the gas fumes. The test terminates when the color change of the control sample reaches the fading standard. The color change of the sample is evaluated using a grayscale chart. If no color change is observed after one test cycle, the test can be continued for the specified number of cycles, or for the number of cycles required to achieve the specified color change.

STANDARD:

AATCC 23,BS 1006: G02,GB/T 11040

STANDARD FEATURES

Item	Description
Control method	PLC control, 7-inch touch screen display
Temperature	Equipped with a thermostat for automatic control and display of test chamber temperature;
Exhaust port	Connected to the exhaust system
Test chamber material	Stainless steel
Rotating frame speed	2 rpm
Specimen size	100 mm * 40 mm
Test temperature	≤ 60°C
Overall dimensions	780670 1100 mm (LWH)
Weight	140 kg
Power supply	220/110 V, 50/60 Hz, 3 A
