Product Overview:

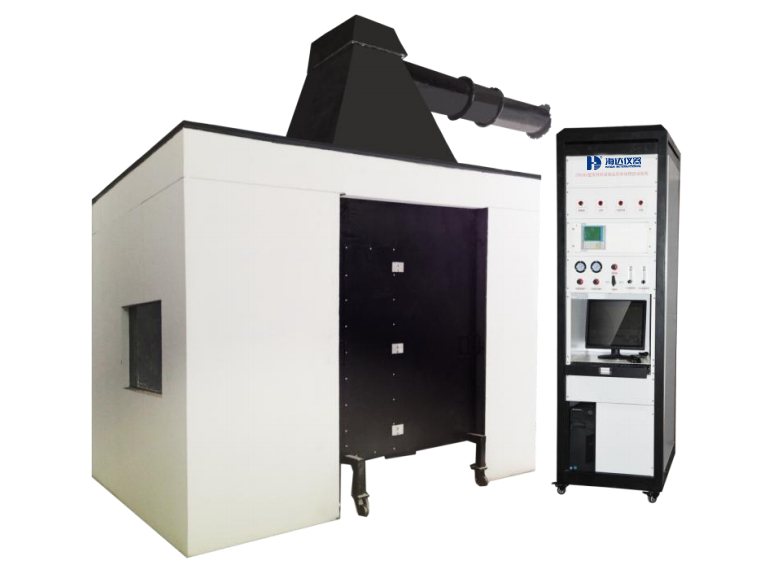

The HAIDA 6038-HD is a fully integrated testing system designed to evaluate the fire reaction performance of building materials in compliance with international SBI methodology. Ideal for quality control and certification purposes.
Key Features:
Complete integrated measurement system with Siemens gas analyzers
Advanced data acquisition and computerized control
Complies with EN 13823, GB/T 20284, and GB/T 8624 standards
Cost-effective maintenance with 50-70% lower replacement part costs
Stable calibration using heptane reference fuel
Main Applications:
Fire reaction testing of building materials and products (excluding floorings)
Technical Highlights:
Main/Auxiliary Burners: 30.7 ± 2.0 kW output
Gas Analysis: O₂ (0-25%) and CO₂ (0-10%) measurements
Data Recording: O₂/CO₂, temperature, pressure, smoke density at 3s intervals
Space Requirements: ~6.0m (H) × 7.0m (L) × 6.0m (W) including control area
Compliance Standards:
EN 13823:2020, GB/T 20284-2006, GB/T 8624-2012
