Precision Flammability Testing Equipment Offering Consistent Results for Fire Resistance and Ignition Testing

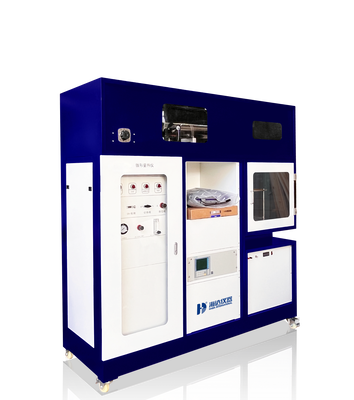

Product Name: Cone Calorimeter 6040-HD

Product Overview:

The HAIDA 6040-HD Cone Calorimeter is an advanced testing instrument that measures heat release rate, smoke production, and combustion properties of materials based on oxygen consumption principles. It provides accurate and reliable data for fire safety evaluations and material research.

Key Features:

• High-precision oxygen consumption measurement
• Adjustable radiation cone (0-100 kW/m² )
• Multi-gas analysis system with 3-stage filtration
• Real-time data monitoring and export capabilities
• Compliant with major international standards

Technical Specifications:

• Radiation Range: 0-100 kW/m² (±2% uniformity)
• Gas Analysis: O₂ (0-25%), CO₂ (0-10%), CO (optional)
• Sample Size: 100*100 mm standard
• Smoke Measurement: Laser-based system (±5% accuracy)
• Power Supply: AC 380V/50Hz, 3-phase

Applications:

• Fire safety testing of building materials, textiles, and polymers
• Flame-retardant material development
• Quality control and regulatory compliance

Compliance Standards:

ISO 5660-1:2015, ASTM E1354, GB/T 16172-2007

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

1. Design & Production : Solution Consultation for each order
   Recommend the most cost -performance machine
   Research & Develop the suitable one for Special- designed Model.
2. Shipping & Delivery: One-Stop Service
   Production- Deliver to your door - Installation & Training- Technical Support
3. Warranty
   1 year warranty with lifetime technology support
4. After-Sale Service
   React within 2 Hours
   Video inspection & on-site service combined

• Q: Are you a trading company or manufacturer?

  A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

• Q: What is your delivery timeline after order confirmation?

  A:Standard orders: 10-25 working days
  Stock orders: Ship within 3 days
  Note: Lead times vary by product specifications and order volume.

• Q: What are your warranty and after-sales service terms?

  A:12-month comprehensive warranty on all testing machines
  Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
  Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

• Q: How do you ensure product quality and service?

  A:100% pre-shipment inspection with full performance testing
  Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
  Multi-tier training support:
  ✓ Instructional operation videos
  ✓ On-site engineer training (upon request)
  Market-proven reliability:
  Globally recognized by industrial users

• Q: Do you offer product customization?

  A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
