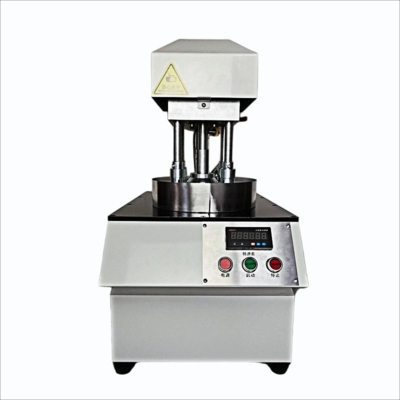

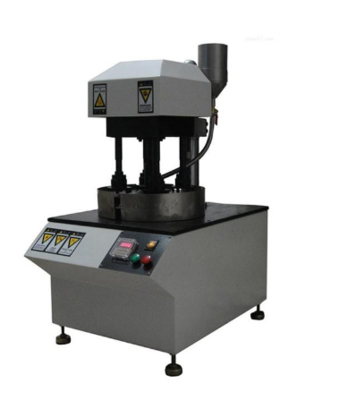

60110-HD Stone Wear Tester for Building Materials

Large Image : 60110-HD Stone Wear Tester for Building Materials

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Haida
Certification:	ISO,CE
Model Number:	60110-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Export wooden case
Delivery Time:	15 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	30 Sets per Month Haida

Contact Now

60110-HD Stone Wear Tester for Building Materials

Description

Control Mode:	Computer Control	Control System:	Controller With LED
Grip:	Tensile Grip, Tear Force Grip	Printing:	Built-in Printer
Screw:	High Precise Ball Screw	Use:	Utm Tensile Testing Machine
Additional Features:	Automatic Data Recording, Real-time Graph Display	Transducer:	Load Cell
Force Reading:	Kgf, Ibf, N, KN, T Etc	Operation Control:	Hydraulic
Usage:	Tension Material Tension Strength Tester	Software:	Tensile Testing Software
Clamping Mode:	Hydraulically	Stoke:	1100mm Including Fixture
Sensor:	Celtron Load Cell	Safety Features:	Emergency Stop Button, Overload Protection
Display:	LCD Touch Screen	Unit Switchover:	G, KG, N, LB
Resolution:	1/100,000	Test Speed Range:	0.001-500 Mm/min
Speed:	0.1-500mm/min, Adjustable	Elongation Accuracy:	0.001mm
Power Supply:	220V, 50Hz	Speed Accuracy:	± 0.2%
Circuit Board:	HD-002-A	Motor:	Panasonic Servo Motor
Load Cell Brand:	Germany Brand Load Cell	Test Space Accuracy:	± 0.1 Mm
Load Cell:	China Brand Load Cell, 50 Kg (500N)
Highlight:	stone wear tester for building materials , HD stone abrasion tester , building materials wear testing machine

60110-HD Stone Wear Tester

Product Attributes

Attribute	Value
Control Mode	Computer Control
Control System	Controller with LED
Grip	Tensile grip, Tear force grip
Printing	Built-in Printer
Screw	High Precise Ball Screw
Use	utm tensile testing machine
Additional Features	Automatic Data Recording, Real-time Graph Display
Transducer	load cell
Force Reading	kgf, Ibf, N, KN, T etc
Operation Control	Hydraulic
Usage	Tension Material Tension Strength Tester
Software	Tensile Testing Software
Clamping Mode	Hydraulically
Stoke	1100mm including fixture
Sensor	Celtron load cell
Safety Features	Emergency Stop Button, Overload Protection
Display	LCD Touch Screen
Unit Switchover	G, KG, N, LB
Resolution	1/100,000
Test Speed Range	0.001-500 mm/min
Speed	0.1-500mm/min, adjustable
Elongation Accuracy	0.001mm
Power Supply	220V, 50Hz
Speed Accuracy	± 0.2%
Circuit Board	HD-002-A
Motor	Panasonic Servo Motor
Load Cell Brand	Germany brand load cell
Test Space Accuracy	± 0.1 mm
Load Cell	China brand load cell, 50 kg (500N)

Product Description

The 60110-HD Stone Wear Tester is designed for wear resistance testing of various building materials including natural granite, marble, limestone, sandstone, slate, artificial stone, and microcrystalline glass. It complies with national standards GB/T19766-2005, GB/T19966.4-2001, and American standard ASTMC241-90.

Main Technical Parameters

Grinding disc size: ￠254*15mm
Distance between the center of four specimens and the center of the disc: 90mm
Load of specimen: 2000±50g, 1250±50g
Grinding disc speed and specimen rotation speed: 45±1rpm
Grinding disc working hardness:＞HB500
Abrasive flow: continuously adjustable
Applicable specimen specifications: square specimen: 50*50±0.5mm, thickness: 15-55mm; round specimen: ￠25±0.5mm; height: 25-60mm
Number of specimens: 4
Speed control range: 0-9999rpm

Digital compressive strength testing machine details
