Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

Large Image : Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-E702

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Strong Wooden Case
Delivery Time:	15 Days After Order
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	75 Piece / Pieces Per Month

Contact Now

Certified Environmental Test Chamber -70°C to 150°C 10-98% RH

Description

Usage:	Constant Temperature And Humidity Testing Machine	Temp. Range:	-70°C~150°C
Humid. Range:	10~ 98 Percent R.H.	Temp. & Humid. Accuracy:	± 0.3°C; ± 2 Percent R.H
Temp. & Humid. Regularity:	± 1°C; ± 3 Percent RH	Resolution:	0.01°C, 0.1 Percent, P.I.D Control
Heating Up:	-40°C ~ +100°C Within 45 Min	Heating Down:	20°C~ -20°Cwithin 40min
Interior Dimension(W×D×H):	100×100×80cm	Exterior Dimension(W×D×H):	145x190x135cm
Interior Material:	Stainless Steel Plate(SUS304)	Exterior Material:	Stainless Steel Plate(SUS304)
Insulation:	Rigid Foam	Display:	LCD
Weight:	Approx. 600 Kg	Power:	AC220V±10 Percent 50/60Hz
Highlight:	Professional Environmental Test Chamber , Stainless Steel Exterior Environmental Test Chamber

Certificated Humidity Temperature Lab Test Machines Environmental Testing Chamber

Product Attributes

Attribute	Value
Usage	Constant Temperature and Humidity Testing Machine
Temp. range	-70°C~150°C
Humid. range	10~98% R.H.
Temp. & Humid. accuracy	±0.3°C; ±2% R.H
Temp. & Humid. regularity	±1°C; ±3% RH
Resolution	0.01°C, 0.1%, P.I.D control
Heating up	-40°C ~ +100°C within 45 min
Heating down	20°C~ -20°C within 40min
Interior dimension (W×D×H)	100×100×80cm
Exterior dimension (W×D×H)	145x190x135cm
Interior material	Stainless steel plate (SUS304)
Exterior material	Stainless steel plate (SUS304)
Insulation	Rigid foam
Display	LCD
Weight	Approx. 600 kg
Power	AC220V±10% 50/60Hz

Product Description

Download Product Specifications (PDF)

Environmental Testing Chamber used to test various types of materials for their tolerances of heat, cold, dry, and humidity conditions. It is applied for all types of electronic products, electric appliances, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical, and aerospace industries.

Key Features

HD series chambers have temperature change rates from 1 to 3°C per minute
Controlled humidity from 10% to 95% RH
Available in 6 sizes with interior volumes of 100 to 1000 Liters
Tailor-made chambers available
Advanced models offer temperature change rates from 3 to 15°C
Meet international test performance standards
Global support network with partners in Australia, Dubai, India, Malaysia, Turkey, and Vietnam
Two levels of overheat protection and one level of overcool protection
System controller provides alarm messages with troubleshooting assistance

Standard Features

Stainless #304 steel interior
Painted steel exterior
Foam-insulated door for rigidity and durability
Plastic water tank for easy maintenance
Observation window with frost-free function
High-performance refrigeration system
User-friendly TEMI-880 PLC controller interface

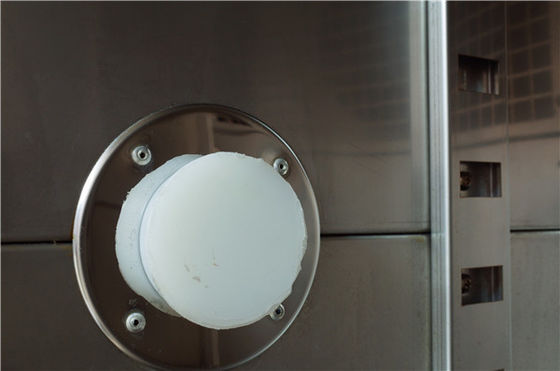

One 100mm cable port (customer specifications available)
One shelf with 10kg loading capacity
Includes 4 casters
Van Type Sirocco, L134, Fan
PID controlled stainless steel humidifier
DuPont R-404A [No Fluorine] Refrigerant / 23 for below -40°C
USB port for data output
Anti-explosive interior lamps
Data logging chart recorders with paperless data storage in PLC

Technical Specifications

Temperature Range: -70°C to 150°C
Humidity Range: 10% to 95% RH
Temperature Fluctuation: ±0.5°C
Temperature Gradient: ±0.5°C to ±0.2°C
Heating Rate: ≥3°C/min average (Advanced model 5-15°C/min)
Cooling Rate: ≥1°C/min average (Advanced model 5-15°C/min)
Humidity Fluctuation: ±1.5% to ±2.0% RH
Humidity Gradient: ±3% RH

Performance Evaluation

For better assurance of performance for your temperature and humidity cycling application, we can provide a guaranteed performance calculation based on your submitted requirements. Please contact our lab consultants for a recommended model with appropriate refrigeration size.

System & Performance Options

Low and Ultra-Low Humidity Extensions
Water-cooling system
Dry Air Purge system for extremely low moisture
Additional shelves with 50kg loading capacity
Custom cable ports with flexible silicone plugs (50, 100, 150mm or customer-specific diameters)
