Product Details:
|
| Frame Capacity: | 2000kg | Load Cell Brand: | Germany Brand Load Cell For High Accuracy, 2000kg (500,1000kg Are Optional) |
|---|---|---|---|
| Load Accuracy: | 0.5% F.S | Control System: | PC With Windows 7 System |
| Highlight: | Extensometer Lab Test Machines,100mm/min Lab Test Machines,100mm/min strength testing equipment |
||

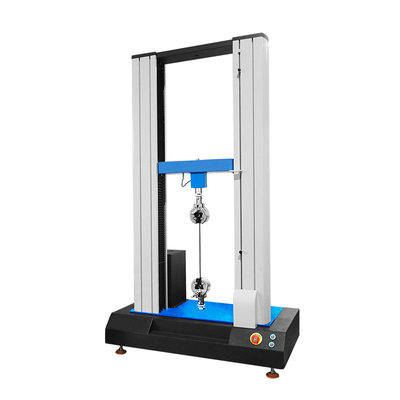

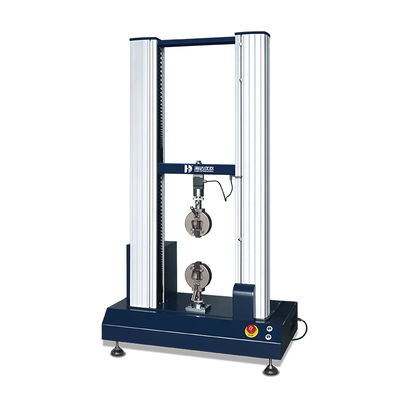

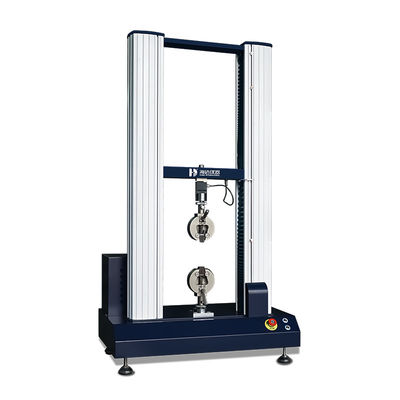

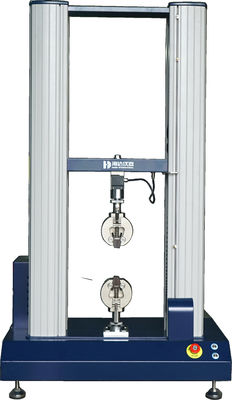

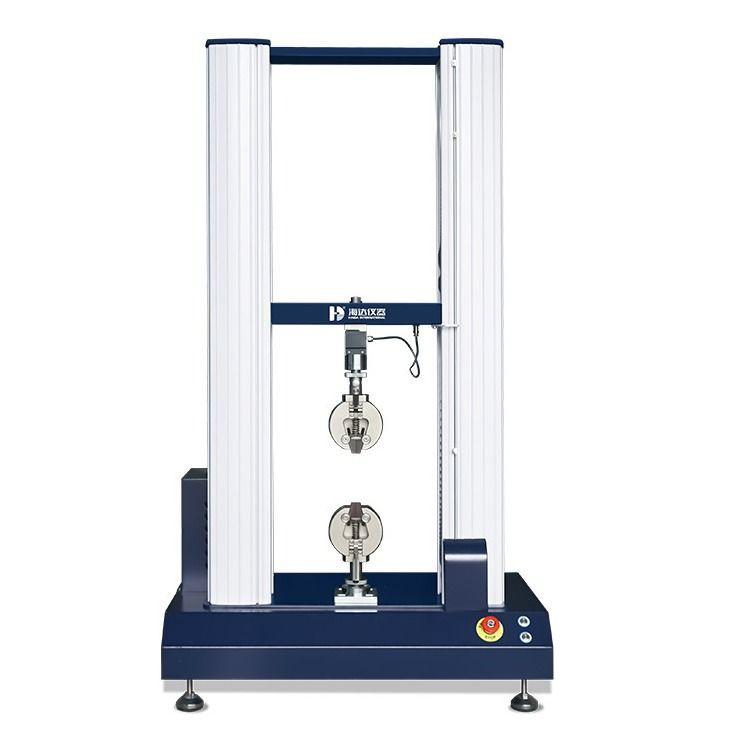

Double Column Large Capacity Universal Test Machine With Extensometer
HD-B604B-S Universal Test Machine.pdf
Product Description
Tensile testing machine is used to test the mechanical properties of various materials such as static load, tensile, compression, bending, shearing, tearing, peeling and other mechanical properties of mechanical equipment. It is suitable for plastic plates, pipes, and other materials. Various physical and mechanical performance tests of profiles, plastic films and rubber, wires and cables, steel, fiberglass and other materials are developed for materials
Standard Features
| Item | Description |
| Frame capacity | 2000kg |
| Load cell brand |
Germany brand load cell for high accuracy, 2000kg (500,1000kg are optional) |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1200mm including fixture |
| Horizontal test space | ≤400mm |
| Test speed | 0.1~500mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Applications
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
QUALITY ASSURANCE
1. The guarantee period with FOC within 1 year (not including expendable partscost and transport&travel fees)
1.1 During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for non-expendable part) caused by non-human reasons;
1.2 If any quality problems occur within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by buyer;
1.3 If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by buyer, also charge for a favorable price for new parts;
1.4 Haida will provide a lifetime favorable price to the buyer for expendable & non-expendableparts used in system operation, equipment maintenance;
2. The following conditions need to be paid reasonably even in the guarantee period:
2.1 Natural disaster
2.2 Operating mistakes
2.3 Voltage is not fit for our manual
2.4 Uninstall without our guides
2.5 Damaged for borrowing to others
2.6 Damaged for without authorized machine modification
2.7 Damaged for without authorized calibration
2.8 Withoutauthorized transshipment mistake
3. Attentions: the machine cannot be used following situations:
3.1 Vibration, rocking place.
3.2 Direct sunlight.
3.3 Hot, dusty, damp places.
3.4 To ensure safe, AC supply of the machine should be well grounded.
3.5 Do not use strong solvents (such as: benzene, nitro oil) washing machine.
3.6 Do not inject water and debris into the machine to prevent damage to electrical components and electrical shock.
3.7 Machine’s disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.
