Product Details:
|
Usage: | Tension Material Tension Strength Tester | Warranty Period: | 1 Year |
---|---|---|---|
Max. Test Load: | 300KN | Load Range: | 6KN-300KN |
Max. Ram Stroke: | 250mm | Max. Tensile Space: | 800mm(including Piston Stroke) |
Max. Compression Space: | 700mm(including Piston Stroke) | Display: | Computer Control And Display |
Clamping Mode: | Hydraulically | Transducer: | Load Cell |
Deformation Measuring: | YYU–10/50 | Dimensions Of Load Frame: | 990×600×2435mm |
Dimension Of Controller: | 1140×700×930mm | All Weight: | 2800kg |
Highlight: | hydraulic universal testing machine,hydraulic compression testing machine |

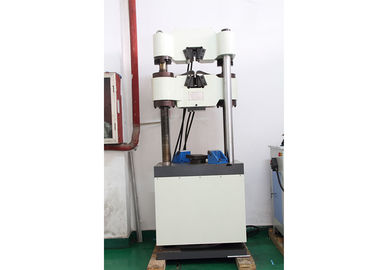

300KN Load Cell Universal Compression Testing Machine PC Controlled
Structure introduction
300KN Load Cell Computer Control Hydraulic Tensile Testing Machine is mainly used to execute the tension, compression, bending, shearing etc. test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.
The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.
300KN Load Cell Computer Control Hydraulic Tensile Testing Machine adopts oil pressure transducer to measure load, use computer control & display load.
1. it is digtial type
2. it is hydraulic
3. it can do the test of tensile, compression, bending, and so on
1. instroduction
Model WES-300B hydraulic universal testing machine UTM is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. to the metal, nonmetallic composite materials.
2. structure
The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: high-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.
3. characteristics
It has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. to metal and non-metallic material in various laboratories.
Main specifications
Model: |
HD-B616 |
Max. Test load: |
300KN |
Load range: |
6KN-300KN |
Relative error of indicate value of load : |
±1% |
Max. Ram stroke: |
250mm |
Max. Tensile space: |
800mm(including piston stroke) |
Max. Compression space: |
700mm(including piston stroke) |
Display: |
Computer control and display |
Tensile grips for round specimen : |
φ6-φ26mm |
Tensile grips for flat specimen: |
0-15mm |
Distance for two columns: |
500mm |
Upper and lower platen size: |
200x200mm |
The span of bending: |
450mm |
Width of bending roller: |
140mm |
Dia. of bending roller: |
30mm |
Clamping mode: |
Hydraulically |
Transducer: |
load cell |
Deformation measuring: |
YYU–10/50 |
Dimensions of load frame : |
990×600×2435mm |
Dimension of controller : |
1140×700×930mm |
All weight: |
2800kg |
Main standard accessories:
Hydraulic Universal Testing Machine
Upper and lower platen for compression(200x200mm) |
1 set |
Extensometer |
1 set |
Round specimen grip for tensile ( φ6-φ26mm ) |
1 set |
Flat specimen grip for tensile ( 0-15mm ) |
1 set |
Bending accessories |
1 set |
High accurate load cell |
1 set |
High precision photoelectric encoder Measuring the displacement |
1 set |
High pressure pump |
1 set |
Proportion Valve |
1 set |
Electro-hydraulic servo valve |
1 set |
Shearing accessories ( Optional accessories) |
1 set |
