Product Details:
|
| Resolution: | 1/100,000 | Accuracy: | ±0.5% |
|---|---|---|---|
| Max. Stroke: | 1000mm (excluding Fixture) | Test Speed: | 20-300mm/min (adjusted By The Knob ) |
| Motor: | AC Motor | Test Area Material: | SUS304 Stainless Steel |
| Elongation Accuracy: | 0.001mm | Power: | 1∮, AC220V, 50HZ |
| Weight: | Approx.150kg | Capacity: | 500, 1000, 2000KG |
| High Light: | tensile testing equipments,tensile strength tester |
||

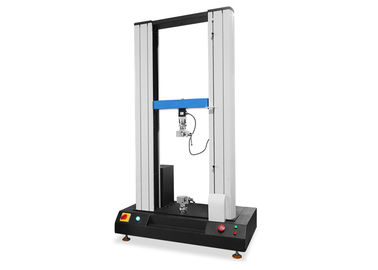

Universal Tensile Strength Testing Machine for Rubber , Plastic , Metal , Nylon
Application:
It is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,etc.of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing,architecture,petrochemistry,electric appliance,automobile,...etc. ,which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.
Theory of Tensile Strength Testing Machine:
Place the sample between the upper and lower fixture,use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on the computer.
Features
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it
operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can
be switched easily
4. The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. High quality, accurate and reliable models with reasonable price.
Standard:
ASTMD903,GB/T16491,GB/T1040,
GB/T8808,GB13022,GB/T 2790/2791/2792,
CNS-11888,JIS K6854, PSTC-7.
Technical Parameters of Tensile Tester :
|
Capacity (optional) |
5,10,20,25,50,100,200kg(optional) |
|
Unit (Switchable) |
G, KG, N, LB |
|
Load Resolution |
1/250,000 |
|
Load Accuracy |
< ± 0.5% |
|
Stroke (include the grips) |
1000mm |
|
Test speed |
0.1~500mm/min selectable |
|
Weight (exclude the grips) |
190 Kg |
|
Operation Mode |
PC or LCD |
|
Display |
PC or LCD |
|
Motor |
Servo Motor |
|
Dimension(W×D×H)-Main Unit |
570×510×1240mm |
|
Driver |
High precise ball screw |
|
Power |
single phase, 220V/ 10A or designated |
|
Accessories |
Tensile grips 1 set, one computer |
Software:
The TM2101 measurement and control system is designed purposely for microcomputer controlled electronic universal testing machine, microcomputer controlled universal hydraulic testing machine and microcomputer controlled compress testing machine, used for the test of tension, compress, bend, shear, tearing and peel. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force, maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
Specification of Main Engine:
a, Motor system: Panasonic servo motor +Panasonic servo driver +ball screw (Taiwan) +Leeming reduction gears +synchronous belt drive
b, Control system: a, TM2101 computer servo system,b, Back to origin automatically after the test;
c, store data automatica lly or by manual operation
d, Data transmission:RS232
e, Computer servo system :Desktop computer servo control tensile tester dedicated system
f, Display modes: Windows Interface display
g, Using windows interface to test software it can achieve to set speed, load, power time, Breakpoint
proportion ,much ord er control mode and meet different test requirement.
h, Whole displacement: encoder (2500P/R), ascending 4 times precision
i, Displacement resolution: 0.001mm
j, Safety device: overload emergency stop device, fluctuation travel limit device, leakage automatic broken
electricity syste m, automatic breakpoint stop function
The Instrument Configuration
Standard configuration: host, universal fixture, professional software, communication cable the optional items: mini-printer, special printer cable, standard roller, test panel, sampling knife, floating roller fixture, non-standard fixture
Maintenance Methods
1, machine parts, the appearance of regular cleaning to keep clean.
2, plating part please wipe oil to prevent rusting Kibo light.
3, part of the power screw and screw please add oil to protect sensitive transmission. (Add a little butter and oil mining lubricants can be mixed).
4, panel (ie, the control box display) wipe with a dry cloth to prevent wet, to avoid damaging IC electronic components.
5, the fixtures and fittings, please properly set, and remove anti-rust oil to prevent rust.
6, the work required to turn off the power.
Product Image:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
