Programmable Constant Temperature and Humidity Testing Machine

Programmable Constant Temperature and Humidity Testing Machine
Programmable Constant Temperature and Humidity Testing Machine
Programmable Constant Temperature and Humidity Testing Machine Programmable Constant Temperature and Humidity Testing Machine Programmable Constant Temperature and Humidity Testing Machine Programmable Constant Temperature and Humidity Testing Machine Programmable Constant Temperature and Humidity Testing Machine Programmable Constant Temperature and Humidity Testing Machine Programmable Constant Temperature and Humidity Testing Machine

Large Image :  Programmable Constant Temperature and Humidity Testing Machine

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,ISO
Model Number: HD-E702
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 75 Piece / Pieces Per Month

Programmable Constant Temperature and Humidity Testing Machine

Description
Usage: Constant Temperature And Humidity Testing Machine Humid. Range: 10~ 98 Percent R.H.
Temp. & Humid. Regularity: ± 1°C; ± 3 Percent RH Heating Up: -40°C ~ +100°C Within 45 Min
Interior Dimension(W×D×H): 100×100×80cm Exterior Material: Stainless Steel Plate(SUS304)
Insulation: Rigid Foam Display: LCD
Weight: Approx. 600 Kg Power: AC220V±10 Percent 50/60Hz
Use: Environmental Chamber
High Light:

Constant Temperature And Humidity Chamber

,

Temperature Humidity Test Chamber

Programmable Constant Temperature and Humidity Machine High performance





Temperature and humidity chamber.pdf





1. Features

The HD series chambers have temperature change rates from 1 to 3°C per minute in average and controlled humidity from 10% to 95%. There are 6 sizes with interior volumes of 100 to 1000 Liters or we also provide tailor-made chambers of size. On the advance model for Cycling Chambers have temperature change rates from 3 to 15 °C, controlled humidity from 10 to 95%.





Standard Features

Stainless# 304  steel for interior

  • Paint steel for exterior
  • Foam-insulated door for rigidity and long life
  • Plastic water tank easy for maintenance
  • Observation Window with frost free function
  • High performance refrigeration system

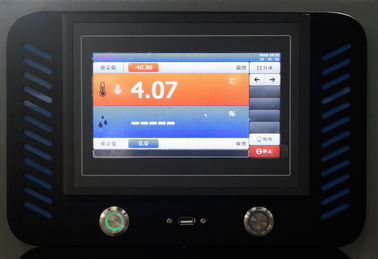

  • Easy user interface for TEMI-880 PLC controller
  • One 100mm cable port/ Customer specified
  • One shelve, 10 Kg loading  & 4 casters included
  • Van Type Sirocco,L134,Fan
  • PID controlled-Stainless Steel Humidifier
  • DuPont R-404A [No Fluorine] Refrigerant / 23 for below -40 °C
  • USB port for data output
  • Anti-explosive interior lamps
  • Data logging chart recorders, paperless recorders stored data in the PLC.



International Applications

HD series chambers meet international test performance standards. The units can be installed around the world for consistent testing at different facilities, supported by Haida Group and our cooperation prater in Australia, Dubai, India, Malaysia, Turkey and Vietnam.  And our chambers feature two levels of overheat protection, and one levels of overcool protection. The system controller provides alarm messages with specific troubleshooting help to quickly resume testing.







2. Performance of Constant Temperature and Humidity Testing Machine:



System & Performance Options

  • Low and Ultra-Low Humidity Extends the humidity control range. (Normal Humidity Range Diagramed)
  • Water-cooling system.
  • Dry Air Purge keeps moisture in the chamber extremely low by purging with -40 °C. Compressed air supply required
  • Additional shelves, 50 Kg  loading
  • Cable ports with flexible silicone plug, 50 , 100, 150mm or customer specific diameters



Get a performance evaluation to help provide the suitable chambers to you.



For better assurance of performance for your temperature and humidity cycling application, Haida can provide a guaranteed performance calculation based on your submitted requirements.



Please use these questions as below as a guide to define your test plan. You can then give this information to our lab consultant or email to us, for review by our lab consultant. A recommended model with appropriate refrigeration size will provide to you.





3. Specifications of Constant Temperature and Humidity Testing Machine:



Range – 70 to 150°C



Temp/Humidity

HD-E702-100-7

HD-E702-150-7

HD-E702-225-7



HD-E702-408-7

HD-E702-800-7

HD-E702-1000-7

Temp-only

HD-E702-100T-7

HD-E702-150T-7

HD-E702-225T-7



HD-E702-408T-7

HD-E702-800T-7

HD-E702-1000T-7

Temperature Range:

-70°C ~150°C

Cooling Capacity

~ 2.5 kW at -50°C

~ 3 kW at -50°C

 ~ 5 kW at -50°C



~ 6.5 kW at-50°C

~ 8.5 kW at -50°C

~ 9 kW at - -50°C

Heating System

~ 5 kW

~ 5 kW

~ 5.5 kW



~6.5 kW

~ 8.5 kW

~ 9 kW

Temperature Fluctuation:

±0.5°C

Temperature Gradient:

±0.5°C~±0.2°C

Heating Rate†:

≥3℃ / min average ( Advance model 5 – 15 ℃ / min)

Cooling Rate†:

≥1℃ / min average (Advance model 5 - 15℃ / min)

Humidity Range:

10%~95%RH (Ref to Normal Humidity Range Diagramed)

Humidity Fluctuation:

±1.5%RH~±2.0%RH

Humidity Gradient:

±3%RH

Dimensions

Workspace dimensions
(WxDxH)mm:

500x400x500

HD-E702-100

600x500x500

HD-E702-150

750x500x600

HD-E702-225



850x650x800

HD-E702-800

1000x1000x800

HD-E702-800

1000x1000x1000

HD-E702-1000

Exterior dimensions
(WxDxH)mm:

1400x850x1050

1500x950x1050

1650x950x1150



1750x1050x1350

1900x1450x1350

1900x1450x1550

Site Requirements

Electrical Supply:

208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific)

Humidity Water

Distilled water

Condensate Drain:

1/2" hose connection (gravity drain)





Range – 40 to 150°C



Temp/Humidity

HD-E702-100-4

HD-E702-150-4

HD-E702-225-4



HD-E702-408-4

HD-E702-800-4

HD-E702-1000-4

Temp-only

HD-E702-100T-4

HD-E702-150T-4

HD-E702-225T-4



HD-E702-408T-4

HD-E702-800T-4

HD-E702-1000T-4

Temperature Range:

-40°C ~150°C

Cooling Capacity

~ 2 kW at -20°C

~ 2.5 kW at -20°C

 ~ 4.5 kW at -20°C



~ 5.5 kW at-20°C

~ 8 kW at -20°C

~ 8.5 kW at - -20°C

Heating System

~ 5 kW

~ 5 kW

~ 5.5 kW



~6.5 kW

~ 8.5 kW

~ 9 kW

Temperature Fluctuation:

±0.5°C

Temperature Gradient:

±0.5°C~±0.2°C

Heating Rate†:

≥3℃ / min average ( Advance model 5 – 15 ℃ / min)

Cooling Rate†:

≥1℃ / min average (Advance model 5 - 15℃ / min)

Humidity Range:

10%~95%RH (Ref to Normal Humidity Range Diagramed)

Humidity Fluctuation:

±1.5%RH~±2.0%RH

Humidity Gradient:

±3%RH

Dimensions

Workspace dimensions
(WxDxH)mm:

500x400x500

HD-E702-100

600x500x500

HD-E702-150

750x500x600

HD-E702-225



850x650x800

HD-E702-800

1000x1000x800

HD-E702-800

1000x1000x1000

HD-E702-1000

Exterior dimensions
(WxDxH)mm:

1400x850x1050

1500x950x1050

1650x950x1150



1750x1050x1350

1900x1450x1350

1900x1450x1550

Site Requirements

Electrical Supply:

208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific)

Humidity Water

Distilled Water

Condensate Drain:

1/2" hose connection (gravity drain)

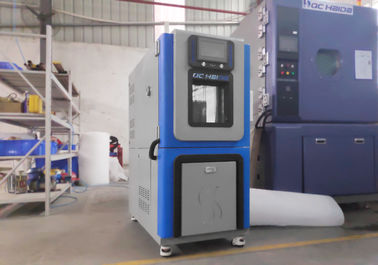

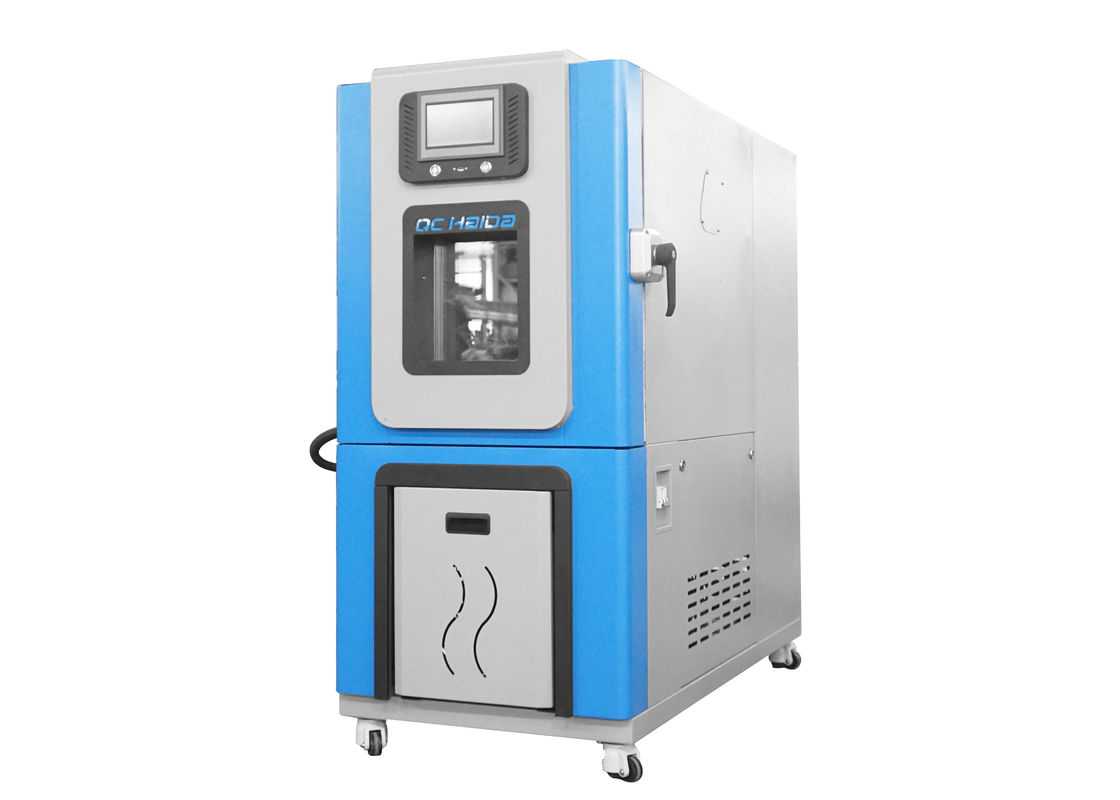

4. Programmable Constant Temperature and Humidity Testing Machine view



environmental chamber

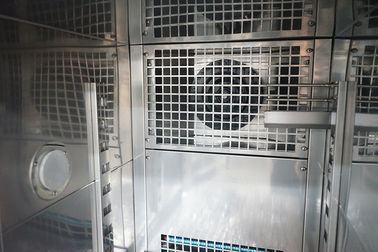

(Innovative high-speed airflow suited for fast temperature cycling applications)
