Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber

Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber
Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber
Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber

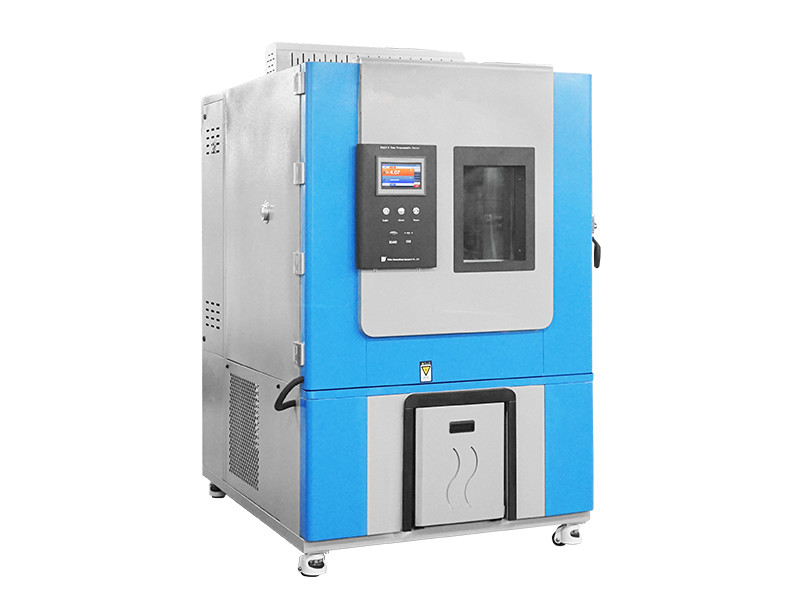

Large Image :  Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-E702-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram, T/T
Supply Ability: 300 sets per month

Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber

Description
Humidity Range: 20~98%RH (Refer Image Below) Cooling Method: Air Cooling
Temperature Range: -70~+150℃ Temperature Fluctuation: ±0.5℃
Temperature Uniformity: 2℃ Humidity Fluctuation: ±2.5%RH
Humidity Uniformity: 3%RH
High Light:

800L Humidity Test Chamber

,

Computerized Humidity Test Chamber

,

Tempered Glass Temperature Humidity Test Chamber

Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber​



APPLICATIONS

1. Test the effect of materials under different temperature and humidity environments

2. The climatic conditions included in the cycle test: heat preservation test, heating test, freezing test, wetting test and drying test...

3. The cable port is equipped with a flexible silicone plug for cable wiring to provide conditions for the test unit in operation

4. Discover the weaknesses of the tested unit in the short-term test with accelerated time effect

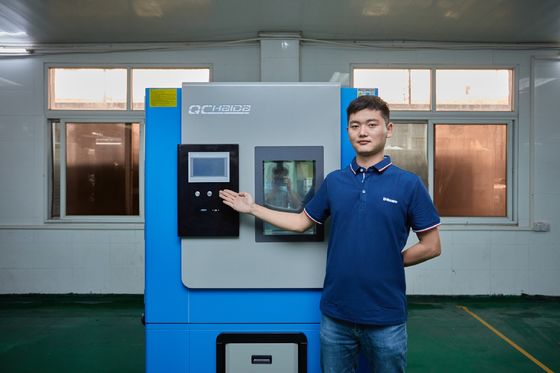

Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber 0



CHAMBER DESIGN FEATURES

1. High performance and quiet operation (68 dBA)

2. The space design is flat and can be installed flush with the wall

3. Enclosed heat insulation around the door frame

4. 50mm diameter cable port o with flexible silicone plug on the left side

5. Accurate dry/wet bulb temperature measurement system, easy to maintain

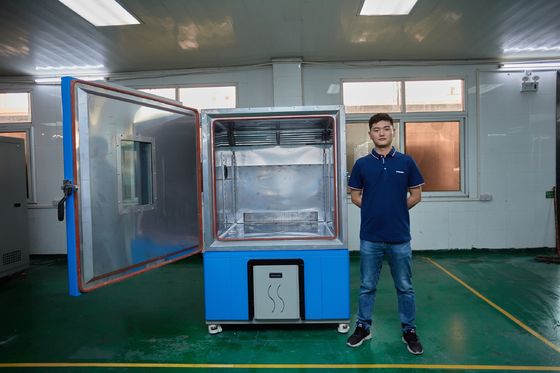

Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber 1



PROGRAMMABLE CONTROLLER

1. PLC controller for test chamber

2. Step types include: soak, jump, ramp, automatic start and end

3. The RS-232 interface connects to the computer output

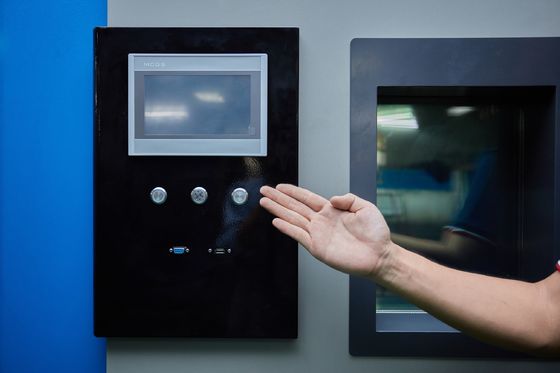

Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber 2



HUMIDITY RANGE

Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber 3

20 to 98%RH per chat (no live load)





STANDARD FEATURES

Model HD-E702-800
Internal dimension (W*D*H) 1000*800*1000mm
External dimension (W*D*H) 1500*1180*1900mm
Temperature range -70~+150℃
Temperature fluctuation ±0.5℃
Temperature uniformity 2℃
Humidity range 20~98%RH (Refer Image below)
Humidity fluctuation ±2.5%RH
Humidity uniformity 3%RH
Cooling speed 1℃/min in average (without loading)
Heating speed 3℃/min in average (without loading)
External chamber material Stainless steel
Cooling method Air cooling
Controller

LCD touch screen, programmable control temperature and humidity

Can set different parameter for cyclic test

Insulation material 50mm high density rigid Polyurethane foam
Heater Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor France Tecumseh compressor x 2sets
Lighting Heat resistance
Temperature sensor PT-100 dry and wet bulb sensor
Observation window Tempered glass
Testing hole Diameter 50mm, for cable routing
Safety protection device

Protection for leakage

Over-temperature

Compressor overvoltage and overload

Heater short circuit

Water shortage



PLC OPERATION

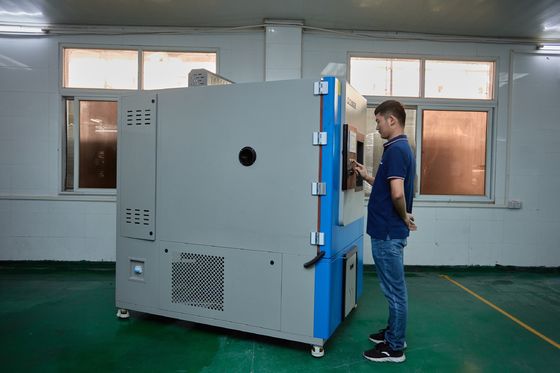

Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber 4



INTERNAL CHAMBER

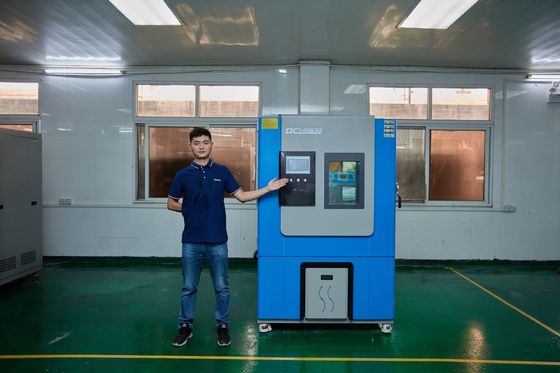

Laboratory Automatic Computerzed 800L Constant Temperature And Humidity Test Chamber 5
