Product Details:
|
| Product Name: | Drop Test Machine | Dropping Height: | 300mm-1500mm |
|---|---|---|---|
| Display Method: | Digital Display | Maximum Weight Of The Package: | 60kg |
| Maximum Size Of The Package: | (L×W×H)1000×700×1000mm | Power: | AC380V,50Hz |
| High Light: | ista package testing,packaging testing equipments |
||

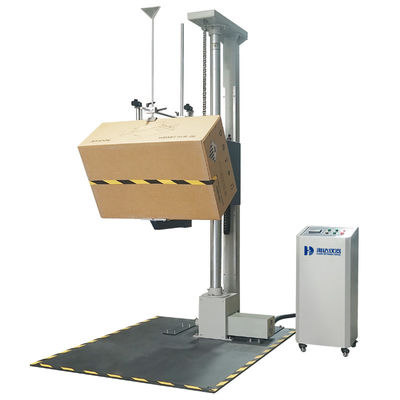

Electronic Drop Test Machine ISTA Packaging Testing Equipment
Product Description:
Drop Test Machine is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.
The Technical parameters:
| Dropping height | 300mm-1500mm |
| Display method | digital display |
| Maximum weight of the package | 60kg |
| Maximum size of the package | (L×W×H)1000×700×1000mm |
| Size of the dropping panel | (L×W)1700×1400mm |
| Size of the swing | 290×240×8mm |
| Dropping deviation | ±10mm |
| Deviation of dropping horizon | less than 1° |
| Outside size | (L×W×H)1700×1400×2215mm |
| Chamber size | (L×W×H)350×350×1100mm |
| Weight | 550kg |
| Power | AC380V,50Hz |
| Transmitt approach | Electric transmission |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
The comparison table of the package weight and dropping height:
| Weight | Height | ||||
| No less than | Less than | Free-drop | |||
| Lbs | Kg | Lbs | Kg | Inch | mm |
| 0 | 0 | 21 | 10 | 30 | 760 |
| 21 | 10 | 41 | 19 | 24 | 610 |
| 41 | 19 | 61 | 28 | 18 | 460 |
| 61 | 28 | 100 | 45 | 12 | 310 |
| 100 | 45 | 150 | 68 | 8 | 200 |
Operation of Control Chamber
A. It adopts electromagnet control system to control the dropping swing
B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function
C. The testing height can be digital set up.
Test Standards:
GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276
Configuration
Outside material: advanced paint coat
Display: LCD display
Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs
