Product Details:
|
| Dropping Height: | 300mm-1500mm( Can Be Adjustable) | Maximum Weight Of The Package: | 60kg |
|---|---|---|---|
| Maximum Size Of The Package: | (L×W×H) 1000×700×1000mm | Size Of The Dropping Panel: | (L×W)1700×1400mm |
| Size Of The Swing: | 200×150×8mm | Dropping Deviation: | ±10mm |
| Deviation Of Dropping Horizon: | Less Than 1° | Outside Size: (L×W×H): | 1600*1200*1000mm (estimated) |
| Package Weight: | 1700×1200×2500mm | Chamber Size: (L×W×H): | 350×350×1100mm |
| High Light: | ista package testing,package testing equipment |
||

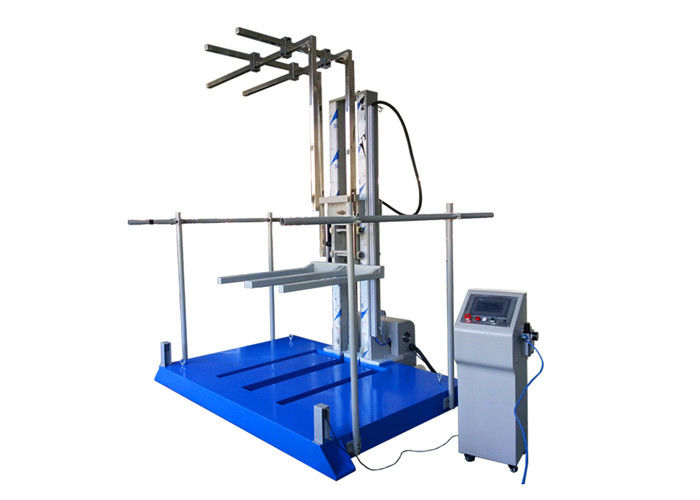

ISTA Standard Package Testing Equipment With LCD Display Controller
Haida ISTA Series Testing Machine.pdf
Products Introduction:
ISTA Standard Packaging Testing Machine For Simulate Transportation Free Drop is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.
Configuration:
1, Outside material: advanced paint coat
2, Display: LCD display
3, Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
4, Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
5, Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs
Main Parameters:
|
Dropping height |
300mm-1500mm( can be adjustable) |
|
Display method: |
digital display |
|
Maximum weight of the package |
60kg |
|
Maximum size of the package |
(L×W×H) 1000×700×1000mm |
|
Size of the dropping panel |
(L×W)1700×1400mm |
|
Size of the swing |
200×150×8mm |
|
Dropping deviation |
±10mm |
|
Deviation of dropping horizon |
less than 1° |
|
Outside size: (L×W×H) |
1700×1200×2500mm |
|
Chamber size: (L×W×H) |
350×350×1100mm |
|
Weight |
550kg |
|
Power |
AC single phase, 220V |
|
Test standards |
GB/T4857.5, ISO 2248,JIS Z0202,ASTM D5276 |
|
Accessories |
electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece |
Operation of Control:
A. LCD Display Controller ISTA Packaging Free Drop Testing Machine adopts electromagnet control system to control the dropping swing.
B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function
C. The testing height can be digital set up.
The Comparison Table of The Package Weight and Dropping Height:
|
Weight |
Height |
||||
|
No less than |
Less than |
Free-drop |
|||
|
Lbs |
Kg |
Lbs |
Kg |
Inch |
mm |
|
0 |
0 |
21 |
10 |
30 |
760 |
|
21 |
10 |
41 |
19 |
24 |
610 |
|
41 |
19 |
61 |
28 |
18 |
460 |
|
61 |
28 |
100 |
45 |
12 |
310 |
|
100 |
45 |
150 |
68 |
8 |
200 |
