Digital Counter Textile Testing Machine Yarn Wrap Reel For Yarn Length Tester

Digital Counter Textile Testing Machine Yarn Wrap Reel For Yarn Length Tester

    • Digital Counter Textile Testing Machine Yarn Wrap Reel For Yarn Length Tester
    • Digital Counter Textile Testing Machine Yarn Wrap Reel For Yarn Length Tester
  • Digital Counter Textile Testing Machine Yarn Wrap Reel For Yarn Length Tester

    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: ISO9001: 2008, CE
    Model Number: HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: 15 days after order confirmed
    Delivery Time: 300 sets per month
    Contact Now
    Detailed Product Description
    Spread Of Each Lea: 60 Mm Swift/wheel Circumference: 1.5 Yards Or 1 Meter
    Operating Speed: 100 ± 2 Rpm (20-250rpm Adjustable) Digital Counter (Preset Type): 0–9999,LED
    Traverse Motion: 35 ± 0.5 Mm Pre-tension: 0 -100 CN

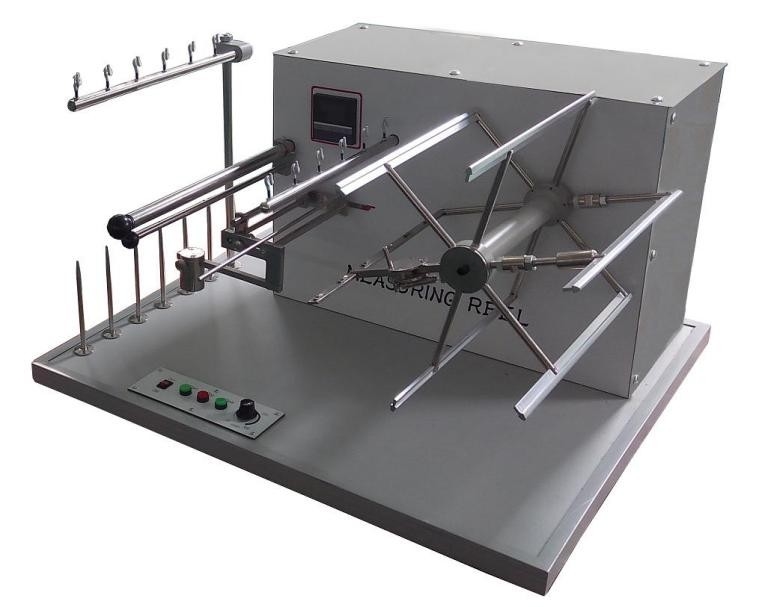

    Digital Counter Electronic Textile Yarn Wrap Reel for Yarn Length Testing Machine



    Product description:

    Automatic Wrap Reelis an ideal equipment to produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing.Supplied with 1 meter or 54 Inches Collapsible arm Swift/wheel (Specify)



    Usage

    To produce Skeins (lea/hank) of yarn for checking the yarn count and for lea strength testing.



    Testing standards

    ASTM D1907Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method

    ASTM D2260Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems

    ISO 2060Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method

    BS 2010Method for determination of the linear density of yarns from packages

    DIN 53830Testing of textiles; determination of linear density of single and plied yarns (reel method)



    Salient features

    1. Wrap reels available in Metric and English system.

    2. Digital control panel with resettable revolution counter.

    3. Equipped with a yarn-tensioning device.

    4. Speed from 20 up to 250 r.p.m.

    5. Six Skeins (lea/hank) can be made together.

    6. Complete with all accessories.

    7. Supplied with inspection & calibration certificates.



    Technical parameter:



    Number of leas made at a time 6
    Spread of each lea 60 mm
    Swift/wheel circumference 1.5 yards or 1 meter
    Operating speed 100 ± 2 rpm (20-250rpm adjustable)
    .Digital Counter (Preset Type) 0–9999,LED
    Traverse motion 35 ± 0.5 mm
    Pre-tension 0 -100 cN
    Dimensions 780 x 660 x 480 mm
    Power supply 220V,50Hz or 110V,60Hz
    Weight 53 Kg




    Accessories

    Main Unit 01 No.
    Power Cord 01 No.
    This User’s Manual 01 No.
    Inspection & Conformance Certificate 01 No.
