Electronics Ingress Protection Lab Test Equipment Waterproof Tester

Electronics Ingress Protection Lab Test Equipment Waterproof Tester
Electronics Ingress Protection Lab Test Equipment Waterproof Tester
Electronics Ingress Protection Lab Test Equipment Waterproof Tester Electronics Ingress Protection Lab Test Equipment Waterproof Tester Electronics Ingress Protection Lab Test Equipment Waterproof Tester Electronics Ingress Protection Lab Test Equipment Waterproof Tester Electronics Ingress Protection Lab Test Equipment Waterproof Tester

Large Image :  Electronics Ingress Protection Lab Test Equipment Waterproof Tester

Product Details:
Place of Origin: China
Brand Name: hd
Certification: CE,,ISO
Model Number: HD-E712
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 75 Piece / Pieces Per Month

Electronics Ingress Protection Lab Test Equipment Waterproof Tester

Description
Usage: Waterproof Universal Rain Spraying IP Test Equipment IPX5 / IPX6 Rotating Speed: Adjustable
Arm Radius: 300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm Or 1500mm Rotating Angle: +/-270, Adjustable
Rotating Table: Speed Is Adjustable Flow Rate: 0.07L/min (IPX3,4), 0.6+/-0.5L/min (IPX4K)
Nozzle Distance: 50mm Nozzle Diameter: 0.4mm
Power: 1 Phase, 220V, 5KW Specimen Rotative Speed: 1-3r/min (Adjustable)
High Light:

electronic lab equipment

,

laboratory testing equipment

Electronics Ingress Protection Lab Test Equipment Waterproof Tester




Description:
Waterproof Test Chamber is suitable for electric products assessment, shell and seal in the rain environment can ensure that equipment and components good performance test. This lab test machine uses scientific design, makes the equipment can realistic simulation drop of water, water spray, splash water, water spray, etc., various kinds of environment. Into the comprehensive control system and the adoption of the frequency conversion technology, which makes the rainfall test product frame rotation Angle, jet pendulum rod swing Angle of water quantity and the oscillating frequency can be automatic control.

Auxiliary Structure
Bottom of the chamber has a water storage tank, test water sprinkler systems, table rotation system, swing pipe swing drive
Seal: double high-temperature high tensile seal between the door and the cabinet in order to ensure a closed test area
Door handle: no reaction door handle, easier operation
Casters: bottom of the machine can be fixed with high quality PU wheels


Control System
1, a computer system using win 7
3, has a history memory function (available historical records test within 7 days)
4, temperature: 0.1 ℃ (display range)
5, Time: 0.1min


Product Usage
Rain chamber is mainly applied to electric and electronic, aerospace, military and other scientific research units, external lighting, automotive lighting and signaling devices test for detection of shell protection.


Box Structure

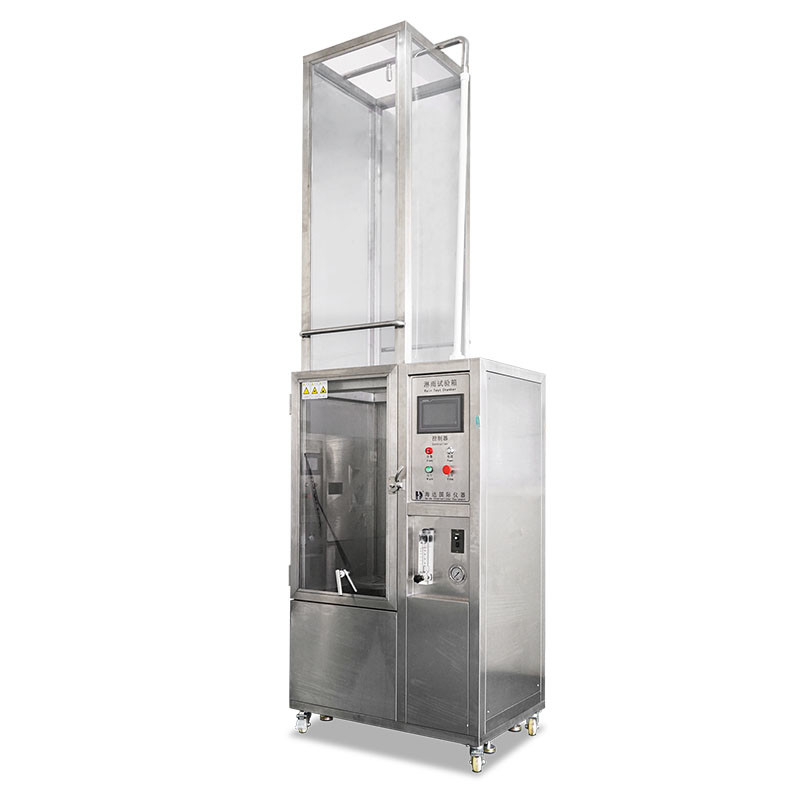

Tank shell material made of high quality stainless steel hairline, liner material stainless steel light board; 2 large sight glass door for easy observation test cabinets test sample status;
Imported inverter speed control to ensure the test according to the standard;
Bottom of the chamber can be fixed with high quality PU wheels, easy to move users;

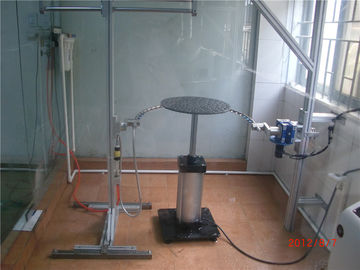

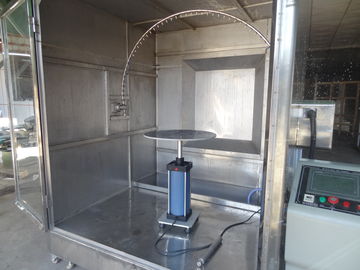

It has a 270 degree swing pipe and 360-degree rotating rod Sprinklers
Adjustable speed of the sample stage


Jet Nozzle (Meet IPX5 and IPX6 test)
1. 6.3mm nozzle diameter, for IPX5 test.  Water flow: 12.5L/min.
2. 12.5mm nozzle diameter, for IPX6 test. Water flow: 100L/min.
3. Meet IEC60529, IEC60335
4. Water Pumping System as option


Main Parameters

Model

HD-E712

Studio size

(D×W×H)80 ×130 ×100cm

Swing pipe diameter

0.4m, 0.6m, 0.8m, 1.0m (according to the size of the measured object to select the swing pipe size)

Pendulum tube angle

60 degrees ,vertical ± 90 and 180 degrees

Orifice

The removable design, pinhole 0.4mm, specially designed nozzle, spray rain rain water pressure 50-150kpa

Testing temperature

Room temperature

Specimen rotative speed

1-3r/min (Adjustable)

Power

1 phase, 220V, 5KW

Weight

approx.350kg


Features
1. Rotating rain and spray nozzles designed to IPX specifications
2. Speed control for the rotating spray nozzles
3. Stationary product shelf - A rotating shelf is optional
4. Water pressure regulators, gauges and flow meters
5. Water circulation system to reduce water consumption
6. Adjustable swivel angle
7. Replaceable swivel tubes
8. Nozzle fittings can be swiveled
9. Exchangeable nozzle fittings
10. Adjustable water volume flow
11. Measurement of water volume flow

Operating Specifications
1, after the power is turned on when the machine setting control program has finished running, the machine will stop running;
2, when the control program is set to run is completed, the machine will stop running;
3, the door handle to open the box, put the sample into the test sample holder; then close the door;
Note: placing the sample volume must not exceed 2/3 of the capacity of the test area;
4. The "TEMI880 Operating Manual", the first test set operation, and then into the test state according to the set operating mode;
5, when observed in the test chamber Ruoyu situation changes, can open the door light switch, via Windows knows the situation changes inside the open; displays temperature and humidity test chamber on the controller (if no humidity test the humidity value without display);
6, open the box door handles, the test specimens were removed from the sample holder to view the sample after the test and record test condition; the test is completed;
7. After the test is completed, turn off the power switch.



Precautions
1, in operation accidentally hear the sound, the need to stop to check, to be isolated after troubleshooting before reboot, so as not to affect the service life of equipment.
2, the drive mechanism must be regularly refuel, reducer must be added # 20 clean oil.
3, after positioning the device, you need the support frame propped up against the device after the test casters subject to vibration displacement.
4, rain chamber for a long time to run, such as found in water clogging the pipeline must be removed, rinsed with tap water and then up the assembly.
