Product Details:
|
| Power: | Electronic | Capacity: | 5kg Transcell Load Cell(USA) |
|---|---|---|---|
| Motor: | 400w Panasonic Servo Motor | Screw: | Ball Screw |
| Speed: | 0.1-500mm/min, Adjustable | Load Resolution: | 1/250,000 |
| Load Accuracy: | ≤0.5% | Testing Force Range: | 1g-5kg |
| High Light: | Computer Servo Utm Testing Machine,5kg Transcell Load Utm Testing Machine |
||
Product Description

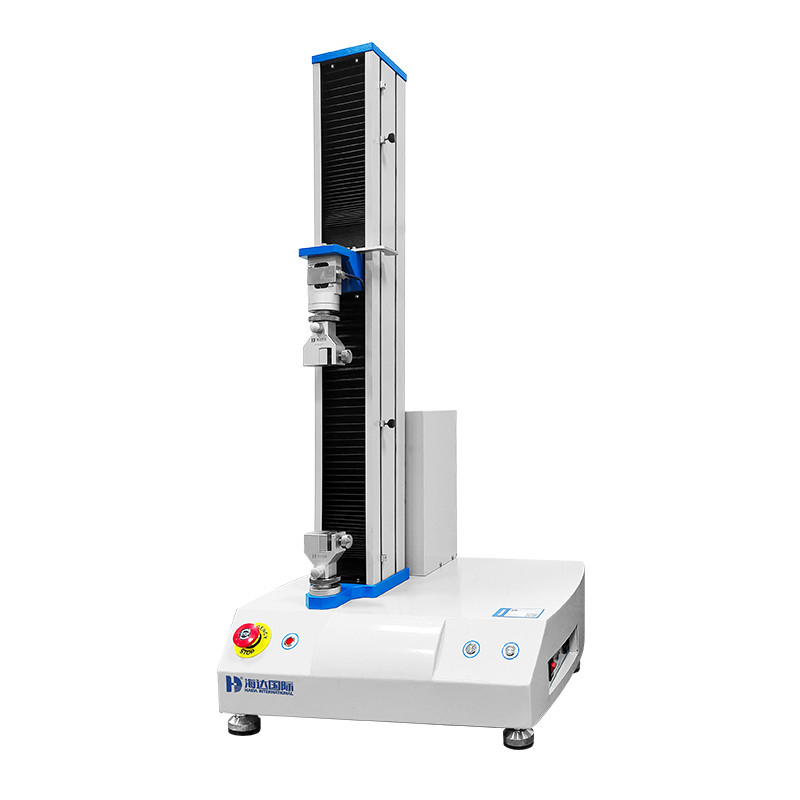

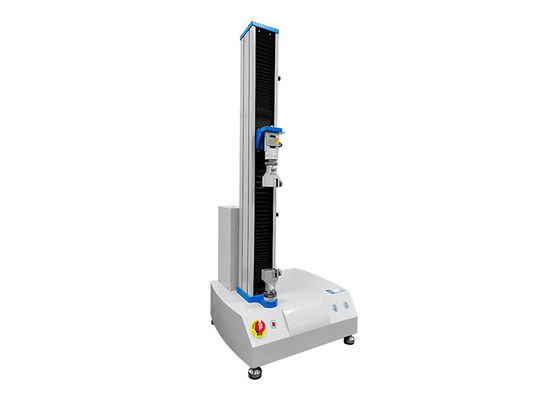

HD-B609C-S computer servo tensile testing machine is professionally suitable for releases stretching, peeling, deformation, tearing, bonding, piercing force, opening force, low-speed unwinding force, pull-out force and other performance tests of plastic films, protective film, composite materials, flexible packaging materials, plastic hoses, adhesives, adhesive tapes, stickers, medical patches, medical equipment, combination cover, metal foil, diaphragm, backing material, non-woven fabric, rubber, paper and so on products.
Technical Parameters
| Item | Description |
| Capacity | 5kg Transcell load cell(USA) |
| Motor | 400w Panasonic servo motor |
| Driver | 400w Panasonic servo driver |
| Screw | Ball screw |
| Control mode | Computer & Software |
| Speed | 0.1-500mm/min, adjustable |
| Stroke | 900mm(excluding fixture) |
| Load resolution | 1/250,000 |
| Load accuracy | ≤0.5% |
| Testing force range | 1g-5kg |
| Unit | gf/kgf/N//kN/LBf/T |
| Dimension | (L*W*H)515*520*1250mm |
| Load cell capacity | 5KG |
| Bearing/Bearing steel | 32004(Imported NSK) |
| Protective cover | Nylon cloth with size of 110*15*1500mm |
| Circuit board | HD-002-A |
| Weight | About 68KG |
| Power supply | 1∮ AC 220V |
