|Max. Force:||2000 Kg (20KN)||Load Cell:||Germany Brand Load Cell For High Accuracy|
|Control System:||PC With Windows 7 System||Motor:||Panasonic Servo Motor W/ DC Variable Speed Drive System, High-precision Mechanical Ball Screw Rod|
|Force Reading:||Kgf, Ibf, N, KN, T Etc||Stoke:||1100mm Including Fixture|
|Load Cell Resolution:||1/250,000||Test Speed:||0.01~500mm/min (adjustable)|
universal test equipment,
tensile testing equipments
Elongation tensile tester microcomputer tensile strength testing machine tear tester
HD-B609 Universal Test Machine.pdf
This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

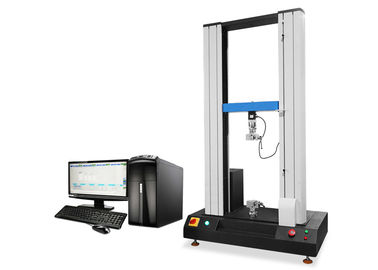

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Packaging Dimensions: (W*D*H) 690*1080*1790mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 280kg
HS Code: 9024800000
|Max. Force||2000 kg (20KN)|
|Load cell||Germany brand load cell for high accuracy|
|Control system||PC with windows 7 system|
|Motor||Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod|
|Force reading||kgf, Ibf, N, KN, T etc|
|Stoke||1100mm including fixture|
|Load cell Resolution||1/250,000|
|Load Precision||within ±0.5%|
|Test speed||0.01~500mm/min (adjustable)|
|Curves display||Load- elongation, Elongation-time, Time-elongation, Stress-strain|
|Data display||Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…|
Upper and lower limit switches
Load sensor with automatic retreat
1. Deformation under defined load: Test deformation under defined load of tested sample
2. Load under defined deformation: Test load under defined deformation of tested sample
3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
4. This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Languages: English.
