|Use Environment:||5C~+30C, 85%R.H||Power:||AC380V, Three Phase Five Wire, 10KW|
|Box Material:||Stainless Steel SUS304#||Sample And Xenon Lamp Distance:||300~375mm|
|Rainfall Cycle:||1~240min, Interval Is Adjustable||Rainfall Time:||1~9999min, Adjustable|
xenon test chamber,
accelerated aging calculator

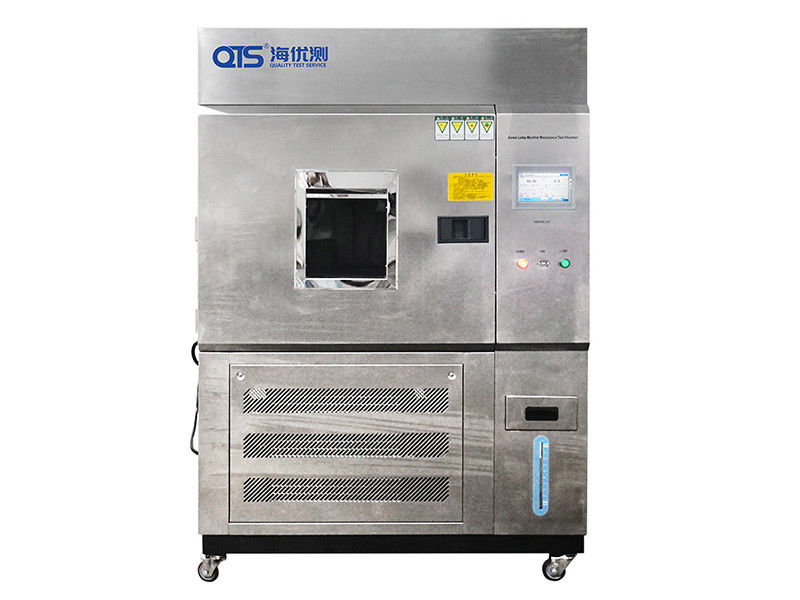

Stainless Steel Rubber Accelerated Aging Chamber Weathering Test Chamber
PID Enviroment Ac380v , Three Phase Five Wire , 10kw Xenon Arc Aging Test Chamber is used for the examination of the ultraviolet irradiation resistance capacity when the materials/products are exposed in ultraviolet irradiation environment. Ultraviolet light is a term used to describe electromagnetic radiation with ultraviolet waves shorter than light visible to humans.UV light is present in sunlight and can cause chemical reactions in certain materials. This reaction caused them to glow,which is called fluoresce. It is widely applied to coating ink, paint, resin, plastics, printing, packaging, aluminum profile,cement, automobile, motorcycle, cosmetics, metal, electronic, electroplating, medicine, etc.
(1) Condensation device simulates the effect of humidity of outdoor, meeting 100% humidity.
(2) Electronic-eye irradiance control system.
(3) Use blackboard temperature sensor providing precise temperature and recurring test result.
(4) Perform humidifying, condensation and water spraying circulating test.
(5) Irradiance is calibrated by CR-10 calibrator and automatic calibration procedure (Paten technology)
(6) Specimen size and quantity: 75mm×300mm 24pcs, 75mm×150mm 40pcs
1. Inner chamber and exterior chamber material: SUS304 stainless steel.
2. Heating: Electrical heater with rapid temperature rise and temperature distribution
3. RS232 communication interface
4. Power leakage circuit breaker control circuit, overload short circuit alarm, over-temperature alarm water shortage protection.
|Inner Box Size (DWH)||950950900mm|
|Outside Dimension (DWH)||130015001900mm|
|Humiture Range||(RT+10)~70C; 30~98%RH|
|Humiture uniformity||2C; 3%RH|
|Rainfall time||1~9999min, adjustable|
|Rainfall cycle||1~240min, interval is adjustable|
|Xenon lamp light||xenon long-arc lamp, 6KW10%, 290-800nm, 1000W/m2200|
|Sample spinning machine speed||1~5r/ min (adjustable)|
|Sample and xenon lamp distance||300~375mm|
|Box material||Stainless Steel SUS304#|
|Insulation materials||Superfine heat insulation cotton|
|Insulation body||Superfine glass fabric|
|Circulation system||Single cycle, centrifugal fan|
|Control system||Germany KLOCKNER-MOELLER progammable controler|
|Gas processing||dischager for fector and harmful gas|
1, Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
2, Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.
3, Temperature sensor: PT100 platinum resistance temperature body.
4, Equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.
5, Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once open the door.
