Product Details:
|
| Weight: | Approx.85kg | Power: | 1phase,AC220V, 50HZ |
|---|---|---|---|
| Elongation Accuracy: | 0.001mm | Display Device: | LCD Or PC |
| Resolution: | 1/250,000 | Accuracy: | ±0.5% |
| Motor: | Taiwan 400w Servo Motor | Screw: | High Precise Ball Screw |
| High Light: | universal test equipment,tensile strength tester |
||
HD-B617 Universal Test Machine.pdf
Product Description:

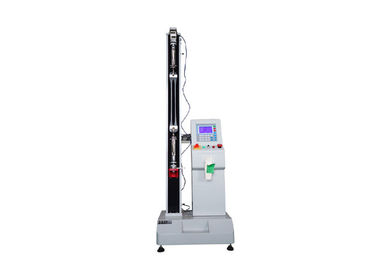

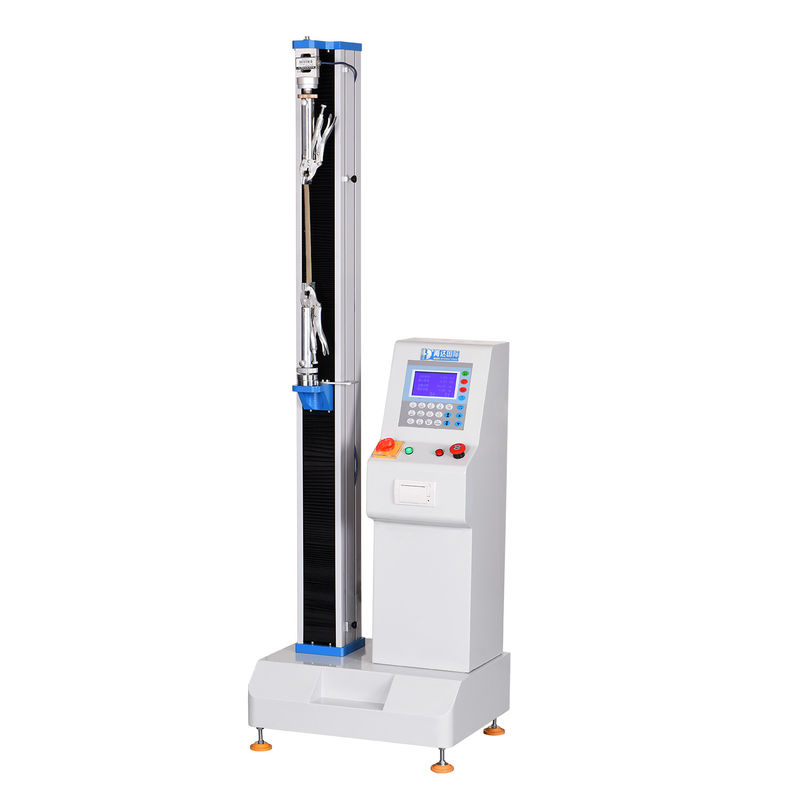

Tensile test machine can test various materials (both finished and semi-finished products ) of tensile strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .
STANDARD FEATURES
| Item | Description |
| Frame capacity | 500kg |
| Load cell brand | China brand, 500kg (5,10,50,100,200kg are optional) |
| Load accuracy | 1% F.S |

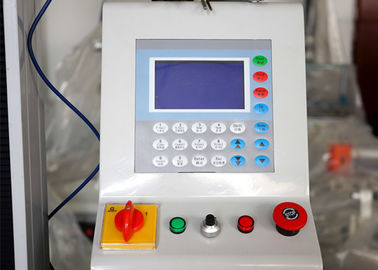

| Control system | LCD with build-in printer /PC with windows 7 system |
| Motor | Adjustable-speed motor with reduction box, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1400mm including fixture |
| Test speed | 50~300mm/min (adjustable by rotary knob) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
APPLICATIONS
