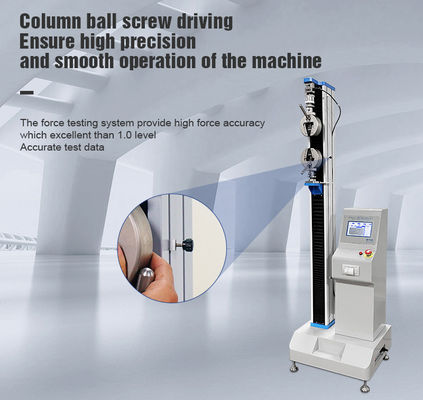

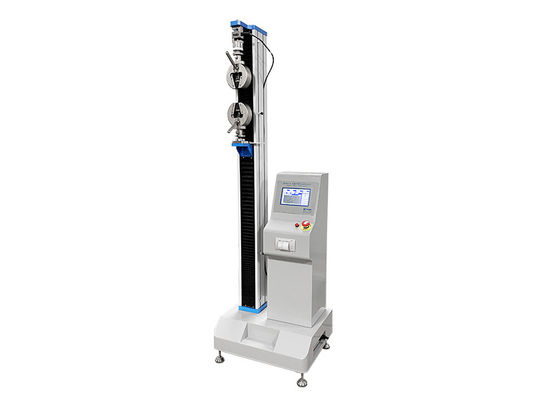

Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester For Plastic Rubber

Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester For Plastic Rubber

Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester  For Plastic Rubber
video
Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester  For Plastic Rubber
Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-B617
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 Piece / Pieces Per Month
Contact Now
Detailed Product Description
Grip: Tensile Grip, Tear Force Grip Sensor: Celtron Load Cell
Weight: Approx.85kg Power: 1phase,AC220V, 50HZ
Elongation Accuracy: 0.001mm Resolution: 1/250,000
Accuracy: ±0.5% Test Speed: 0-500mm/min (adjustable )
Max. Stroke: 1200mm (excluding Fixture) Motor: Taiwan 400w Servo Motor
High Light:

digital universal testing machine

,

universal material tester

  Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester For Plastic Rubber


 Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester  For Plastic Rubber 0HD-B609B-S Universal Test Machine.pdf




Product Description


integral stroke transducer tester Load transducer Electronic Tensile Tester is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

The machine is calibrated as ASTM E4, ISO 75001 international standard. By adding different grips it can do the test of ISO 527, ISO 8295, ISO 37, ISO 178, ISO 6892, ASTM D412, ASTM C1161, ASTM D882, ASTM D885ASTM D918, ASTM D1876, ASTM D4632 and all the force and extension JIS, DIN, BSEN testing standards.



Main Technical Parameters of
Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester For Plastic Rubber:



Items

Specification

Sensor

Celtron load cell

Capacity

5, 10, 20, 25, 50, 100, 200kg

Unit Switchover

G, KG, N, LB

Display Device

LCD or PC

Resolution

1/250,000

Accuracy

±0.5%

Max. Stroke

1200mm (excluding fixture)

Test Speed

0-500mm/min (adjustable )

Motor

Taiwan 400w servo motor

Screw

High Precise Ball Screw

Elongation Accuracy

0.001mm

Power

1phase,AC220V, 50HZ

Weight

Approx.85kg

Accessories

One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual



Features



NEW DESIGN


The compact size fits easily on tables.
Lower table height (20% lower) and larger work space
This makes it easier to exchange jigs and samples and to perform a wide variety of operations.


HIGH PERFORMANCE


Electronic Tensile Tester uses a high-precision load cell that guarantees accuracy to within ±0.5% of the indicted value over a wide range from 1/500 to 1/1 of the load cell capacity.
Tests can be performed at up to maximum load capacity levels across the entire test speed range from 0.001 to 2000 mm/min (HS model).
Maximum test speed: 2000mm/min, Return speed: 3000mm/min (HS model)
The high return speed significantly reduces the wait time between tests, even for those with long displacements.
Electronic Tensile Tester can measure 1000 data per sec, enabling accurate detection of peak force.


IMPROVED USABILITY


Enhanced usability by the adjustable controller
This allows for adjusting the control panel position and angle to match the posture of the operator.
Visual, user-friendly TRAPEZIUMX software
4 software platforms - Single, Cycle, Control, and Texture - enable various types of evaluation.
Power-saving function reduces power consumption by over 55% compared to previous models.


Optional Note:

How to buy electronic universal testing machine:

First, the different materials testing machine needs:

  1. Metallic materials testing machine requirements

  2. Plastic material (polymer) of the test machine requires

  3. Plastic pipe requirements for testing machines

  4. Rubber material testing machine requirements

  5. Textile fiber materials required for the testing machine

  6. Required spring bearing on the testing machine

  7. Film, foil material testing machine of claim

  8. Products (or product) of the test machine requires


Second, there are different needs in different sectors of the test machine.



Machine maintenance
Regularly check the jaw parts of screws, if found loose, tighten timely;
Sliding surface inlay plate and liner contact surface of the dovetail groove on the liner should be kept clean, regularly coated with a thin layer of MoS2 (molybdenum disulfide) grease;
Check the drive sprocket regularly and, if found loose, place the tensioner re-tensioning.

Application of Industry:


Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester For Plastic Rubber​ widely used measure quality; rubber and plastics; metallurgical steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; civilian nuclear energy; civil aviation; universities; research laboratory; inspection arbitration, technical supervision departments; building ceramics; petrochemicals; other industries.

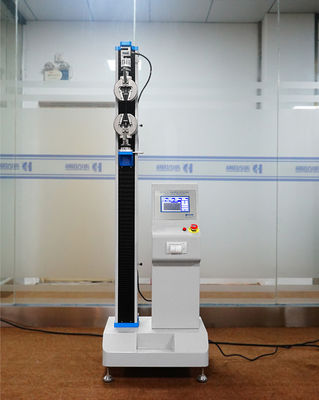

Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester For Plastic Rubber view:

Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester  For Plastic Rubber 1



Packaging & Shipping

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
