Product Details:
|
| Sensor: | Celtron Load Cell | Weight: | Approx.85kg |
|---|---|---|---|
| Power: | 1phase,AC220V, 50HZ | Elongation Accuracy: | 0.001mm |
| Display Device: | LCD Or PC | Resolution: | 1/250,000 |
| Accuracy: | ±0.5% | Max. Stroke: | 1200mm (excluding Fixture) |
| Use: | Electronic Tensile Testing Machine | ||
| High Light: | tensile testing equipments,tensile strength tester |
||
HD-B617 Universal Test Machine.pdf
Product Description:

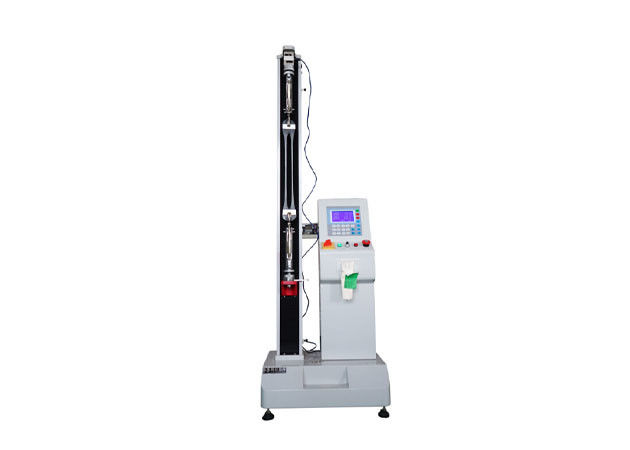

Tensile test Equipment is used to test the tensile strength/pulling strength/peeling strength of paper, cardboard, plastic or rubber. It adopts precise auto control and data acquisition system. The Max tensile strength, elongation, deformation can be displayed on the LCD after test. And equipped with mini-printer, the test results can be printed
STANDARD FEATURES
| Item | Description |
| Frame capacity | 500kg |
| Load cell brand | China brand, 500kg (5,10,50,100,200kg are optional) |
| Load accuracy | 1% F.S |

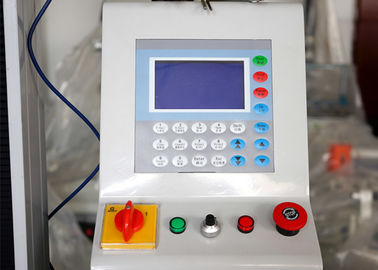

| Control system | LCD with build-in printer /PC with windows 7 system |
| Motor | Adjustable-speed motor with reduction box, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1400mm including fixture |
| Test speed | 50~300mm/min (adjustable by rotary knob) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
APPLICATIONS
Product Features
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
