Product Details:
|
| Humiture Range: | 30-98%RH | Rainfall Cycle: | 1-240min |
|---|---|---|---|
| Certificate: | ISO9001: 2008 | Warranty Period: | 12 Months |
| Studio Size: | 95Dx95Wx90Hcm | Box Material: | Stainless Steel SUS304# |
| Insulation Materials: | Superfine Glass Fabric | Control System: | Germany KLOCKNER-MOELLER Progammable Controler |
| Gas Processing: | Dischager For Fector And Harmful Gas | Use Environment: | 5°C~+30°C, ≤85%R.H |
| High Light: | ozone test chamber,xenon test chamber |
||
Larger Capacity Xenon Aging Chamber Three Separate Xenon Lamps Aging Machine
Product Introduction:
larger capacity Xenon Aging Chamber three separate xenon lamps Aging machine i produce the most realistic reproduction of full spectrum sunlight, including ultraviolet, visible light and infrared radiation. For many materials, exposure to the full spectrum is necessary to provide an accurate simulation, especially when testing for color change and lightfastness. Usually thought test sample in 70℃within the tester 24 hours, approximately is equal to the natural environment six months.It can test rubber,plastic,LED and etc.
Features:
Key Features:
Remarkably Simple User Interface
AUTOCAL Calibration
Full Spectrum Xenon Lamps
Long-Life Optical Filters
Programmable Water Spray
SOLAR EYE Irradiance Control
Precision Temperature Control
Versatile Specimen Mounting
Relative Humidity Control
Specifications:
| Model | HD-711L Xenon Lamp Aging Chamber |
| Inner Box Size (D×W×H) | 950×950×900mm |
| Outside Dimension (D×W×H) | 1300×1500×1900mm |
| Humiture Range | (RT+10)~70°C; 30~98%RH |
| Humiture uniformity | ± 2°C; ± 3%RH |
| Rainfall time | 1~9999min, adjustable |
| Rainfall cycle | 1~240min, interval is adjustable |
| Xenon lamp light | xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m2±200 |
| Heating/humidifying power | 2.0KW/2.0KW |
| Sample spinning machine speed | 1~5r/ min (adjustable) |
| Sample and xenon lamp distance | 300~375mm |
| Box material | Stainless Steel SUS304# |
| Insulation materials | Superfine heat insulation cotton |
| Insulation body | Superfine glass fabric |
| Circulation system | Single cycle, centrifugal fan |
| Control system | Germany KLOCKNER-MOELLER progammable controler |
| Gas processing | dischager for fector and harmful gas |
| Power | AC380V, three phase five wire, 10KW |
| Use environment | 5°C~+30°C, ≤85%R.H |
| Standard features | 1. Filtering screen viewing window; 2.Moistureproof lamp |
| Security Protection | Security device for circuit break, |
| high pressure of the compressure, high temperature alarm |
Operation Control System:
1. irradiation system:
1) Light source: air-cooled full spectrum lamp, lifetime> 1000 hours.
2) source Trigger: fully electronic automatic trigger, trigger time <2S.
3) irradiance measurements: Beijing Normal University irradiation light intensity meter.
4) Unique special filters.
2. Temperature Control System:
1) Heater: electric heating nichrome heater.
2) Temperature control: Use a metal surface of the module body is black chrome and the sensor is fixed to the surface to test the effective temperature; to represent the component temperature (distribution two black modules).
3) Sensor: Platinum resistance .PT100Ω / MV.
3. The system of rain:
rain water supply system equipment, time relay, nozzles and other components of the spray cycle is adjustable. (Selected by user)
4. Controller:
1) can choose to import their own needs or the touch screen controller intelligent digital control instrument according to the user.
2) Time is controlled by UOB control systems, time range 0 ~ 999H.
5. protection system: power overload, short circuit protection; ground protection; over-temperature protection, water protection. To protect the device, all alarms are automatically cut off the power, and issue voice prompts.
Window Glass Filters --Window glass filters produce spectra equivalent to sunlight coming through window glass. This spectrum can also simulate other indoor lighting such as the harsh lighting found in a typical commercial or office environment. Window glass filters are used for indoor materials such as printing materials or textiles. Four different window glass filters are available: Window - Q, Window - B/SL, Window SF-5 and Window - IR.
Extended UV Filters --Extended UV filters allow excess UV, below the normal cut-on of natural sunlight. They are used to produce faster or more severe test results. Extended UV filters are specified in some automotive test methods and are sometimes used for aerospace applications. There are two available xenon lamps Aging machine filters of this type: Extended UV - Q/B and Extended UV - Quartz.
Xenon Weathering Test Chamber Inspection and Maintenance
Test before the test to check whether or not clean cotton harden, or need to be replaced.
Cloth test once every three months to check the water level
Water tank before each test unscheduled inspections
Distribution room and maintenance every six months
Inner box maintenance once every three months
Body care on a regular basis every six months

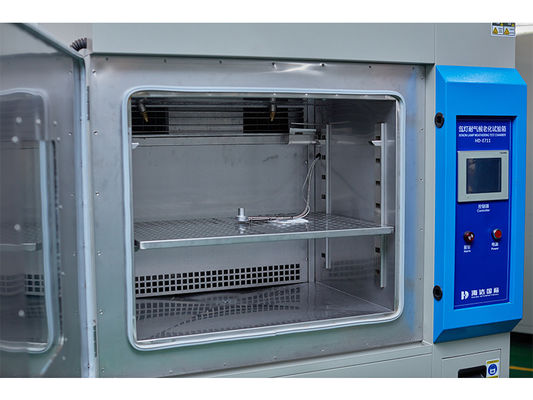

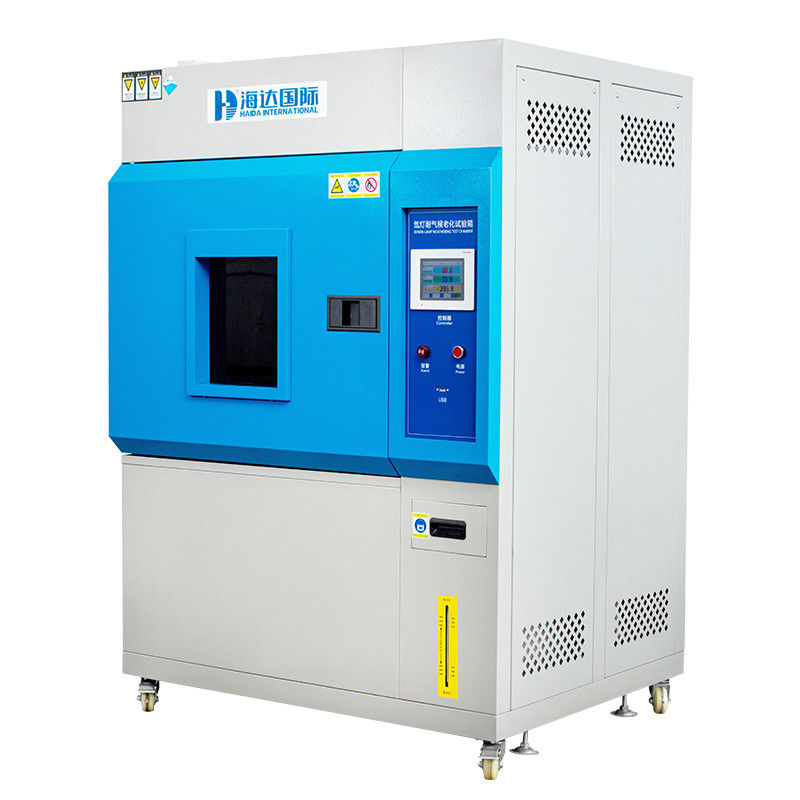

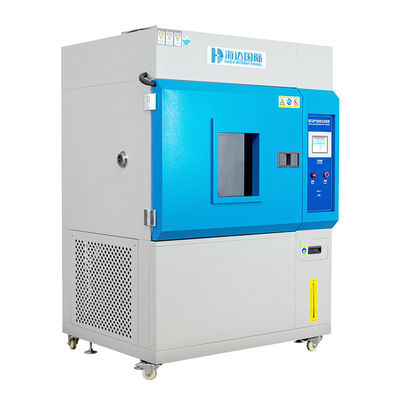

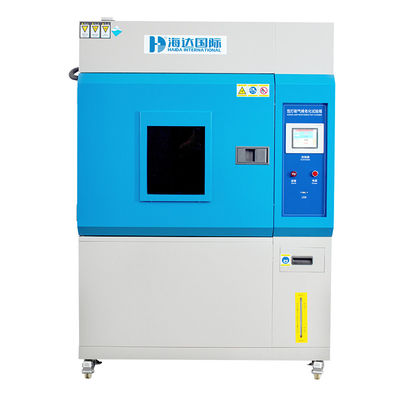

Pictures:
