Product Details:
|
| Frame Capacity: | 10T | Load Accuracy: | 0.5% F.S |
|---|---|---|---|
| Control System: | PC With Windows 7 System | Force Reading: | Kgf, Ibf, N, KN, T Etc |
| Horizontal Test Space: | ≤400mm | Test Speed: | 0.1~300mm/min |
| Software: | TM 2101 | Brand: | Haida |
| High Light: | universal test equipment,tensile testing equipments |
||

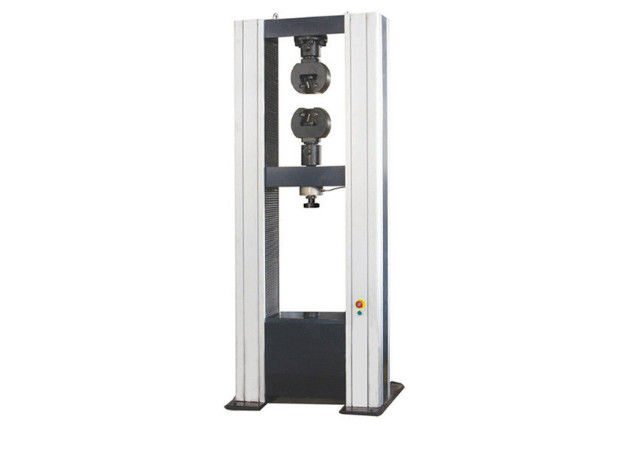

Capacity Tensile Strength Tester AC Motor Cable Universal Tensile Strength Tester
1. Application
Universal testing machine is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,ect of specimen, semi product and finished product in the field of rubber, plastic, metal, nylon,fabric,paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection,Mechanics Research and Material Development.
2. Features of universal testing machine
♣ Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily.
♣ Using a single-screen operation; do not need to switch the screen;
♣ With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
♣ The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;
♣ Choosing translational, comparative mode at the same time to make a number of curve data comparison
♣ With a variety of measurement units, Measure In Imperial & Metric are switchable;
♣ With self-return & auto-correction function;
♣ With automatic magnification function, in order to achieve the most appropriate size of the graphics;
3. Standard of universal testing machine
♠ ASTMD903
♠ GB/T16491
♠ GB/T1040
♠ CNS- 11888
♠ GB/T8808
♠ GB13022
♠ JIS K6854
♠ GB/T 2790/2791/2792
♠ PSTC-7
4. Technical Parameters of universal testing machine
| Item | Description |
| Frame capacity | 10T |
| Load cell brand |
USA brand transcell load cell for high accuracy 10T (2T, 5T are optional) |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1100mm including fixture |
| Horizontal test space | ≤400mm |
| Test speed | 0.1~300mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
5. Specification of main engine:
♥ Motor system: Panasonic servo motor +Panasonic servo driver +ball screw (Taiwan)+Leeming reduction gears + synchronous belt drive
♥ Control system: ♦ TM2101 computer servo system
♦ Back to origin automatically after the test
♦ store data automatically or by manual operation
♥ Data transmission:RS232
♥ Computer servo system :Desktop computer servo control tensile tester dedicated system
♥ Whole displacement: encoder (2500P/R), ascending 4 times precision
♥. Display modes: Windows Interface display
♥. Displacement resolution: 0.001mm
♥. Using windows interface to test software it can achieve to set speed, load, power time, Breakpoint proportion,much order control mode and meet different test requirement.
♥. Safety device: ♦overload emergency stop device,
♦fluctuation travel limit device,
♦leakage automatic broken electricity system,
6. Software:
The TM2101 measurement and control system is designed purposely for microcomputer controlled electronic universal testing machine, microcomputer controlled universal hydraulic testing machine and microcomputer controlled compress testing machine, used for tension, compress, bend, shear, tearing andpeel test. this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
