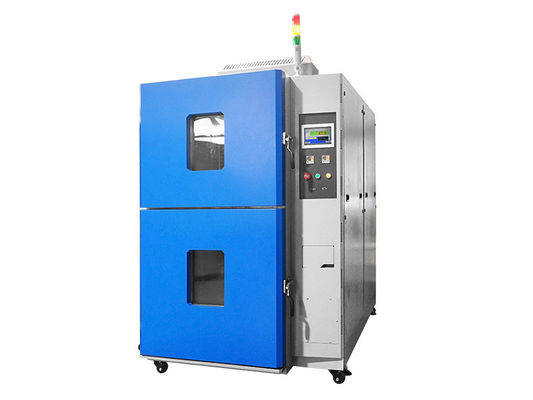

Hight Low Tempreature Thermal Shock Chamber Three-zone chamber

Hight Low Tempreature Thermal Shock Chamber Three-zone chamber

    • Hight Low Tempreature Thermal Shock Chamber Three-zone chamber
    • Hight Low Tempreature Thermal Shock Chamber Three-zone chamber
    • Hight Low Tempreature Thermal Shock Chamber Three-zone chamber
  • Hight Low Tempreature Thermal Shock Chamber Three-zone chamber

    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: CE,,ISO
    Model Number: HD-E703

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Strong Wooden Case
    Delivery Time: 15 Days After Order
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 75 Piece / Pieces Per Month
    Contact Now
    Detailed Product Description
    Temp. Heat Up Time*3: Ambient Temp. To +200°C Within 30min Pre-cool Lower Limit: -65°C
    Temp. Pull Down Time*3: Ambient Temp. To -65°C Within 70min Temp. Recovery Time: Within 10 Min.
    External Material: Cold-rolled Rust-proofed Steel Plate Test Area Material: SUS304 Stainless Steel
    Power Supply: AC380V, 50/60Hz, Three Phase , 30A Cooling Water Supply Pressure*6: 02~0.4Mpa
    Cooling Water Supply Rate*6: 8m³ /h Noise Level: 70 DB Or Lower
    High Light:

    environmental testing equipment

    ,

    environmental lab testing equipment

    Hight Low Tempreature Thermal Shock Chamber Three-zone chamber



    Hight Low Tempreature Thermal Shock Chamber Three-zone chamber 0Thermal Shock Chamber.pdf



    Specifications

    Thermal Shock Test Chamber
    1. Manufacturer
    2. Material:SUS#304 stainless steel
    3. Reasonable price
    4. 2 year after sales servic





    Ambient temp. to +200 °C within 30min Cool and Heating Thermal Shock Testing Chamber is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.



    Usage:



    Ambient temp. to +200 °C within 30min Cool and Heating Thermal Shock Testing Chamber  As one must-have test equipment of metal industry, plastic industry, rubber industry, electronic industry and related material industries, it can be used to test the endurance of material structure or composite material in constant environment of instant ultra-high temperature and ultra-low temperature, thus to test he chemical change or physical damage of test specimens caused in heat expansion and cold contraction in the shortest time.



    Characteristics:


    1. The most advanced new and Euramerican explosion-proof handle, perfect modelling design, high texture appearance.
    2. Use large human-computer touch conversational LED man-machine interface controller, simple operation, easy to learn, it is stable and reliable.
    3. The way of shock is changing the wind grid to pull the cold and hot temperature into testing area to enforce test.
    4. Shocking time:0.1~999.9h;  cycle period:1~9999times, settable.
    5. Cycle and defrost ing count can be set, so does automatic defrosting or manul defrosting.
    6. It shows the the status and curve when working together with explaination and eliminateing method when stoppage.
    7. Euramerican imported efficient repeated compressing freezing unit, low noise, energy saving.
    8. Use PID automatic calculating control, high precision of temperature control.
    9. Can make automatic cycle shock or manual selective shock and can choose two groove or three groove cold , heat shock.
    10. Can use as a high temperature boc or low temperatue box independently.
    11. Use environmental refrigerants R404,R23 whitch cause no poluution to the ozone.





    Specifications



    System

    Two-zone test by means of damper switching

    Three-zone chamber

    Model

    HD-E703-50A/HD-E703-50W

    HD-E703-100A/HD-E703-100W

    Customized

    Performance

    Test area

    High temp. exposure range*1

    +60~ to +200°C

    Low temp. exposure range*1

    -65to 0 °C

    Temp. fluctuation *2

    ±1.8°C

    Hot chamber

    Pre-heat upper limit

    +200°C

    Temp. heat up time*3

    Ambient temp. to +200°C within 30min

    Cold chamber

    Pre-cool lower limit

    -65°C

    Temp. pull down time*3

    Ambient temp. to -65°C within 70min

    Temp. recovery (2-zone)

    Recovery conditions

    Two-zone: High temp. exposure +125°C 30 min, Low temp. exposure -40°C 30 min; Specimen 6.5 kg (specimen basket 1.5kg)

    Temp. recovery time

    Within 10 min.

    Construction

    External material

    Cold-rolled rust-proofed steel plate

    Test area material

    SUS304 stainless steel

    Door*4

    Manually operated door with unlock button

    Heater

    Strip wire heater

    Refrigeration unit

    System*5

    Mechanical cascade refrigeration system

    Compressor

    Hermetically sealed scroll compressor

    Expansion mechanism

    Electronic expansion valve

    Refrigerant

    High temp side:R404A, Low temp side R23

    Cooler

    Stainless steel welded plate heat exchanger

    Air circulator

    Sirocco fan

    Damper driving unit

    Air cylinder

    Fittings

    Cable port with diameter 100mm on the left side (right side and tailor made diameter size are available as options), specimen power supply control terminal

    Inside dimensions (W x H x D)

    350 x 400 x 350

    500 x 450 x 450

    Customized

    Test area capacity

    50L

    100L

    Customized

    Test area load

    5 kg

    10 kg

    Customized

    Outside dimensions (W x H x D)

    1230 x 1830 x 1270

    1380 x 1980 x 1370

    Customized

    Weight

    800kg

    1100kg

    N/A



    Utility requirements



    Allowable ambient conditions

    +5~30°C

    Power supply

    AC380V, 50/60Hz, three phase , 30A

    Cooling water supply pressure*6

    02~0.4Mpa

    Cooling water supply rate*6

    8m³ /h

    Operating cooling water temp. range

    +18 to 23 °C

    Noise Level

    70 dB or lower

    Hight Low Tempreature Thermal Shock Chamber Three-zone chamber 1
