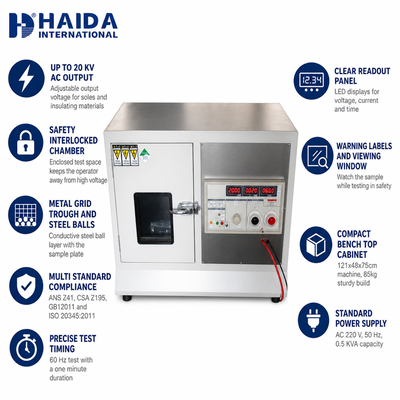

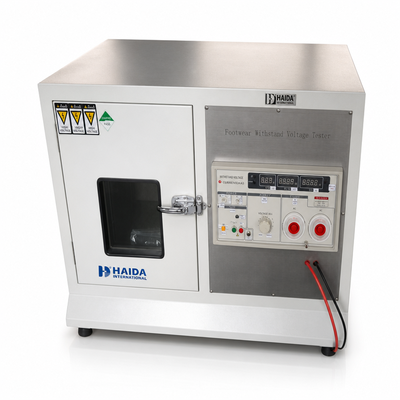

HAIDA Footwear Withstand Voltage Tester Shoe Sole Insulation Voltage Testing Machine ISO 20345 Shoe Testing Equipment

Multiple Standard Compliance: Designed to test whether footwear soles or insulation materials can withstand a given voltage value, with reference to the ANS Z41, CSA Z195, GB 12011 and ISO 20345 2011 standards.

Adjustable High Voltage Output: Output voltage AC 0 to 20KV adjustable with a capacity of 0.5KVA and input voltage AC 220V, so operators can raise the voltage smoothly and test insulation materials at the required level.

Precise Voltage Ramp and Timing: Test voltage rises at 1000V per second to the designated voltage, with test frequency and time set at 60HZ for 1 minute to follow the standard test procedure.

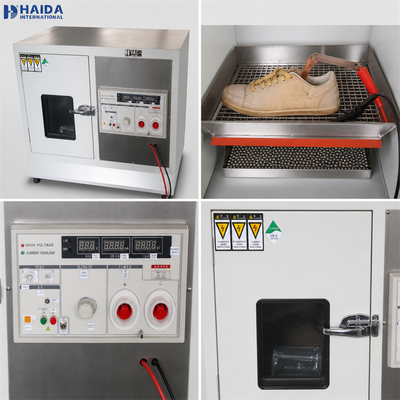

Complete Electrode and Sample Fixtures: Supplied with a conductive steel electrode of 3mm diameter, an inside electrode steel layer depth above 30mm, and a metal net sample plate of 40 x 20mm.

Compact Stable Structure: Test space 58 x 38 x 54cm and machine size 121 x 48 x 75cm with a weight of 85kg, powered by AC 220V 50HZ for stable daily use in footwear laboratories.

For over two decades Haida Equipment has been a trusted global partner in reliability testing solutions Headquartered in Dong Guan our modern 17 568 sq m manufacturing hub houses five specialized production lines integrating R D manufacturing and calibration services under one roof In addition to our hardware expertise we possess robust in house software development and upgrade capabilities supported by independent intellectual property rights This dual strength ensures seamless system integration advanced data management and future ready adaptability for our clients
Our testing equipment validates quality and durability across key industries including packaging electronics automotive aerospace new energy and certified laboratories This broad applicability is grounded in rigorous quality assurance Every stage from material sourcing to final assembly is governed by our ISO 9001 certified processes delivering consistent and reliable performance
To support our international clients we offer comprehensive services through a dedicated overseas team and local partners Services extend from remote technical support to on site installation training and maintenance all designed to minimize operational downtime
Our core product range includes material testing systems environmental simulation chambers packaging transport testing furniture testing machines battery testing equipment and vibration test systems We also engineer custom non standard solutions tailored to specific requirements All products comply with international standards such as CE UL and GSA meeting regional regulatory energy efficiency and environmental guidelines to facilitate global market access
Guided by our mission to create value for customers and enhance happiness for employees Haida Equipment is committed to becoming a globally recognized brand in reliability testing equipment delivering trust innovation and excellence across industries.
