Towline mechanical life testing machine

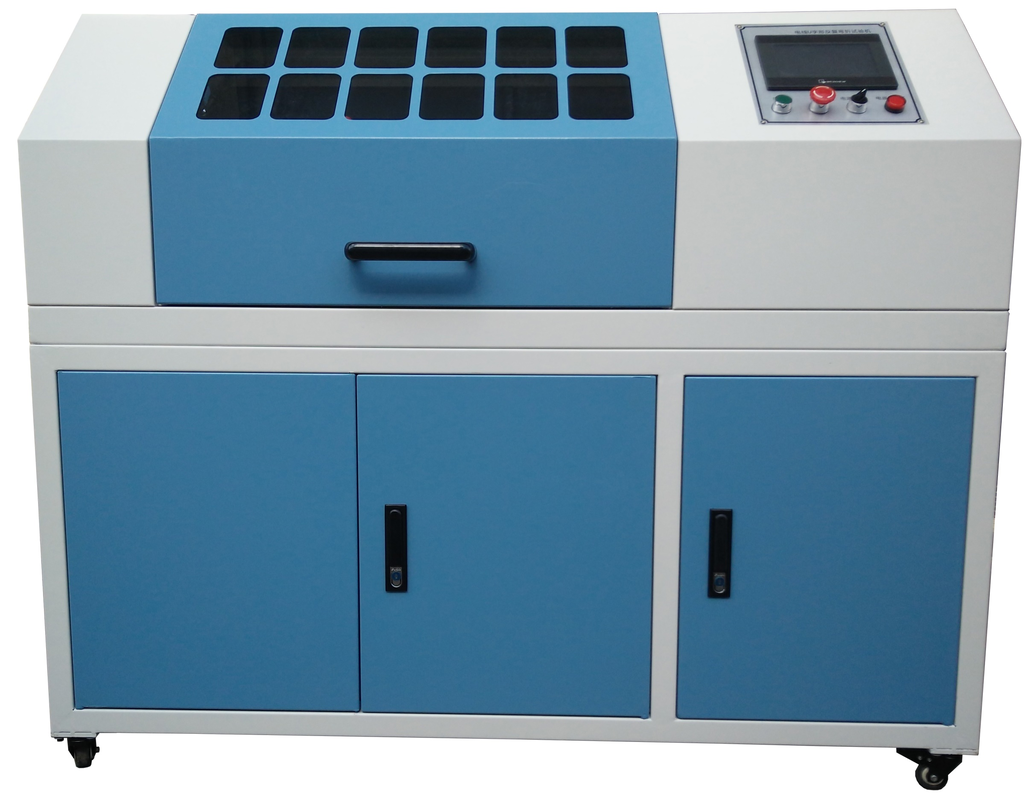

Large Image : Towline mechanical life testing machine

Product Details:

Contact Now

Towline mechanical life testing machine

Description

Highlight:

Towline mechanical testing machine

Lab test machine with warranty

Mechanical life testing equipment

This tester applies a specified load to wire specimens to simulate movement alongside moving devices such as robotic manipulators. Via continuity testing or an optional resistance monitoring system, it evaluates the mechanical fatigue life of cables based on wire breakage or the rate of resistance change (optional feature).

The test bench is equipped with a glass viewing window fitted with safety interlock switches and protective covers for all moving parts to effectively prevent safety hazards. An emergency stop button is also provided to halt machine operation under urgent conditions.

Item	Parameters
Test Stations	3 stations
Test Stroke	1 meter; the moving distance of test specimens is 1 meter. Imported linear guide rail with an effective stroke of 1 meter. The travel distance can be customized within 1 meter according to customer requirements.
Cable Clamp Bending Radius	20 ~ 200 mm (manually adjustable; adjust the R radius based on drag chain size; standard value is 5 times the cable outer diameter)
Test Speed	10 ~ 50 cycles per minute (max. 2 meters / 50 cycles per minute; one cycle refers to a complete back-and-forth movement)
Specimen Monitoring	1 independent detection circuit for each station. Each circuit can connect multiple wire cores in series (supports monitoring of 100 wires / 50 channels). The 50-channel monitoring system is equipped with separate cycle counters and continuity indicator lights for each channel. The red light illuminates without counting upon wire breakage, and the machine stops automatically when all wires are broken.
Alarm Detection	Wire core breakage (continuity monitoring system) or wire core resistance degradation (resistance monitoring system); alarm prompts displayed on the PLC control screen
Total Counter	Customizable range from 1 to 99,999,999; the machine will stop automatically once the preset total cycle count is reached
Individual Counters	50 independent counters for each station, counting continuously from 1 to 99,999,999
Driving Mode	Servo motor + synchronous belt
Overall Structure	Square steel frame, iron sheet enclosures, iron plates + transparent acrylic protective cover, 1 set of electrical control box
Power Supply	AC 220V / 50Hz
