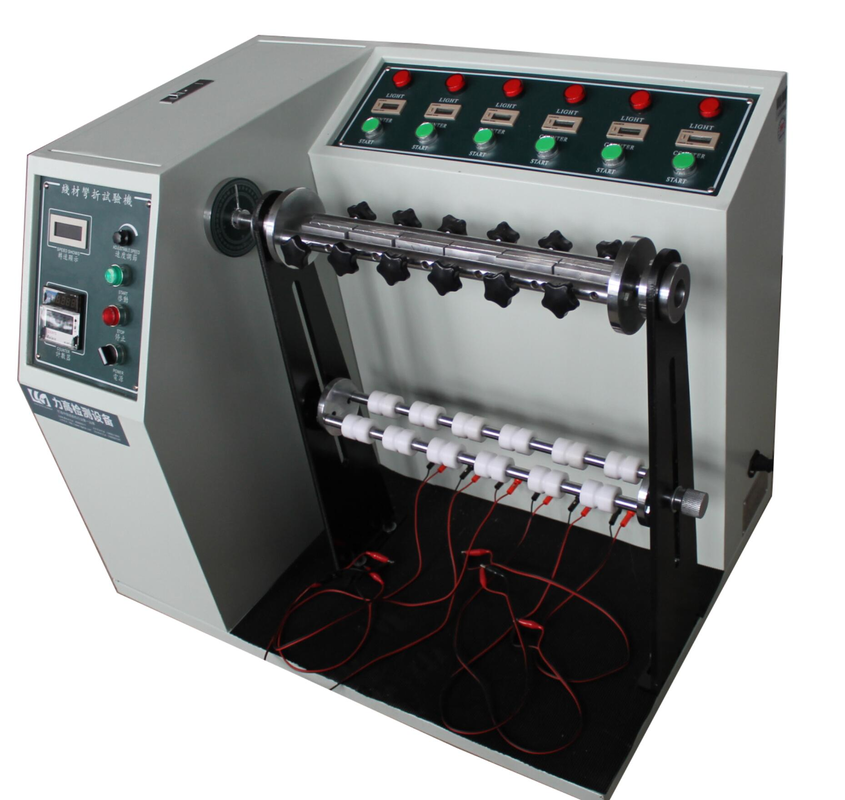

Bending Test Machine

Large Image : Bending Test Machine

Product Details:

Contact Now

Bending Test Machine

Description

Highlight:

Bending Test Machine for lab use

Bending Test Machine with warranty

Lab Test Machine for bending tests

Compliance Standards

Conforms to Clause 3.2 of GB/T 5023.2-2008, Clause 3.2 of IEC 60227-2:2003, Clause 7.3 of GB/T 5054.1-2008, ISO 441-1:2005 and other relevant standards.

Scope of Application

This equipment is designed for wire bending tests. The test procedure is as follows: secure the test specimen onto the fixture and apply a specified load. The fixture swings left and right during testing. After a preset number of cycles, inspect the wire breakage rate; alternatively, record the total swing cycles when the wire loses electrical continuity. The tester features automatic cycle counting and will halt operation automatically once the specimen fails to conduct electricity.

Main Technical Parameters

Parameter	Value
Test Stations	6 stations
Bending Fixtures	1 pair each of R1mm, R2.5mm, R3.0mm, R4.0mm, R5.0mm, R6.0mm, R12mm and R25.4mm
Remarks	6 pairs pre-installed on the machine; 2 pairs supplied as spare parts randomly
Swing Angle	Continuously adjustable from ±30° to ±90°
Swing Speed	Adjustable from 10 to 60 cycles per minute (c.p.m)
Total Counter	Programmable and counting range 1~999999, displayed via high-brightness LED digital tubes
Individual Counters	6 independent counters with 1~999999 range, LCD display
Load Weights	Standard 500g weights as specified in GB/T 5023; additional weights available at extra cost
Test Load	Electrical continuity monitoring
Test Wires	Supports 6 test specimens simultaneously
Wire Break Indication	Φ25mm flat-top high-brightness red LED indicator
Mechanical Drive System	AC motor driving crank-slider mechanism via reduction gearbox
Overall Dimensions	W870mm * D610mm * H820mm
Power Supply	AC 220V, 50Hz, 10A
Net Weight	80kg
