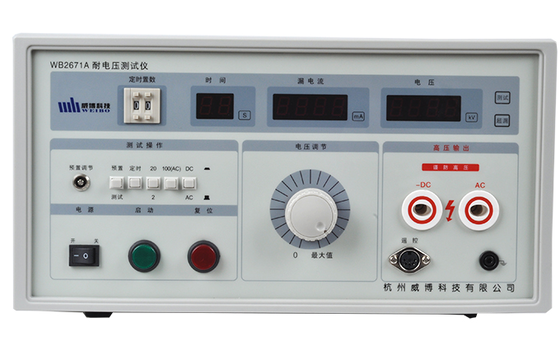

Cable Hipot Tester Withstand Voltage Tester with AC0～5KV Output Voltage 1602 LCD Display and 0.01～200.0mA Current Range

GB4706.1-2005, GB/T5013, GB/T5023, GB2099, UL2556, UL758-2006 Clause 46, JISC3005, VDE0620, etc.

(The withstand voltage tester is a compressive strength measuring instrument, mainly used for electrical leakage safety testing in products. It can test the fault voltage and leakage current of electrical safety performance indicators. The measurement of various objects is intuitive, accurate, and fast, and it can be used as a high-voltage source to test component and overall performance.)

Suitable for testing the insulation level of household appliances, wires and cables, plugs and sockets, switch connectors, and other electrical accessories to ensure they meet requirements.

1. Output Voltage: AC0～5KV, Accuracy: ±2% +3 digits;
2. Indication Method: 1602 LCD yellow-green backlight display shows current test voltage, current leakage current, set current, preset time, current test time, alarm status, and other parameters;
3. Output transformer power: 1kVA;
4. Voltage regulation method: Manual;
5. Upper current limit: 0.01～39.99/40.0～200.0mA, two-level automatic range switching, accuracy: ±2% +3 digits;
6. Lower current limit: 0.399.9mA, two-level automatic range switching, accuracy: ±2% +3 digits;
7. Timer: 0.1～999.9S button setting, 0=OFF;
8. Alarm indication: Includes over-leakage alarm indication and buzzer prompt;
9. Power supply: AC220V±10%, 5A;
