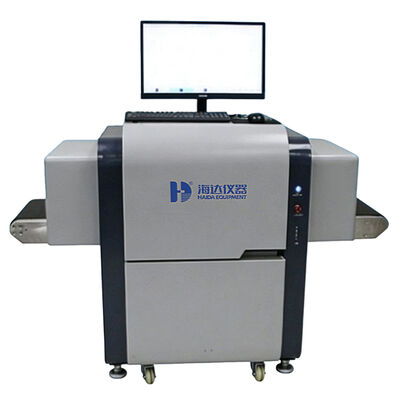

Industrial X-ray Detection Machine with 600mm Detecting Width, 24m/min Conveying Speed, and 0.8mm Detection Accuracy

Large Image : Industrial X-ray Detection Machine with 600mm Detecting Width, 24m/min Conveying Speed, and 0.8mm Detection Accuracy

Product Details:

Place of Origin:	china
Brand Name:	Haida
Certification:	ISO9001: 2008, CE, ...
Model Number:	5152-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Contact Now

Industrial X-ray Detection Machine with 600mm Detecting Width, 24m/min Conveying Speed, and 0.8mm Detection Accuracy

Description

Name::	Double Head Needle Metal Detector For Drugs & Toys	Feature:	Easy To Operate
Weight:	175Kg	Detecting Width:	600mm
Alarm Method:	Buzzer	Conveying Speed::	24m/min(50Hz),32m/min(60Hz)
Price:	Cheap	Rated Output:	100W
Conveyor Length:	1350mm	Sensitivity Adjust::	1~10 Level
Highlight:	600mm detecting width X-ray Detection Machine , 24m/min conveying speed Needle Metal Detector , 0.8mm detection accuracy Industrial Inspection Equipment

Equipment Overview

Industrial-grade X-ray inspection equipment designed for comprehensive quality control of shoes, handbags, toys, cordyceps, and various other products. Utilizes advanced pattern recognition technologies including neural networks and genetic algorithms to provide assisted or automatic identification functions, significantly enhancing inspection effectiveness.

Key Features

Fully Automatic Hardware Calibration: Complete automated process from software initialization through detection to shutdown, with X-ray and hardware imaging components performing automatic detection.
High-Definition Imaging Module: Utilizes advanced X-ray sensing technology for superior image quality.
Contrast Slider Adjustment: Adjustable contrast settings optimize perspective effects for products of varying densities.
Image Saving Options: Customizable file paths and names with automatic daily folder organization for efficient image management.
Core Hardware Failure Monitoring: Real-time status display of detector, X-ray source, and control board for easy operational assessment.
Advanced Processing System: Fully embedded DSP system with high-speed processing capabilities.
Software Processing: High-performance X-ray image processing system with FPGA-based algorithms, large high-definition display, and user-friendly interface for enhanced detection accuracy.
Image Display: 19-inch large screen display providing detailed, sharp images with full-screen capability.
Image Processing Functions: Black and white/color switching, image inversion, restoration, overall magnification, and local magnification capabilities.
Image Database: Automatic daily folder creation with capacity for storing up to 20 million images.

Technical Specifications

Parameter	Specification
Channel Opening	500mm (width) × 250mm (height)
Conveyor Belt Height	700mm from ground
Detection Accuracy	0.8mm (for iron)
Maximum Conveyor Belt Load	25 kg
Leakage Dose	0.502µGy/h (5 cm from casing), compliant with health and safety regulations
Operating Voltage	AC220V, 50±3Hz
Operating Environment	Temperature: 0℃~60℃, Humidity: 20%~90% (non-condensing)
Equipment Noise	≤55dB
Detection Capability	Detects metal spheres with diameter of 0.8mm, broken needle tips, and foreign objects/impurities
High-Speed Detection	Standard setting: 12 meters/min (600 items per hour), speed adjustable
Dimensions (L×W×H)	2200mm × 1060mm × 1200mm
