Double Head Needle Metal Detector with 600mm Detecting Width and 24m/min Conveying Speed for Textile Testing

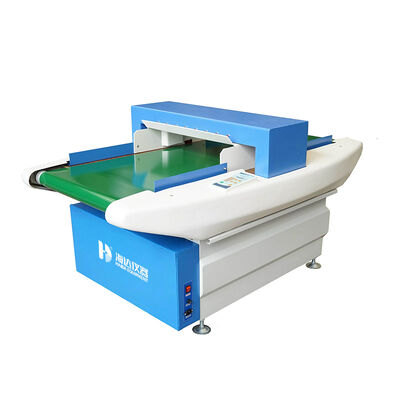

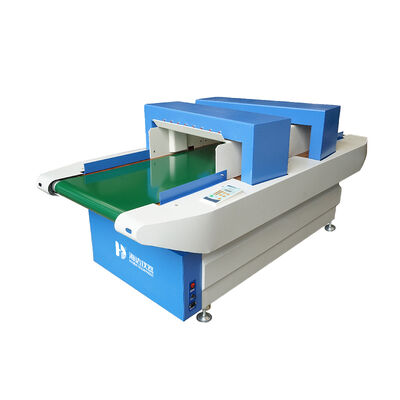

Large Image : Double Head Needle Metal Detector with 600mm Detecting Width and 24m/min Conveying Speed for Textile Testing

Product Details:

Place of Origin:	china
Brand Name:	Haida
Certification:	ISO9001: 2008, CE, ...
Model Number:	5147-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 sets per month

Contact Now

Double Head Needle Metal Detector with 600mm Detecting Width and 24m/min Conveying Speed for Textile Testing

Description

Name::	Double Head Needle Metal Detector For Drugs & Toys	Feature:	Easy To Operate
Weight:	175Kg	Detecting Width:	600mm
Alarm Method:	Buzzer	Conveying Speed::	24m/min(50Hz),32m/min(60Hz)
Price:	Cheap	Rated Output:	100W
Conveyor Length:	1350mm	Sensitivity Adjust::	1~10 Level
Highlight:	600mm Detecting Width Needle Metal Detector , Double Head Needle Detection Machine , 24m/min Conveying Speed Metal Detector

Equipment Details for 5147-HD Needle Detector

Product Description

The 5147-HD needle detection machine is designed for detecting ferromagnetic metal impurities in various industries including toys, clothing, zippers, leather goods, and knitting. It effectively identifies broken needles, wire fragments, and other ferromagnetic contaminants that may be present in raw materials or finished products.

Standard Features

Specifications	5147-HD
Detecting method	Magnetic induction
Belt speed	Approx. 26m/min
Detecting adjustment	Stepless adjustment
Detecting width	600mm
Detecting height	100mm \| 120mm \| 150mm \| 200mm
Detecting ability	≥ 0.8mm iron ball \| ≥1.0mm iron ball \| ≥1.2mm iron ball \| ≥1.5mm iron ball
Alarm method	Buzzer
Power Supply	AC 220V 50HZ
Rated output	60W
Instrument Dimension (L×W×H)	1650×1050×900mm
Net Weight	220kg
