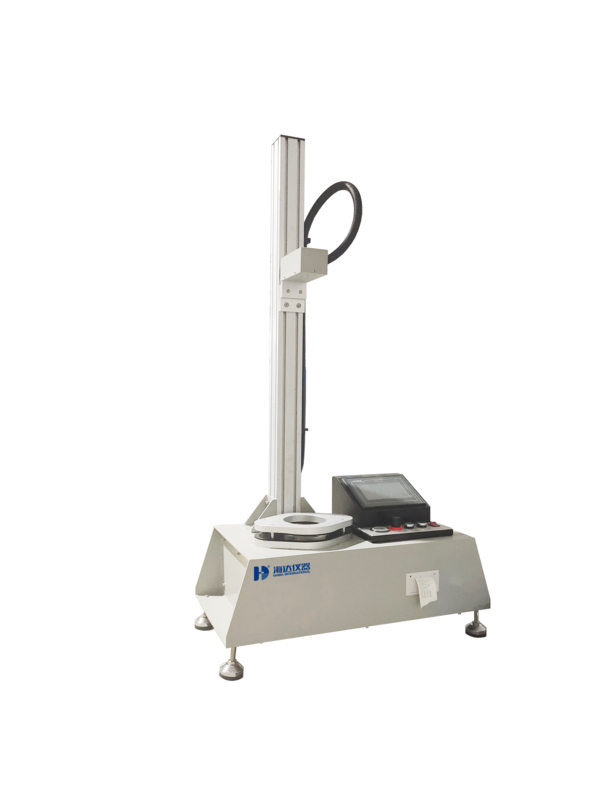

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

Large Image :  EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: 5085-HD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 300 Sets per Month
Contact Now

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER

Description
Injection Time: 0-9999s [Adjustable] Torque Resolution: 0.001NM
Warranty: 1 Year Operating Method: Electric Control
Heating Power: 4kw Charging Time: 0~999·Programmable
Test Range: 0.005-300W/(m*K) Displacement Accuracy: 0.01mm
Plunger: Diameter9.4742±0.0076mm Usage: Testing
Test Mode A: Room Temperature Screw Speed: 0~150 R.p.m
Temperature Range: Normal Temperature--30°Cor -50°C Specimen Holder: Inner Groove Width 12mm
External Size: 900*500*800 (W*D*H)

EQUIPMENT DETAILS OF 5085-HD DART IMPACT TESTER
SOFTWARE DETAILS

APPLICATIONS

Fall Dart Impact Testing Machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.

GENERAL SPECIFICATIONS

Estimated Packaging Dimensions: (L×W×H) 1020*600*2250mm

Estimated Gross Weight: 130kg

Power supply source: Single-phase, 220V±10%, 50/60Hz (can be appointed)

STANDARD FEATURES
Test Item Specification
Testing sample mass Method A: 50-2000g; Method B: 300-2000g
Testing accuracy 0.1g (0.1J)
Testing method Method A & Method B (Option)
Specimen size ＞150mm×150mm
Diameter of impacting head Method A:Ф38.1±0.1mm, Method B:Ф50.8±0.1mm
Diameter of dart shaft Ф6.5±0.1mm
Inner diameter of specimen fixture 125±2 mm
Impacting height Method A : 0-660mm, Method B: 0-1520mm
Weights Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2
Method B: 15g*2, 45g*8, 90g*8, 300g*2
Power Single-phase 220V, 60Hz
Estimated Weight 100kg
Specimen Fixture Pneumatic
