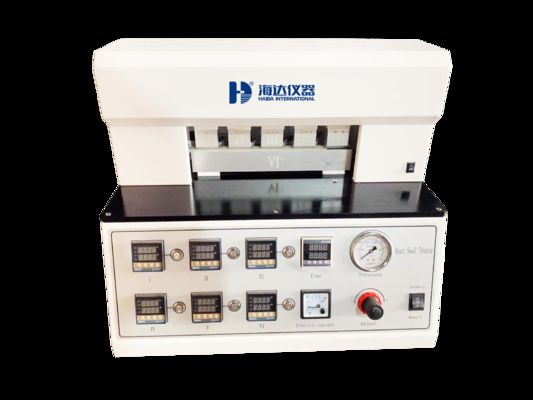

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

Large Image : EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	5088-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

Description

Torque Range:	0-200MV	Control Temperature:	Within 70±1℃or 100±1℃to Room Temperature
Dimension:	550x440x690 Mm	Power:	AC 220V
Air Supply:	0.6MPa	Roller Wheel Length:	460mm
Test Mode A:	Room Temperature	Test Range:	Full Range: 0.55-500mm
Test Station:	3	Temperature Display Error:	1℃
Injection Time:	0-9999s [Adjustable]	Material Sound Velocity:	1000-9999m/s
Heating Power:	4kw	Dispaly:	Digital
Specification:	20-88HRA, 20-100HRB, 20-70HRC

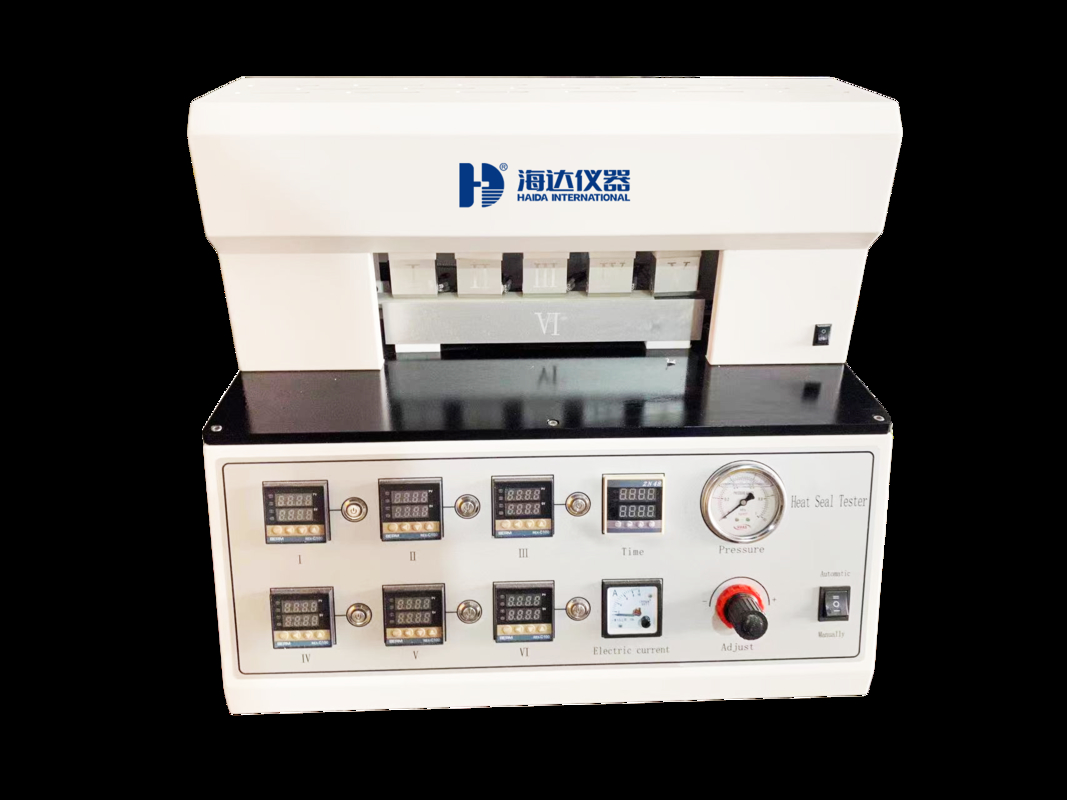

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER

EQUIPMENT DETAILS OF 5088-HD HEAT SEALING TESTER 0

***Picture for reference***

PRODUCT DECRIPTION

Heat sealing tester adopt hot-pressing sealing method which is used to determination of plastic film base material, flexible packaging composite film, coated paper and other heat sealing compound film of heat sealing temperature, heat sealing time, heat sealing pressure parameters , to provide users with accurate heat sealing test index. Fully digital control system, the key parts adopt international famous brand products, a high degree of automation, easy operation.

TEST STANDARD

ASTM F2029, QB/T 2358, YBB 00122003

TECHNICAL PARAMETERS

Item	Description
Heat sealing temperature	RT+10~250℃
accuracy	±1℃
Heating sealing pressure	0~0.7Mpa(Adjustable)
Heating sealing time	0.01~99.99s(Adjustable)
*Heating sealing surface(LW)**	40mmx10mm * 5 stations
Heating method	Single heating or double heating; upper and lower sealing knives can be individually switched and individually temperature controlled
Test mode	Manual mode / automatic mode (Manual mode is controlled by foot switch, automatic mode is controlled by adjustable delay relay);
Air pressure	≤0.7MPa (user-supplied)
Machine Dimension(LWH)	550330460mm
Net weight	Around 35kg
Power	1-PH, AC 220V,50Hz
Standard configuration	Foot switch + Air supply line + Air filter + Power cord

ABOUT US

Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

WHY CHOOSE US?

Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
Warranty
1 year warranty with lifetime technology support
After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
