EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER

Large Image : EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	5078-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER

Description

Impact Angle:	90 Degree	Time Resolution:	1s
Design Standards:	￠84mm×45mm	Measurement Accuracy:	±3%
Testing Angle:	20°,30°,40°	Material Sound Velocity:	1000-9999m/s
Roller Speed:	40±1r . P . M	Injection Capacity:	40*65 Cm³
Timing Range:	3min(can Be Set Arbitrarily)	Working Size:	Diameter 160*44(mm) Center Height 214mm
Constant Temperature:	50℃± 0.5℃ And 100℃± 0.5℃	Peeling Angle:	90°
Dimension:	550x440x690 Mm	Outer Dimension:	(L×W×H) 500×200×300 Mm
Type:	Single Hammer Hand

EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER

EQUIPMENT DETAILS OF 5078-HD BOTTLE AXIS DEVIATION TESTER 0

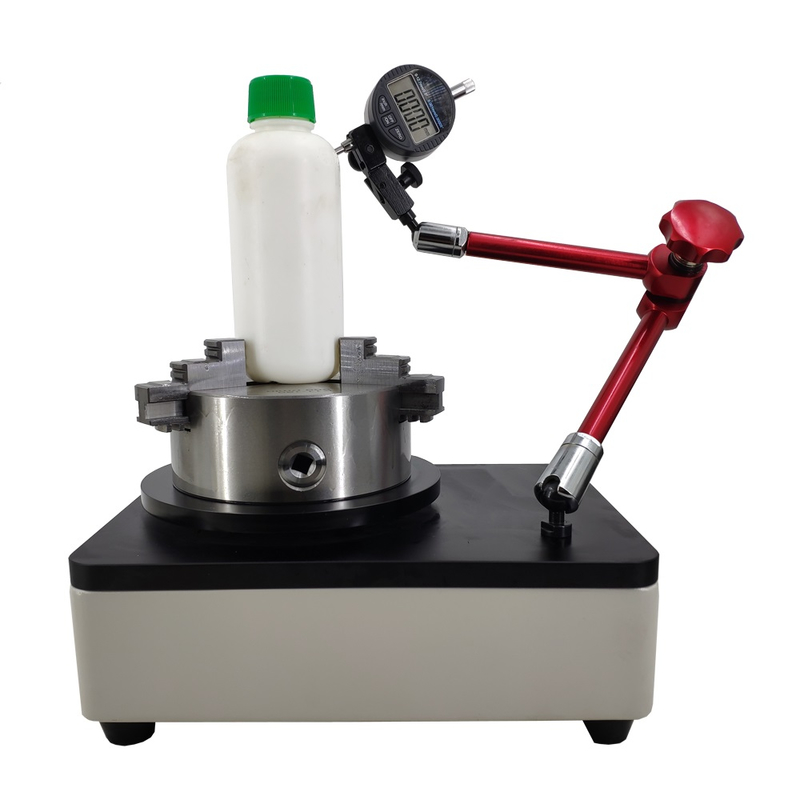

***Picture for reference

DESCIPTION

Determination professional for food, cosmetics, pharmaceuticals and other industries of various bottle container vertical deviation, and is bottle factory , bottle users and research institutions to detect bottle verticality preferred instrument bias.

PRINCIPLE

Fix the bottom of the bottle on the rotating disk of the horizontal plate, make the bottle mouth contact the micrometer, rotate 360° to read the maximum and minimum values, and 1/2 of the difference between the two is the vertical axis deviation value. The instrument uses the high concentricity of the four-claw self-centering chuck, with a set of high-freedom brackets that can freely adjust the height and orientation, to meet the testing of various glass bottles and plastic bottles.

STANDARD

QB2357, QB/T1868, YY 0056, YBB 00012012, GBT 8452, GB 2637, YBB 00332002, YBB 00042012, YBB 00052012

TECHNICAL PARAMETER

Sample diameter	Positive claw 3-55mm, reverse claw 55-145mm
Centering chuck	Four-claw/three-claw optional
Measuring range	0-12.7mm
Measuring table positioning method	Universal bracket
Resolution	0.001mm
Indication error	±0.005mm
Measurement error	≤0.05mm
Measurable height	5mm-400mm
Data output method	Can connect to computer to output data to EXCEL, Word table for data statistical analysis; (optional)
Measurement parallelism	330mm240mm240mm
Weight	20kg
