5100-HD Showerhead bundle collection test for Collect the density of the water

Name: 5100-HD Showerhead bundle collection test for Collect the density of the water
Brand: Hai Da Labtester
SKU: 5100-HD
Price: 12000.00 USD
Availability: InStock

All Products

Lab Test Machines
(68)

Environmental Test Chamber
(114)

Tensile Test Machine
(224)

Flammability Testing Equipment
(45)

Temperature Humidity Chamber
(42)

Accelerated Aging Chamber
(59)

IP Test Equipment
(39)

Corrosion Test Chamber
(41)

ISTA Packaging Testing
(34)

Paper Packaging Testing Instruments
(96)

Furniture Testing Equipment
(115)

Medical Device Tester
(10)

Textile Testing Equipment
(40)

Vibration Shaker Table Systems
(23)

Mechanics Testing Machine
(6)

Optical Measuring Machine
(23)

Battery Test Equipment
(37)

Rubber Plastic Test Equipment
(54)

Chemical Analysis Machine
(19)

Electronic Cigarette Test Machine
(10)

Best Products

Furniture Testing Machine , Foam Dynamic Compression Fatigue Tester

LCD Mattress Rollator Durability Tester Furniture Testing Machine

Certification

Customer Reviews

Yes we received the machine last week. This Machine was nice, and thank the after-sales serives, was very professional.

—— Peter Maas

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Steve Hubbard

I'm Online Chat Now

5100-HD Showerhead bundle collection test for Collect the density of the water

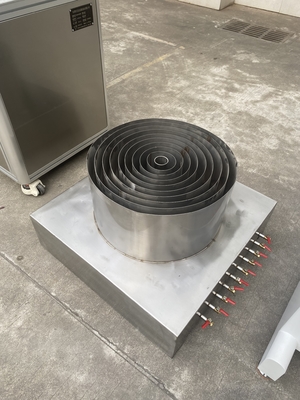

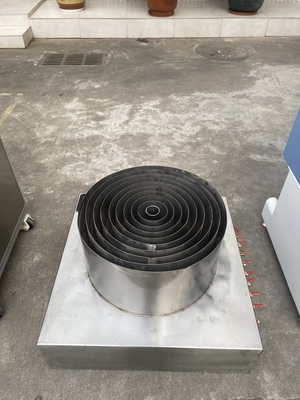

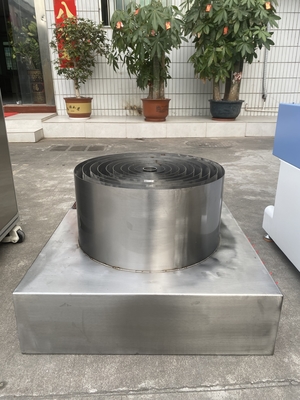

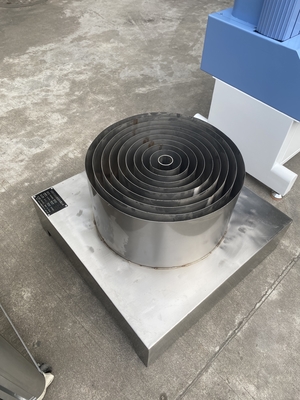

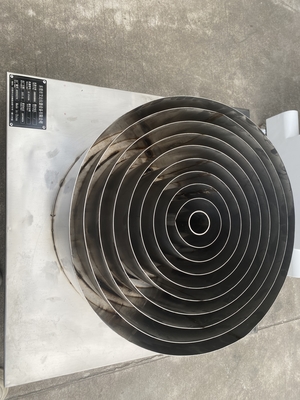

Large Image : 5100-HD Showerhead bundle collection test for Collect the density of the water

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008
Model Number:	5100-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability:	30 Sets per Month Haida

Contact Now

5100-HD Showerhead bundle collection test for Collect the density of the water

Description

Temperature Control Range:	50℃-300℃	Spring Constant:	17.54±0.88 N/mm
Capacity:	200kg (Imported Sensor)	Maximum Test Force:	2T, 3T, 5T (optional)
Load Cell Capacity:	0~300KG(can Be Settable Freely)	Diameter:	350mm
Force Sensor:	High Precision Brand Sensors 7 Sets	Application:	Seating With Tilting Backrest
Usage:	Used For Testing The Quality And Performance Of Furniture	Air Supply:	7kgf/cm^2
Safety Features:	Designed With Safety Features To Ensure Operator's Safety During Testing	Function:	Evaluates The Strength, Durability, And Safety Of Furniture
Cylinder Output Height:	30~48cm	Lower Platform:	390×400mm
Voltage:	Customize

5100-HD Bathroom Countertop Water Resistance Test Machine

EQUIPMENT DETAILS

APPLICATIONS & TEST PURPOSE:

This is applicable for testing the performance of washbasin cabinets and shower chairs (stools) under the rainy climate conditions. After testing, the performance of the product is determined to meet the requirements through verification, in order to facilitate the design, improvement, calibration, and factory inspection of the product.

STANDARD:

GB/T24977-2024 General technical specifications for bathroom furniture -8.4 Water resistance test for washbasin cabinets and shower chairs (stools)

PRODUCT FEATURES:

Main frame: Adopting a frame structure design, customized thickened aluminum profiles are used to make the frame, which is beautiful and elegant; The outer frame is surrounded by acrylic waterproof material, and the condition of the test sample can be observed at any time.
The bottom is equipped with universal casters, which can be easily moved.
Using PLC controller to control the action of the instrument, the operation is intuitive and simple
The testing time can be set, with one click start, automatic shutdown, and simple intelligence.

MAIN TECHNICAL PARAMETERS:

Aluminum alloy frame	Composed of 80 * 80 thick heavy-duty aluminum profiles
Spray head	hole (50-80), hole diameter: ≤ 4.0
Test water temperature	less than 30 ℃
Test flow rate	10L/min -12L/min
Flow rate	10-12L (adjustable)
Testing time	10 minutes
Test height	1500~1800mm (manually adjusted), with a ruler for height positioning
Control mode	PLC control, 7-inch display screen operation
Count	Ø 0~999999 times can be set
Internal dimensions for instrument testing	1800 * 1000 * 2000mm
External dimensions	1900 * 1100 * 2000mm
Power supply	220V 50HZ
Power	1KW
Protection device	water leakage, power outage, short circuit
