HD-F801-2 Gas Chromatography

HD-F801-2 Gas Chromatography
HD-F801-2 Gas Chromatography HD-F801-2 Gas Chromatography

Large Image :  HD-F801-2 Gas Chromatography

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008
Model Number: HD-F801-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 30 Sets per Month Haida
Contact Now

HD-F801-2 Gas Chromatography

Description
Loading Frequency: Can Be Set Test Stroke: 1000mm
Impact Height: 152mm Warranty: 1 Year
Backrest Load: 400N Test Results: Output By Built-in Printer
Temperature Resolution: ±0.1℃ Counter Range: 0-99999 Times
Handrail Loading Force: 250N Flame Height: 35mm
Induction Mode: Precision Load Cell Machine Specifications: 6.8 M × 2.6 M × 2.4 M
Dimensions: 3.5m X 2.4mx2.4m Air Pressure: 4 ~ 7 Bar
Position Resolution: Min. 0.2 Mm

HD-F801-2  Gas Chromatography

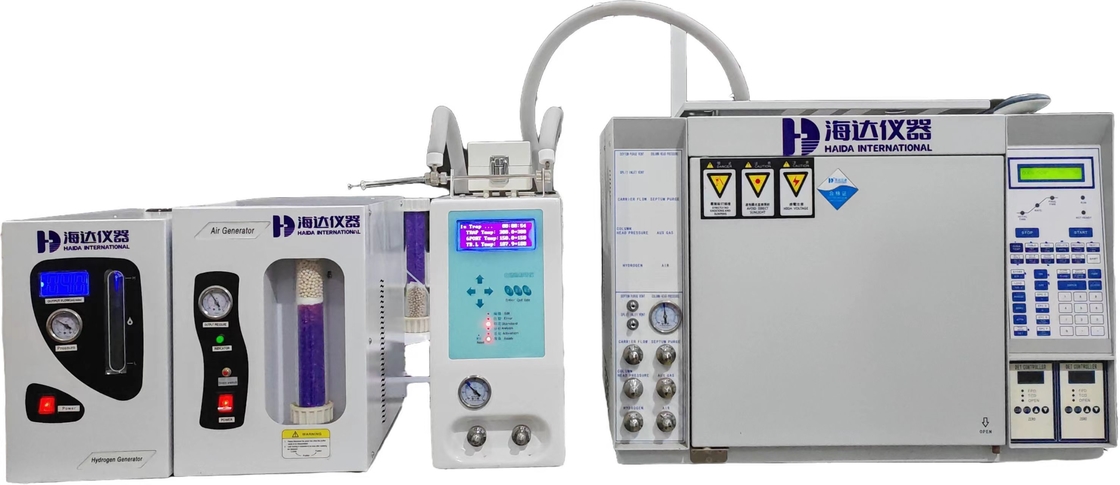

A whole set: Automatic thermal desorption apparatus+ Gas Chromatography+Hydrogen generator +Air generator





Technical Parameters of Gas Chromatography





Furnace size

28x 30 x18cm

Temperature range



















Temperature setting

1℃

programmed heating rate

0.1℃

Maximum heating speed

120℃/ min

Temperature stability

0.01℃when the ambient temperature changes by 1℃

Programmed temperature rise

7-step programmed temperature rise

Loss compensation of operable column

dual channel

Power supply

220V±10%,2500W (maximum)

Volume

57x 55 x48 cm

Weight

around 50kg

















Technical Parameters of Detector:



Hydrogen flame ionization detector (FID)

Maximum operating temperature

400℃

Detection limit

≤5 x 10-12g / S

Drift

≤5 x 10-13a / 30min

Noise

2 x 10-13a

Dynamic linear range

≥107

Thermal conductivity cell detector(TCD)

Maximum operating temperature

400℃

Sensitivity

≥10000 mv.ml/mg[n-C16]

Drift

≤100uv / 30mi

Noise

≤20ua

Dynamic linear range

≥104

Electronic capture detector (ECD)

Maximum operating temperature

350℃

Detection limit

≤6×10-15 g / ml (γ - 666)

Drift

≤50uv / 30min

Noise

≤20uv

Dynamic linear range

≥104







Technical Parameters of Automatic thermal desorption apparatus



Temperature control range of sample area

5℃-400℃; Heat power:200W

Temperature control range of valve injection system

5℃-180℃; Heat power:60W

Sample transfer line temperature control range

5℃-200℃; Heat power:40W

Temperature Control Accuracy

< ±0.1℃

Temperature control gradient

< ±0.1℃

Desorption recovery

> 95%

Analog sampling flow

100ml/min

Blowback cleaning flow

0~200ml/min

Machine Size and Weight( L x W x H)

400x170x300mm,Around 12kg
