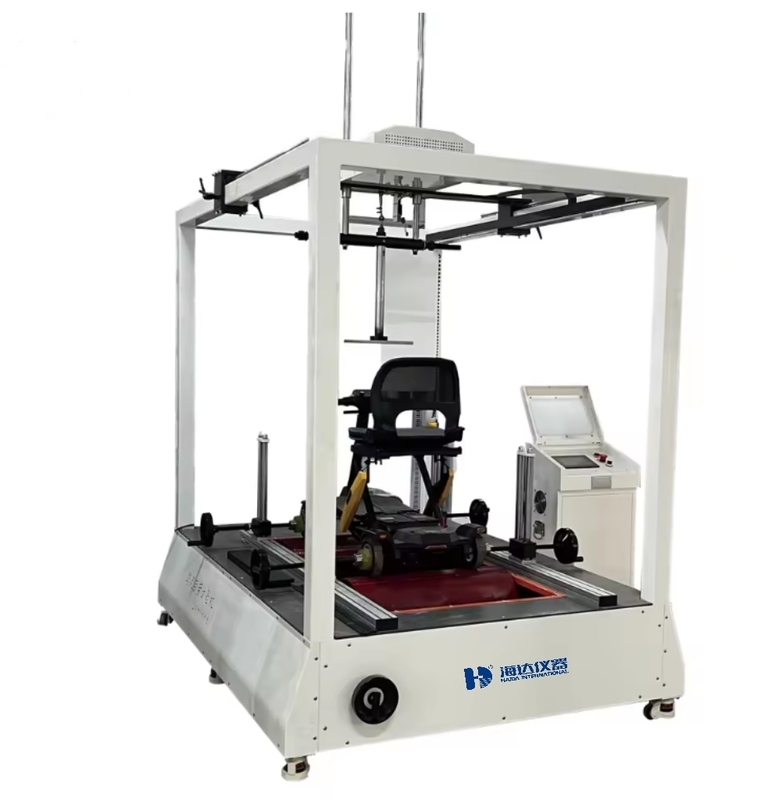

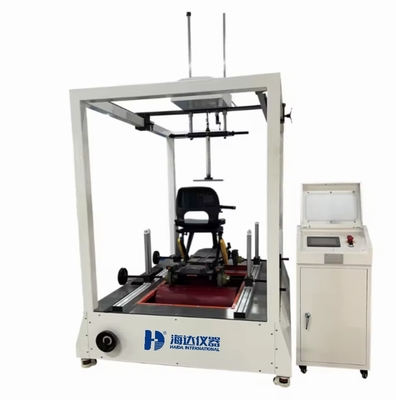

5114-HD Wheelchair Multi-Roller Fatigue Tester

Large Image : 5114-HD Wheelchair Multi-Roller Fatigue Tester

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5114-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5114-HD Wheelchair Multi-Roller Fatigue Tester

Description

Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument	Display:	LCD,Digital Display
Feature:	Easy To Operate	Operation Method:	Automatic
Product Type:	Testing Instruments	Protection Device:	Induction Type Protection Device
Control:	PLC Control	Power:	Electronic,220V/50HZ,AC220V,grounded,power Supply Should Be Reliable
Usage:	Paper Testing Instrument,Universal Testing Machine,Paper/plastic Material Tensile Strength Testing Instrument,Strength Testing Machine,Paper Core Crush Test Instrument	Product Name:	LAB Paper Air Permeability Testing Instrument,Package Drop Impact Reliability Tester / Zero Height Drop Instrument,Tensile Strength Tester,Paper Cardboard Pierce Strength Test Instrument,Paper Internal Ply Bond Testing Instrument
Warranty:	12 Months,1 Year,2 Years,1-2 Years,one Year	Weight:	70 Kg,91 Kg,About 145 Kg,75KG,64kg
Power Supply:	6A,AC220V,220V 50Hz,50-60HZ,1 Diameter	Application:	Etc,tube Compressive Strength Tester,plate,rubber,bar
Resolution:	1/20000,1 / 50000,0.1N,000,1mN	Capacity:	200,500,1000kg,20,10T Customize
Accuracy:	± 0.5 %,±1%,±0.5%	Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument
Units Switch:	Kgf,N.( Optional),Lbf	Testing Speed:	10 ~ 200 Mm/min
Dimension:	360264400mm,70 34 60 Cm,856580cm	Measuring Range:	250-5600 Kpa,10 ~ 1000mN
Display Mode:	LCD Display,digital Mode	Design Criteria:	ISO 2248,ASTM-D2210,TAPPI T403,GB/T4857-92,JIS Z0202-87

5114-HD Wheelchair Multi-Roller Fatigue Tester

EQUIPMENT DETAILS

APPLICATIONS & TEST PURPOSE:

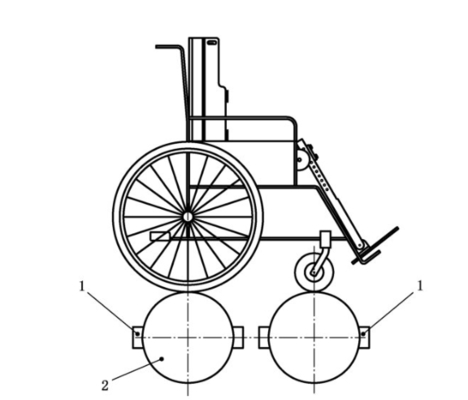

This machine performs road condition fatigue tests on wheelchairs, visually inspecting the extent of damage to the wheelchair. It is suitable for manual wheelchairs operated by the user or caregiver, as well as indoor and outdoor electric wheelchairs. Electric wheelchairs have three or more wheels mounted on two parallel drive axles, with no more than two driving wheels, and a speed not exceeding 5km/h. The machine is controlled by a PLC touch screen, allowing the setting of driving speed and distance. It can be set to distance mode or rotation mode, and will automatically shut off upon reaching the set distance.

STANDARD:

ISO 7176-8-5.8;GB/T 1802

STANDARD FAETURES:

Maximum load capacity	≥300kg
Speed Range	0-5KM/H Test speed: 1.0m/s (reference roller), 1.02—1.07m/s (driven roller)
Test times	0~999999 R can be set
Obstacle height	36±3 x 12±1 x 500mm(W×H×L), interchangeable
Power supply	380v, 50hz
Roller quantity	2-3 rollers customized
Wheel diameter	∮250±25mm. Width 900mm, surface knurling to increase the friction coefficient
Wheel center distance adjustment range	400～1000mm, adjusted by screw handwheel
Dimensions	Approx.2200mmx1260mmx2700mm
