EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR

Large Image : EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR

Product Details:

Place of Origin:	CHINA
Brand Name:	HAIDA
Certification:	CE
Model Number:	5035-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now

EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR

Description

EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR

APPLICATION

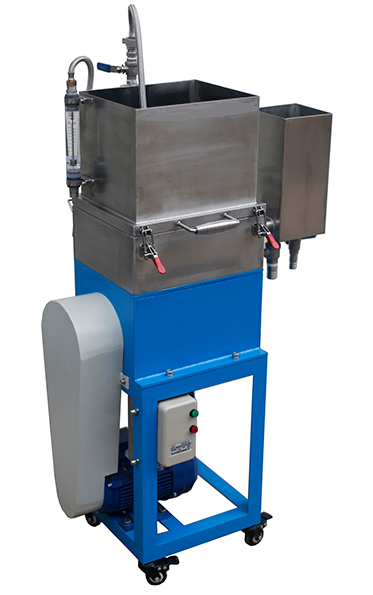

This machine is a laboratory-specific pulp screen (Somerville type equipment), which separates the large sticky matter, plastic, sediment, iron filings and other impurities in the pulp through the up and down vibration of the screen plate. Check and quantify.

STANDARD

TAPPI 275

STANDARD FEATURES

Item	Description
Sieve plate size	307mm×268mm
Screen slit	length 45 mm, width 0.15 mm
Specification of sieve plate sieve slit	0.15mm
Rubber membrane and actuation: Amplitude	3.2 ± 0.1mm eccentric actuation at 690-700 rpm
Water flow rate control	8.6 L/min. Water pressure: 1.23 Kg/cm2.
Dimensions	7204101150mm
Other optional sieve plate sieve slot specifications	0.15mm, 0.2mm, 0.3mm, 0.35mm, 0.4mm.

EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR 1

EQUIPMENT DETAILS OF 5035-HD SOMMERVILLE SIEVE CONTENT ANALYSATOR 3
