Sanitary Napkin Backing Peeling Strength Tester ASTM D646

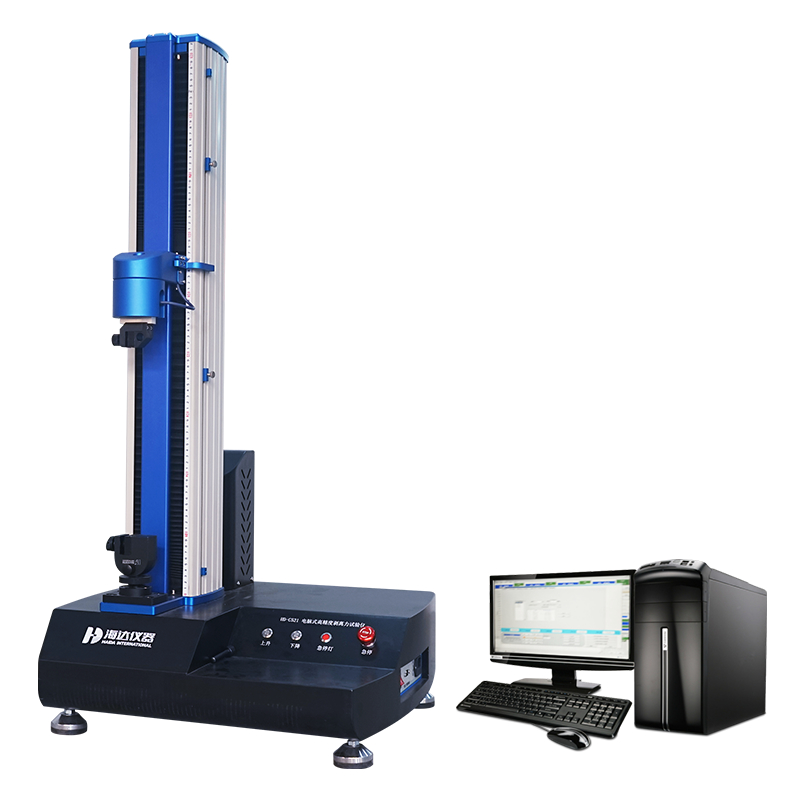

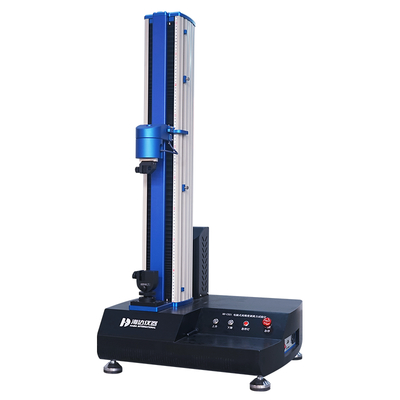

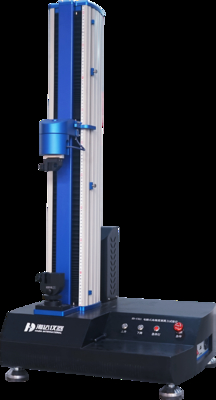

Large Image : Sanitary Napkin Backing Peeling Strength Tester ASTM D646

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5034-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Sanitary Napkin Backing Peeling Strength Tester ASTM D646

Description

Design Standards:	ASTM D646, JIS P8124, QB / T 1671	Operating Method:	Microcomputer Control
Testing Standards:	ISO, ASTM, TAPPI	Drop Test:	Corners, Edges , Faces Of Sample
Usage:	Packaging Testing	Test Area:	10 ± 0.05cm ^ 2
Plywood Size:	H48in * D48in	Testing Procedure:	10 -- 15 Tests Per Min
Unit:	Kpa, Psi, Kg/cm^2	Color:	Optional
Load Range:	0~60g (designated 0~100g)	Test Force Accuracy:	< ±1% Of The Display Value
Maximum Sample Width:	100 Mm	Application:	Package Testing
Accuracy:	±1%	Testing Speed:	2°/ Second
Cutting Depth:	< 8 Mm	Measuring Range:	0-9999 Seconds
Return Speed:	30mm/min	Cut Specimen:	100×60 Mm
Highlight:	ASTM D646 Peeling Strength Tester , Sanitary Napkin Backing Peeling Strength Tester

5034-HD Sanitary Napkins (Pads) Backing Peeling Strength Tester

Product Specifications

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB / T 1671
Operating Method	Microcomputer Control
Testing Standards	ISO, ASTM, TAPPI
Test Area	10 ± 0.05cm²
Plywood Size	H48in * D48in
Testing Procedure	10-15 tests per min
Unit	Kpa, psi, kg/cm²
Load Range	0~60g (designated 0~100g)
Test Force Accuracy	< ±1% of the display value
Maximum Sample Width	100 mm
Accuracy	±1%
Testing Speed	2°/ second
Cutting Depth	< 8 mm
Measuring Range	0-9999 seconds

Product Description

The 5034-HD tester is designed for evaluating the peeling strength of sanitary napkins and panty liners. It also effectively tests the peeling and adhesion performance of various materials including plastic films, adhesive tapes, self-adhesive labels, release papers, protective films, and diaphragms.

Testing Principle

A standard jersey is attached to the adhesive backing of sanitary absorbent pads. After conditioning under specified conditions, the sanitary napkin and standard jersey are peeled 180° apart. The average peeling force within the specified displacement is measured to determine adhesive strength.

Design Standards

GB/T 8939-2018-Annex E, GB/T 2792-2014, GB 2792-81, ASTM D3330, JIS_K6854-1-1999, DIN 53357, ISO 8510, ISO 29862

Product Features

Structural Features

Baking varnish coating enhances protective performance and pressure resistance
Flexible accordion-style protective cover reduces friction noise
Manual rising/falling operation for user convenience

Control System

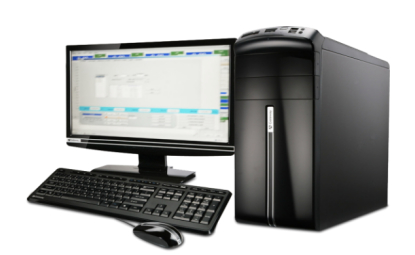

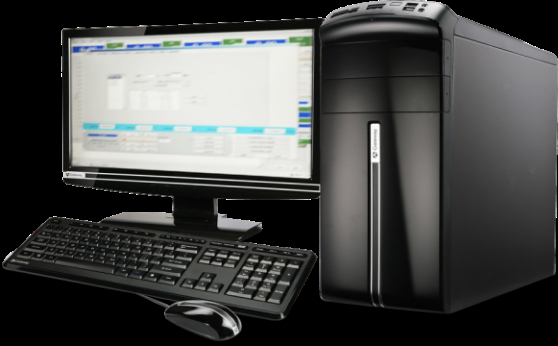

Direct PC connection minimizes data interference
MTest software with multilingual support (English, Chinese, Traditional Chinese)

Test Structure

High-quality components ensure accurate low-viscosity testing
Silent reducer prevents vibration and noise
Servo motor system with precision ball screw for 0.5 displacement accuracy

Protection System

Includes intelligent limit protection, overload protection, and automatic return for safe operation.

Sample Schematic Diagram

Technical Parameters

Load capacity	50N (standard); 10N/20N (optional)
Motor	400w servo motor
Driver	400w servo driver
Control method	Computer control, Windows mode operation
Adjustable speed	0.1-500mm/min (Standard: 400±10 mm/min)
Initial clamp distance	80mm
Clamp width	(80±1) mm
Sample requirements	Length: 120mm (minimum 60mm for shorter backings)
Standard jersey	120-140g/m², L(120±1)xW(65±1)mm, elongation ≤25.0%
Stripping length	60mm
Dimensions	580×550×1150mm (L×W×H)
Weight	68Kg
Power	1∮ AC 220V 500W
