HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

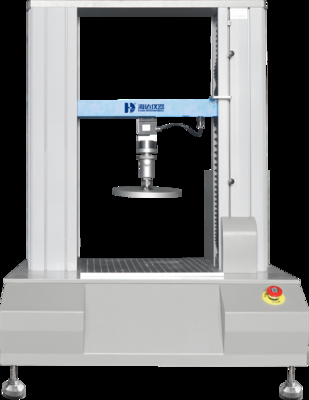

Large Image : HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	HD-A513-C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

Description

Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument	Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument
Display:	LCD,Digital Display	Feature:	Easy To Operate
Operation Method:	Automatic	Product Type:	Testing Instruments
Protection Device:	Induction Type Protection Device	Control:	PLC Control
Sensing Method:	Pressure Transmitter	Stop:	Stop Test
Force Resolution:	1/500000 Of The Maximum Test Force Fs	Vibration Mode:	Reciprocating
Highlight:	Paper Bowl Compression Test Machine , 500kg Paper Bowl Compression Test Machine

HD-A513-C Paper Bowl Compression Test Machine

Product Overview

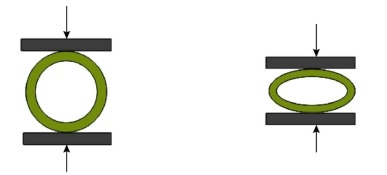

Specialized testing equipment for evaluating the flat compression performance of paper tubes and cores, compliant with GB/T 27591 standards.

Key Features

Double-column ball screw drive ensures high-precision and stable operation
Force value accuracy better than 1.0 level for precise test data
Embedded USB interface or network port for convenient data transmission
Adjustable test speed to accommodate various testing requirements
PLC control system with automatic operation
Pressure transmitter sensing method with 1/500,000 force resolution

Technical Specifications

Capacity	500kg, imported load cell
Load Resolution	1/250,000
Load Precision	Within ±0.5%
Motor	400W Panasonic servo motor
Operation Mode	PC controlled with software, Windows 10 operation
Test Plate	≥100x100mm
Test Speed	12.5±2.5 mm/min (0.1-500mm/min adjustable)
Max. Stroke	600mm (excluding fixture)
Test Units	gf/kgf/N/kN/lbf/T
Dimensions	790 x 610 x 1100mm (LxWxH)
Weight	Approx. 170 kg
Power	1∮, 220V, 500W
