60102-HD Moisture Expansion Testing Machine with LCD Touch Screen

Large Image : 60102-HD Moisture Expansion Testing Machine with LCD Touch Screen

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Haida
Certification:	ISO,CE
Model Number:	60102-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Export wooden case
Delivery Time:	15 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	30 Sets per Month Haida

Contact Now

60102-HD Moisture Expansion Testing Machine with LCD Touch Screen

Description

Measure Range:	4%-100%F.S	Vertical Test Space:	900mm Including Fixture
Test Speed:	0.01-500mm/min	Power:	1phase,AC220V, 50HZ
Display:	LCD Touch Screen	Control:	PC
Load Cell Brand:	Germany Brand TECSIS Load Cell	Control Mode:	Computer & Software
Gross Weight:	1400kg	Horizontal Test Space:	≤400mm
Control System:	Controller With LED	Test Area Material:	SUS304 Stainless Steel
Load Cell Capacity:	5KG	Stoke:	700mm Including Fixture
Frame Capacity:	200kg
Highlight:	LCD Touch Screen Expansion Testing Machine , Moisture Expansion Testing Machine , Computer Control Expansion Testing Machine

60102-HD Moisture Expansion Testing Machine

Product Specifications

Attribute	Value
Measure Range	4%-100%F.S
Vertical Test Space	900mm including fixture
Test Speed	0.01-500mm/min
Power	1phase, AC220V, 50HZ
Display	LCD Touch Screen
Control	PC
Load Cell Brand	Germany brand TECSIS load cell
Control Mode	Computer & Software
Gross Weight	1400kg
Horizontal Test Space	≤400mm
Control System	Controller with LED
Test Area Material	SUS304 stainless steel
Load Cell Capacity	5KG
Stoke	700mm including fixture
Frame Capacity	200kg

Product Description

The 60102-HD Moisture Expansion Testing Machine is designed for precise measurement of moisture expansion in materials, compliant with GB/T3810.10-2016 and ISO10545-10:1995 standards.

Compliant Standards: GB/T3810.10-2016, ISO10545-10:1995

Maximum working temperature: 800℃
Bending area: ±5mm
Sensitivity: ≤1um
Temperature controlling accuracy: ±5℃
Sample size: (L*W)100*50mm
Power supply: 220V, 5KW

Note: Requires muffle furnace, micrometer, and other accessories for complete operation.

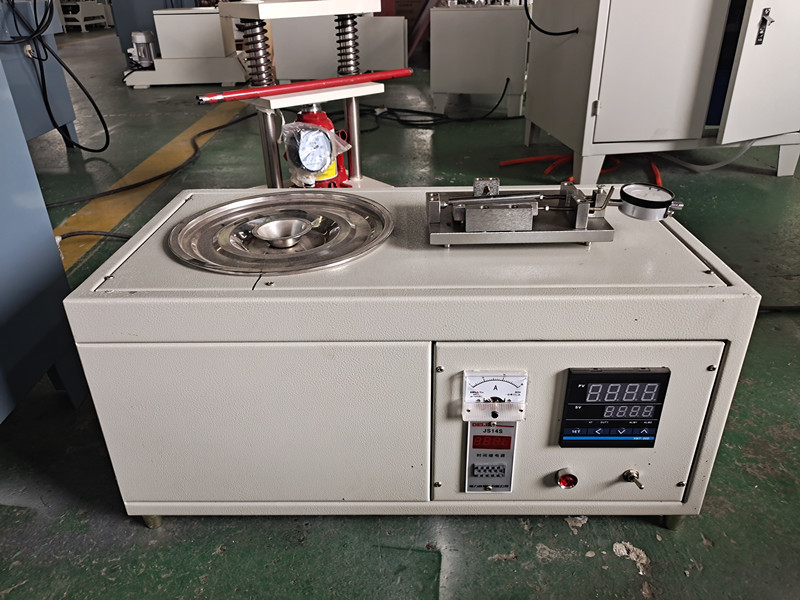

Moisture Expansion Testing Machine

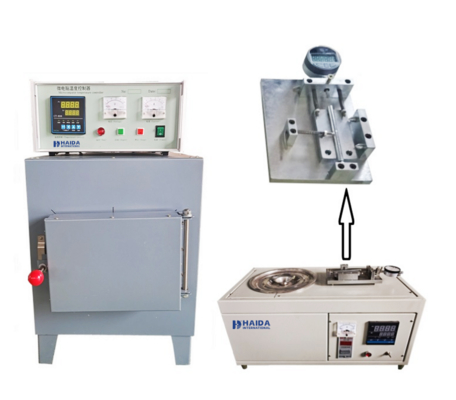

Detailed view of testing components
