Paper Cup Tube Compressive Strength Tester with Digital Display

Large Image : Paper Cup Tube Compressive Strength Tester with Digital Display

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5099-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Paper Cup Tube Compressive Strength Tester with Digital Display

Description

Features:	High Precision, Easy Operation, Reliable Performance	Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument
Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument	Display:	LCD,Digital Display
Units Switch:	Kgf,N.( Optional),Lbf	Display Mode:	LCD Display,digital Mode
Vibration Mode:	Reciprocating	Movement Drive:	Ball Screw And Servo Motor
Customized Support:	OEM ODM	Usage:	Paper Testing Instrument
Controller:	PLC (programmable Logic Controller)	Drop Test:	Corners, Edges , Faces Of Sample
Display Method:	Digital Display	Time Display:	To Display Time During Test ( S )
Usa Area:	Cookware	Design Criteria:	EN71 ANSI,UL,ASTM ISTA
Control System:	PLC Programmed Control	Origin:	China
Test Methods:	Electronic, Mechanical, Manual	Weight:	Customizable
Transmission Mode:	Pneumatic Device + Reducer + Release	Scan Mode:	Single Line
Use:	Packaging Materials
Highlight:	Tube Compressive Strength Tester , Digital Display Compressive Strength Tester , Paper Cup Tube Compressive Strength Tester

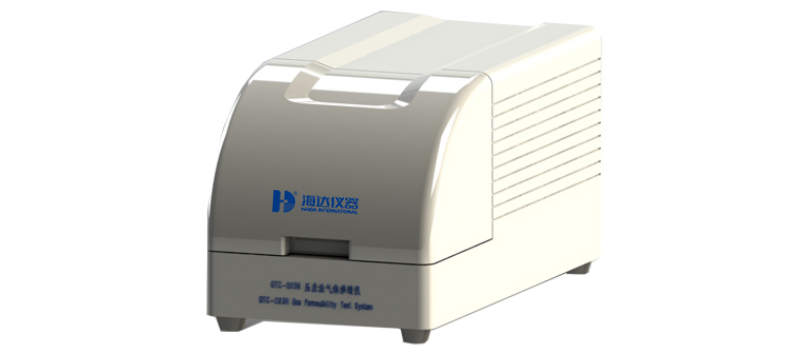

5099-HD Oxygen Transmission Rate Tester

Product Overview

This advanced oxygen transmission rate tester utilizes coulometric oxygen analysis sensors and isobaric test principles to provide high-efficiency oxygen permeability testing for materials with varying gas barrier properties. The system offers precise temperature, humidity, and flow rate control with exceptional test sensitivity and repeatability.

Key Attributes

Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display	LCD, Digital display with unit switching (Kgf, N, Lbf)
Control System	PLC (Programmable Logic Controller)
Movement Drive	Ball screw and servo motor
Vibration Mode	Reciprocating
Design Standards	EN71, ANSI, UL, ASTM, ISTA
Test Methods	Electronic, mechanical, manual
Transmission Mode	Pneumatic device + reducer + release

Technical Features

Three independent test chambers for simultaneous testing of different samples
Imported high-precision sensors ensure exceptional test accuracy
Advanced water bath temperature control system with wide temperature range
Independent control of upper/lower chambers and sensors for result accuracy
Sealed pipeline system reduces system errors for more precise results
Anti-leakage sample structure design for stable sealing
Multiple test modes (manual, proportional, cyclic) for various scenarios
Expandable USB interfaces and network ports for data access
Self-detection capabilities ensure continuous operational status
Power-off automatic save function prevents data loss

Technical Specifications

Measuring Range	Film: 0.01-200cm³/m²24h (conventional) Container: 0.00025-1 cm³/pkg24h (optional)
Resolution	0.001 cm³/m²•24h
Temperature Control	5°C to 85°C (±0.1°C accuracy)
Humidity Control	0% RH, 5%-90%RH, 100%RH (±1%RH accuracy)
Sample Capacity	1-3 pieces (independent data)
Transmission Area	50 cm²
Max Sample Thickness	≤3mm
Carrier Gas	99.999% high purity nitrogen (user-provided)
Dimensions	740mm (L) × 415mm (W) × 430mm (H)
Weight	50Kg
Power Supply	AC 220V 50Hz

Compliance Standards

GB/T 19789, ISO 15105-2, ASTM D3985, ASTM F2622, ASTM F1927, JIS K7126-2, YBB 00082003

Applications

Ideal for oxygen permeability testing of films, sheets, paper, and packaging materials in food, pharmaceuticals, medical devices, cosmetics, photovoltaic electronics, and related industries.

Product Images

About Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
