5097-HD Water Vapor Permeability Tester for Paper Packaging

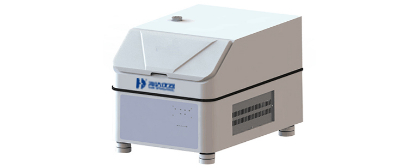

Large Image : 5097-HD Water Vapor Permeability Tester for Paper Packaging

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5097-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5097-HD Water Vapor Permeability Tester for Paper Packaging

Description

Features:	High Precision, Easy Operation, Reliable Performance	Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument
Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument	Display:	LCD,Digital Display
Units Switch:	Kgf,N.( Optional),Lbf	Display Mode:	LCD Display,digital Mode
Vibration Mode:	Reciprocating	Movement Drive:	Ball Screw And Servo Motor
Customized Support:	OEM ODM	Usage:	Paper Testing Instrument
Controller:	PLC (programmable Logic Controller)	Drop Test:	Corners, Edges , Faces Of Sample
Display Method:	Digital Display	Time Display:	To Display Time During Test ( S )
Usa Area:	Cookware	Design Criteria:	EN71 ANSI,UL,ASTM ISTA
Test Standards:	ISO, ASTM, TAPPI, JIS, Etc.	Control System:	PLC Programmed Control
Test Space:	600×800×800mm(can Be Customized)	Origin:	China
Test Methods:	Electronic, Mechanical, Manual	Weight:	Customizable
Appearance Size:	7000x2000x2300 (L × W × H) Mm	Transmission Mode:	Pneumatic Device + Reducer + Release
Scan Mode:	Single Line	Use:	Packaging Materials
Highlight:	Customized Water Vapor Permeability Tester , Digital Display Paper Packaging Tester , Water Vapor Permeability Tester Paper Packaging

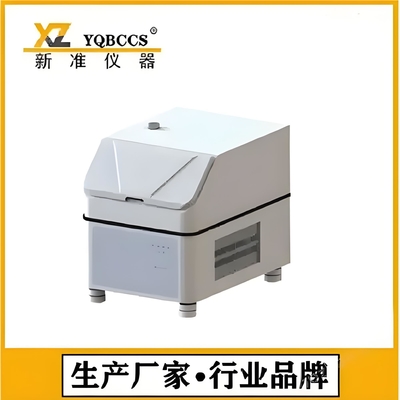

5097-HD Water Vapor Permeability Tester (Cup Method)

Product Attributes

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name	Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument
Display	LCD, Digital display
Units switch	Kgf, N. (Optional), Lbf
Display mode	LCD display, digital mode
Vibration Mode	Reciprocating
Movement Drive	Ball screw and servo motor
Customized Support	OEM ODM
Usage	Paper Testing Instrument
Features	High precision, easy operation, reliable performance
Controller	PLC (programmable logic controller)
Drop Test	Corners, edges, faces of sample
Display Method	Digital display
Time Display	To display time during test (s)
Usa Area	Cookware
Design Criteria	EN71 ANSI, UL, ASTM ISTA
Test Standards	ISO, ASTM, TAPPI, JIS, etc.
Control System	PLC Programmed Control
Test Space	600×800×800mm (can be customized)
Origin	China
Test Methods	Electronic, mechanical, manual
Weight	Customizable
Appearance Size	7000x2000x2300 (L × W × H) mm
Transmission Mode	Pneumatic device + reducer + release
Scan Mode	Single line
Use	Packaging Materials

Product Description

This product is based on the water vapor transmission test principle of the gravimetric method (weight gain method + weight loss method), and provides a wide range and high efficiency water vapor transmission rate testing for low, medium and high water vapor barrier materials. It is suitable for the water vapor transmission performance test of films, sheets, paper, fabrics, non-woven fabrics and related materials in the fields of food, medicine, medical equipment, and daily chemicals.

Test Standards

GB 1037, GB/T 16928, ASTM E96, ASTM D1653, TAPPI T464, ISO 2528, DIN 53122-1, JIS Z0208, YBB 00092003

Key Features

Based on the cup method test principle, it is a professional water vapor transmission rate (WVTR) test system for film samples, which can detect the water vapor transmission rate as low as 0.1g/m²*24h
The configured high-resolution weighing sensor provides excellent system sensitivity under the premise of ensuring high precision
The lifting and weighing of the moisture-permeable cup is controlled by a micro motor, and the data is accurate and reliable
The standard blowing wind speed can effectively prevent the formation of humidity gradient above the moisture-permeable cup and ensure the accuracy of the test
The system automatically resets before weighing to ensure the accuracy of each weighing, and supports a wide range of power access
The temperature and humidity test socket that can be quickly connected is convenient for users to perform quick calibration
Provide two quick calibration methods of standard film and standard weight to ensure the accuracy and versatility of the test data
Wide range, high precision, automatic temperature and humidity control, to meet the test under various test conditions
The precise mechanical design not only ensures the ultra-high precision of the system, but also greatly improves the detection efficiency
Multi-level user authority settings, test data integrity and other functions to meet GMP related test requirements (optional)
Test results support multi-format storage and data output
Support various functions such as convenient historical data query, comparison, analysis and printing

Standard Features

Item	Description
Test Range	0.1-10,000 g/m²•24h (Regular)
Test accuracy	0.01 g/m² 24h
System resolution	0.0001g
Temperature control range	15℃-55℃
Temperature control accuracy	±0.1℃
Humidity range	90%RH-10%RH note (standard 90%RH)
Humidity Control Accuracy	±1%RH
Standard wind speed	0.5-2.5 m/s (non-standard optional)
Sample size	Φ74mm
Permeable area	33 cm²
Sample quantity	1-3 (data are independent)
Sample thickness	≤3 mm (thicker need to add accessories)
Test volume	30L
Carrier gas	Compressed air/dry nitrogen (gas source provided by the user)
Connection size	Φ6 mm polyurethane tube
Dimensions	660mm (L) * 480mm (W) * 525mm (H)
Power supply	AC 220V 50Hz
Net weight	70Kg
