Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment

Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment
Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment

Large Image :  Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: 6010-HD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets per Month

Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment

Description
Thermocouple: Armored K-type (NiCr/NiAl) Fine-wire Thermocouple With A 0.5mm Diameter Sheath Timer: Adjustable Range: 0.01-99.99 Seconds
Diameter: Ø4.00±0.01mm Length: 6.00±0.03mm
Bevel Angle: 45 Degrees (both Ends) Mass (Pre-drilling): 0.58g±0.01g
Material: High-conductivity Electrolytic Copper Power Supply: AC 220V,50Hz,1KVA
Surface Finish: Fully Polished
Highlight:

Needle Flame Test Instrument

,

Flammability Testing Equipment

Flame Temperature Calibration Device

Product Description

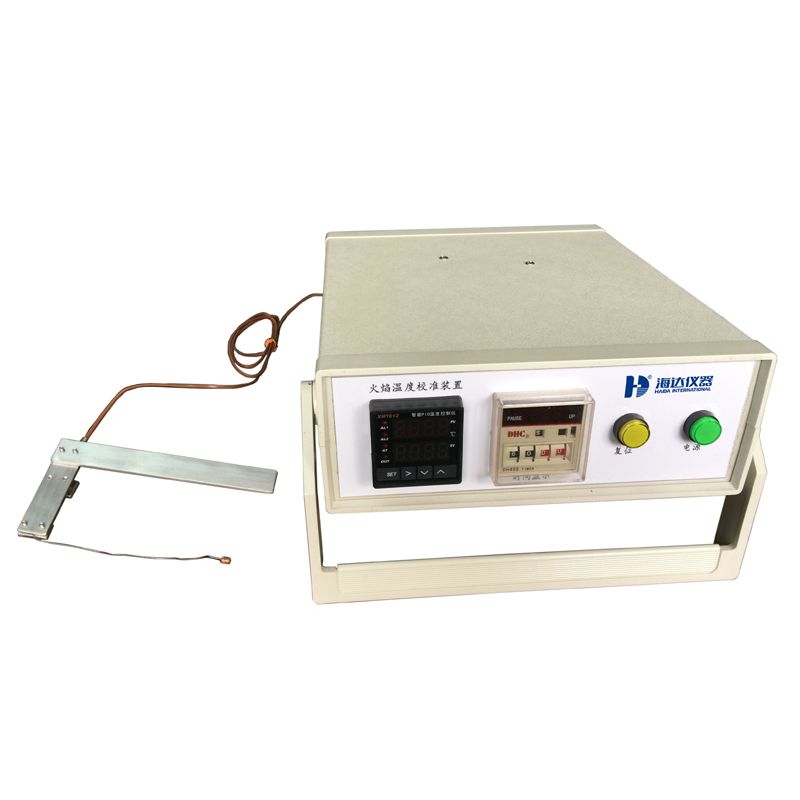

This calibration device is designed in accordance with IEC 60695-11-5 and GB/T 5169.5 standards for measuring the flame temperature of needle flame test instruments. During measurement, the copper block is positioned 6±0.5mm above the needle flame burner. The flame is ignited, and the time required for the copper block temperature to rise from 100°C±5°C to 700°C±3°C must be within 23.5±1.0 seconds. Three measurements are required, with natural cooling of the copper block to below 50°C between each test.
Note: Thermocouples are susceptible to damage above 700°C; thus, the burner must be removed immediately upon reaching this temperature.

Test Standard


IEC 60695-11-5: Fire hazard testing - Part 11-5: Test flames - Needle flame test method - Apparatus, confirmatory arrangement and guidance.
GB/T 5169.5: Test flames - Needle flame test method - Apparatus, confirmatory test arrangement and guidelines.

Product Specifications

Model 6010-HD
Thermocouple Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath.
Timer Adjustable range: 0.01-99.99 seconds.
Copper Block Specifications
Diameter Ø4.00±0.01mm
Length 6.00±0.03mm
Bevel Angle 45 degrees (both ends)
Mass (Pre-drilling) 0.58g±0.01g
Material High-conductivity electrolytic copper
Surface Finish Fully polished
Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment 1Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment 2Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment 3
Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment 4


Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment 5

Flammability Testing Equipment For Needle Flame Test Instruments / Burst Testing Equipment 6



After-Service:

Should any issues arise during your testing process, we guarantee:

Timely Response: A formal reply within 48 hours.

Swift Resolution: A proposed solution within 3 working days.

Comprehensive Support: Access to English operation manuals, instructional videos, and video conference assistance.





Why Choose Us?

Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.

Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.

Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.

Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection

FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
