Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Large Image : Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6015-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Description

Thermocouple:	Armored K-type (NiCr/NiAl) Fine-wire Thermocouple With A 0.5mm Diameter Sheath	Timer:	Adjustable Range: 0.01-99.99 Seconds
Diameter:	Ø9.00±0.01mm	Length:	19.14±0.02mm
Bevel Angle:	45±0.5°	Mass (Pre-drilling):	10.00g±0.05g
Material:	High-conductivity Electrolytic Copper	Surface Finish:	Fully Polished
Highlight:	GB/T 5169.15 Flammability Testing Equipment , ASTM D5207-03 Flammability Testing Equipment , IEC 60695-11-3 Flammability Testing Equipment

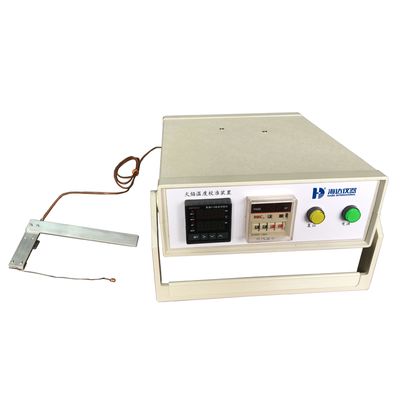

Flame Temperature Calibration Device 500W

This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.

Position the copper block 55±1mm above the needle flame burner. Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 54±2 seconds to validate the flame for testing.
Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.

ASTM D5207-03: Standard Practice for Confirmation of 20-mm (50-W) and 125-mm (500-W) Test Flames for Small-Scale Burning Tests on Plastic Materials. GB/T 5169.15: Fire Hazard Testing for Electric and Electronic Products - Part 15: Test Flames - 500W Flame Apparatus and Confirmational Test Methods.
IEC 60695-11-3: Fire hazard testing for electric and electronic products - Part 11-3: Test flames - 500W flames - Apparatus and confirmational test methods.

Model	6015-HD
Thermocouple	Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath.
Timer	Adjustable range: 0.01-99.99 seconds
Copper Block Specifications
Diameter	Ø9.00±0.01mm
Length	19.14±0.02mm
Bevel Angle	45±0.5°
Mass (Pre-drilling)	10.00g±0.05g
Material	High-conductivity electrolytic copper
Surface Finish	Fully polished

Moel6001-

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards 0
