Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests

Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests
Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests

Large Image :  Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: 6014-HD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets per Month

Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests

Description
Thermocouple: Armored K-type (NiCr/NiAl) Fine-wire Thermocouple With A 0.5mm Diameter Sheath Timer: Adjustable Range: 0.01-99.99 Seconds
Diameter: Ø5.50±0.01mm Length: 8.80±0.02mm
Bevel Angle: 45±0.5° Mass (Pre-drilling): 1.76g±0.01g
Material: High-conductivity Electrolytic Copper Surface Finish: Fully Polished
Highlight:

Adjustable Timer Flammability Testing Equipment

,

Accurate Flammability Testing Equipment

Flame Temperature Calibration Device 50W

Product Description

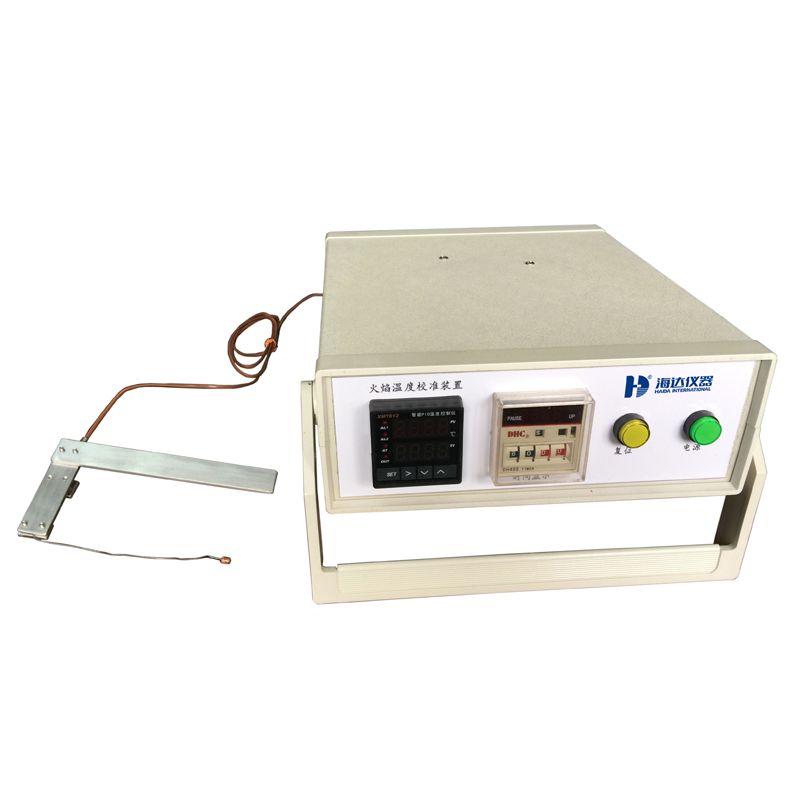

This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.

Calibration Procedure

Position the copper block 10±1mm above the needle flame burner. Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 44±2 seconds to validate the flame for testing. Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.

Product Specifications
Model 6014-HD
Thermocouple Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath
Timer Adjustable range: 0.01-99.99 seconds
Copper Block Specifications
Diameter Ø5.50±0.01mm
Length 8.80±0.02mm
Bevel Angle 45±0.5°
Mass (Pre-drilling) 1.76g±0.01g
Material High-conductivity electrolytic copper
Surface Finish Fully polished
