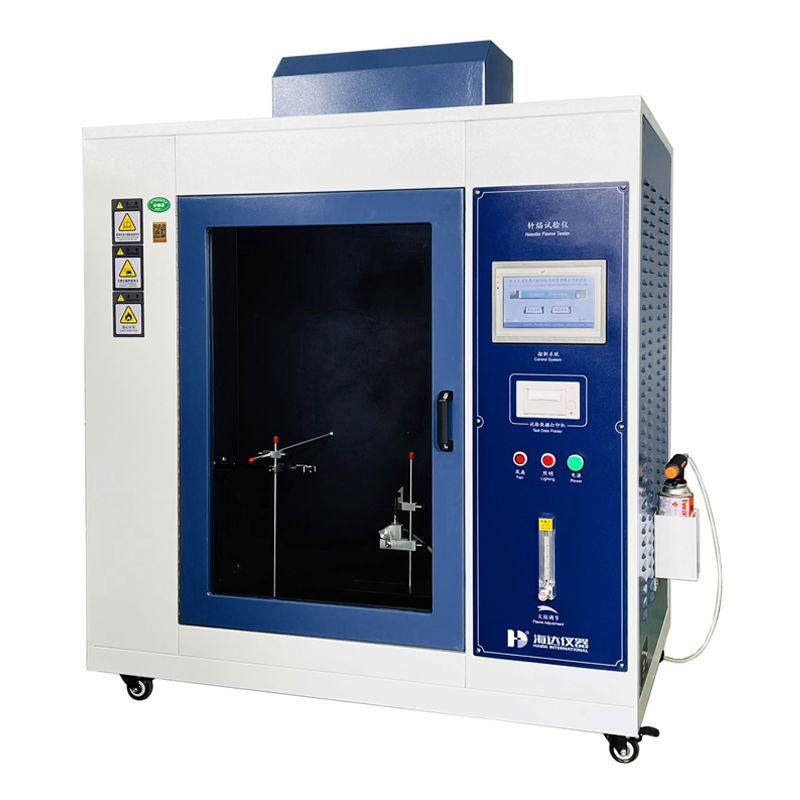

Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

Large Image : Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6012-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Touch Screen Needle Flame Testing Machine / Combustion Testing Equipment

Description

Chamber Volume:	≥0.5 M³, With Glass Observation Door	Internal Illuminance:	<20 Lux
Fuel:	Butane Gas (≥95% Purity); No Air Ingress Into Burner Tube	Flame Height:	Adjustable: 12mm±1mm (includes Measuring Gauge)
Drive Mechanism:	Motorized	Timer:	Adjustable Range: 0-999.9 Seconds; Configurable Ignition/duration Recording
Temperature Display:	Range: 0-1000°C; Resolution: 1°C	Power Supply:	AC 220V,50Hz,1KVA
Highlight:	Touch Screen Needle Flame Testing Machine , Needle Flame Testing Machine , Motorized Drive Needle Flame Testing Machine

Needle Flame Test Instrument

This instrument simulates small flames generated under fault conditions (e.g., leakage currents, overheating, poor contacts) to assess fire hazards. It is applied when glow-wire or horizontal-vertical flame tests are unsuitable for small components. If a sample ignites during glow-wire testing, the needle flame test further evaluates combustion risks. Suitable for parts of electrical/electronic products and household appliances (e.g., terminal blocks, centrifugal switches, rice cooker sockets).

IEC 60695-11-5, GB/T 5169.5, IEC 60884-1, GB 2099.1, VDE 0620, IEC 60335-1, GB 4706.1, UL 60065

Model	6012-HD
Chamber Volume	≥0.5 m³, with glass observation door
Internal Illuminance	<20 Lux
Fuel	Butane gas (≥95% purity); no air ingress into burner tube (user-provided)
Burner Specifications	Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm.
Flame Height	Adjustable: 12mm±1mm (includes measuring gauge).
Flame Temperature	100°C±5°C to 700°C±3°C in 23.5±1 seconds. K-type armored thermocouple (Ø0.5mm, imported); optional calibration device included.
Temperature Display	Range: 0-1000°C; Resolution: 1°C
Timer	Adjustable: 0-99 minutes 99 seconds; Resolution: 0.01s; Configurable ignition/duration recording.
Drive Mechanism	Motorized
Key Features	Automated control: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and user-friendly operation.
Power Supply	AC 220V, 50Hz
