ASTM D4151 Fabric Blanket Burning Flammability Test Equipment Blankets Flammability Tester

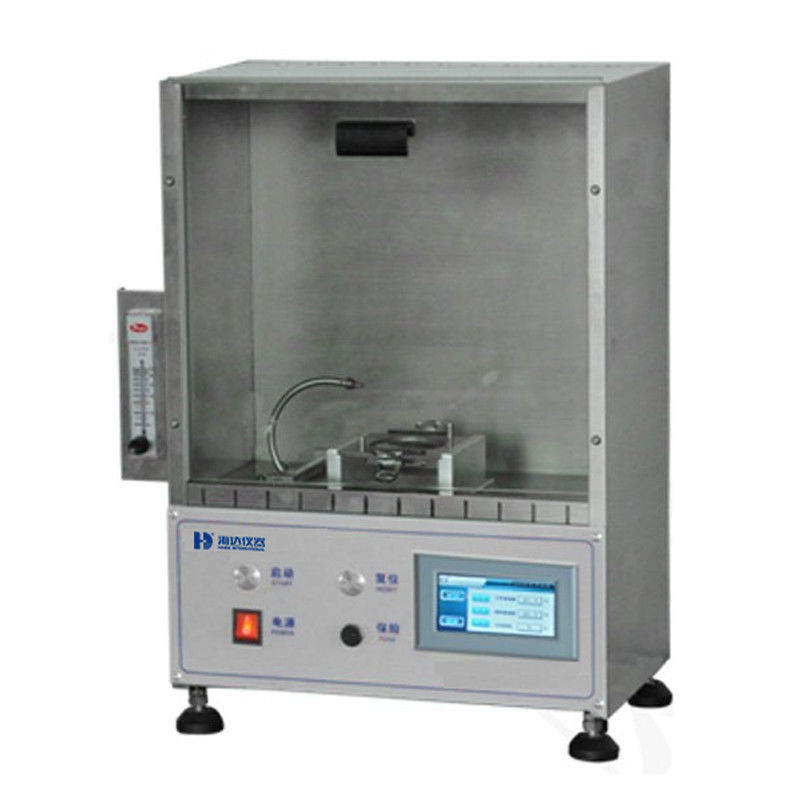

Large Image : ASTM D4151 Fabric Blanket Burning Flammability Test Equipment Blankets Flammability Tester

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6025-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

ASTM D4151 Fabric Blanket Burning Flammability Test Equipment Blankets Flammability Tester

Description

Control:	PLC + 5" Color Touchscreen	Burner:	US-made No.18 Needle (ASTM D4151-2010 §6.3-6.4 Compliant)
Auto-timing:	0.1s Resolution	Ignition Time:	0-99.99s Adjustable
Test Modes:	Timed Ignition/Flame Impact	Sample Holder:	ASTM D4151-2010 §6.2 Compliant
Gas:	Butane (chemically Pure)	Marker Thread:	11.7tex3 White Cotton
Weight:	30±5g	Dimensions:	600×400×370mm
Power Supply:	AC 220V, 50Hz

Blanket Flammability Tester

Blanket Flammability Tester evaluates the flame resistance and surface flame spread characteristics of blanket fabrics. The test method involves exposing specimens to a standardized flame for a specified duration, then assessing the burning degree, damage, or discoloration of standard test paper to grade the fabric's performance.

ASTM D4151 Standard Test Method for Flammability of Blankets

Model	6025-HD
Control	PLC + 5" color touchscreen
Burner	US-made No.18 needle (ASTM D4151-2010 §6.3-6.4 compliant)
ASTM-specified micro gas flow valve (0-50mL/min)
Chamber	520(H)×375(W)×220(D)mm stainless steel, 12×Ø12.7mm vents, glass window (ASTM D4151-2010 §6.1)
Auto-timing	0.1s resolution
Ignition time	0-99.99s adjustable
Test modes	Timed ignition/Flame impact
Brush device	0.41mm nylon bristles (20 strands/cluster, 4 clusters/25mm, 19mm length) per ASTM D4151-2010 §6.5
Sample holder	ASTM D4151-2010 §6.2 compliant
4.11 Includes 16mm flame/8mm ignition distance templates
Gas	Butane (chemically pure)
Marker thread	11.7tex3 white cotton
Weight	30±5g
4.21 Cloud data/control options (as above)
Dimensions	600×400×370mm
Power	AC220V/50Hz, 50W
