Lab Testing Equipment Flame Temperature Calibration Device 50W

Large Image : Lab Testing Equipment Flame Temperature Calibration Device 50W

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6014-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Lab Testing Equipment Flame Temperature Calibration Device 50W

Description

Thermocouple:	Armored K-type (NiCr/NiAl) Fine-wire Thermocouple With A 0.5mm Diameter Sheath	Timer:	Adjustable Range: 0.01-99.99 Seconds
Diameter:	Ø5.50±0.01mm	Length:	8.80±0.02mm
Bevel Angle:	45±0.5°	Mass (Pre-drilling):	1.76g±0.01g
Material:	High-conductivity Electrolytic Copper	Surface Finish:	Fully Polished
Highlight:	50W Flame Temperature Calibration Device , Lab Flame Temperature Calibration Device , Flame Temperature Calibration Device

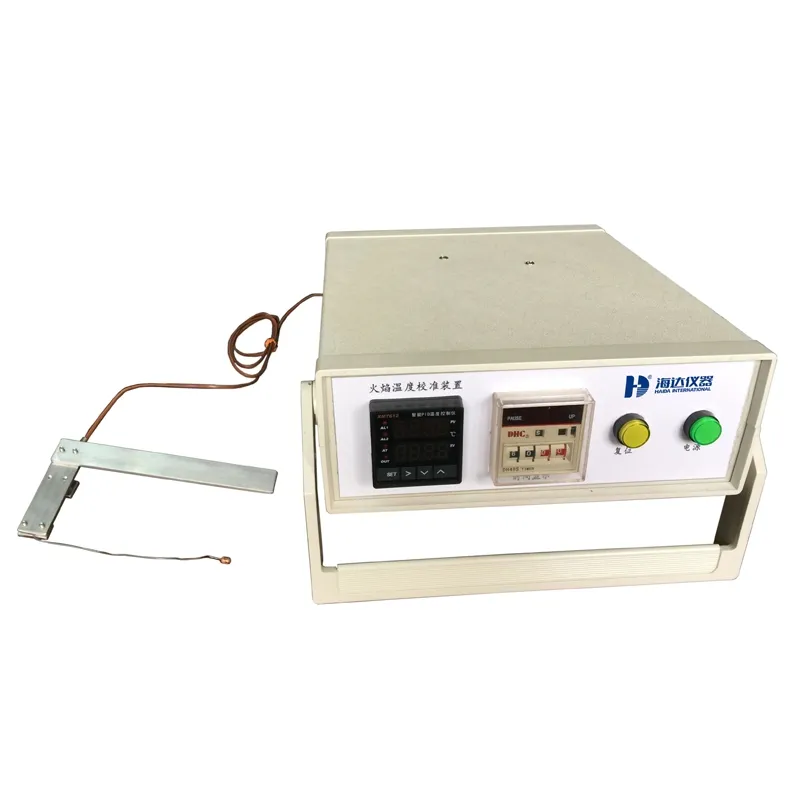

Flame Temperature Calibration Device 50W

This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.

Position the copper block 10±1mm above the needle flame burner. Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 44±2 seconds to validate the flame for testing. Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.

Model	6014-HD
Thermocouple	Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath
Timer	Adjustable range: 0.01-99.99 seconds
Copper Block Specifications
Diameter	Ø5.50±0.01mm
Length	8.80±0.02mm
Bevel Angle	45±0.5°
Mass (Pre-drilling)	1.76g±0.01g
Material	High-conductivity electrolytic copper
Surface Finish	Fully polished

Lab Testing Equipment Flame Temperature Calibration Device 50W 0
